200kg Rescue Load Wireless Remote Controlled Life Buoy

Product Description

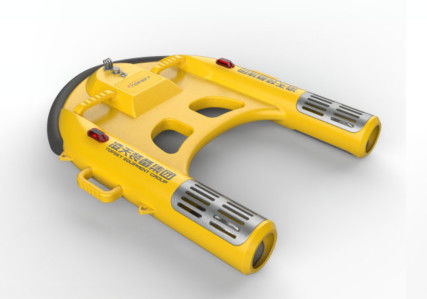

TS3 wireless remote-controlled life buoy

1. Overview

The wireless remote control intelligent power life buoy is a small surface-saving life-saving robot that can be operated remotely. It can be widely used in the rescue of falling water in swimming pools, reservoirs, rivers, beaches, yachts, ferries, and floods.

The remote control is realized through the remote control, and the operation is simple. The unloaded speed is 6m/s, which can quickly reach the person who fell into the water for rescue. The manned speed is 2m/s. There are high penetration signal warning lights on both sides, which can easily locate the position of the life buoy at night and in bad weather. The front anti-collision strip can effectively prevent the collision damage to the human body during the process of travel. The propeller uses a protective cover to prevent foreign objects from winding. The front side of the life buoy is equipped with a camera bracket, which can be installed with a camera to record rescue information. The life buoy has a built-in GPS system, which can realize precise positioning.

In the event of a water accident, a power life buoy can be put in, and the location of the person who has fallen into the water can be accurately located through GPS positioning, video recognition, manual identification, etc., and the remote control can be used to reach the position of the person who has fallen into the water to initiate rescue. Those who fall into the water are waiting for rescue, or bring the people back to a safe area through the power system, which has won precious time for rescue and greatly improved the survival rate of people who fell into the water. When the situation of a person falling into water is critical, the power life buoy can carry rescuers to quickly approach the person falling into the water for rescue. This kind of application saves the rescuer's precious physical strength and greatly improves the rescue efficiency. When rescue is needed at a long distance (outside the visible range), the power life buoy can cooperate with the drone to carry out three-dimensional rescue. This three-dimensional intelligent unmanned rescue system combining air and water greatly improves the scope of rescue and greatly enriches the rescue methods.

2. Technical specs

2.1 Dimensions: 101*89*17cm

2.2 Weight: 12Kg

2.3 Rescue load capacity: 200Kg

2.4 ★Maximum communication distance 1000m

2.5 No-load speed: 6m/s

2.6 Manned speed: 2m/s

2.7 Low-speed battery life: 45min

2.8 Remote control distance: 1.2Km

2.9 Working time 30min

3. Features

3.1 The shell is made of LLDPE material with good wear resistance, electrical insulation, toughness and cold resistance.

3.2 Fast rescue in the whole process: empty speed: 6m/s; manned speed (80Kg): 2m/s.

3.3 The gun-type remote control can be operated with one hand, the operation is simple, and the power life buoy can be remote-controlled accurately.

3.4 Realize ultra-long-distance remote control above 1.2Km.

3.5 Support GPS positioning system, real-time positioning, faster and more accurate positioning.

3.6 Support one-button auto return and over-range auto return.

3.7 Support double-sided driving, with the ability to rescue in the storm.

3.8 Support intelligent correction direction, more accurate operation.

3.9 Propulsion method: A propeller propeller is used, and the turning radius is less than 1 meter.

3.10 Use lithium battery, low-speed battery life is greater than 45min.

3.11 Integrated low battery alarm function.

3.12 High-penetration signal warning light can easily achieve sight line positioning at night or in bad weather.

3.13 Avoid secondary injury: The front anti-collision guards prevent collision damage to the human body during the advancement.

3.14 Emergency use: 1 key to boot, quick boot, ready to use when falling into water.

Product certification

Inspection and certification of National Fire Equipment Quality Supervision and Inspection Center

China Classification Society (CCS) Type Approval
