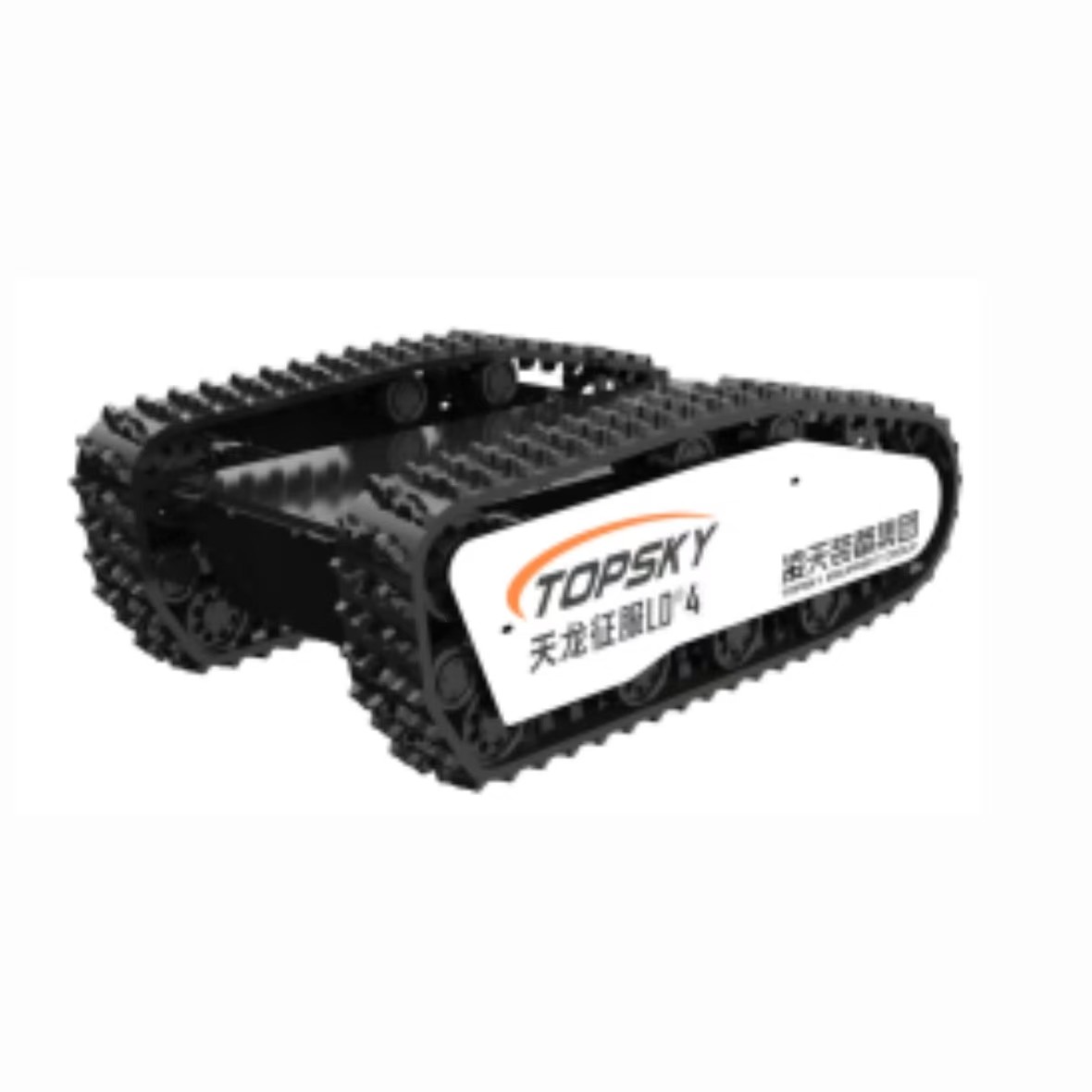

Medium Tracked Robot Chassis Optimal For Heavy Duty Applications
Medium Tracked Robot Chassis Optimal For Heavy Duty Applications Medium Tracked Robot Chassis Optimal For Heavy Duty Applications Medium Tracked Robot Chassis Optimal For Heavy Duty Applications Medium Tracked Robot Chassis Optimal For Heavy Duty Applications
Contact Now

Medium Tracked Robot Chassis Optimal For Heavy Duty Applications

Minimum Order Quantity : 2 Price : USD48000/PCS
Delivery Time : 5-8 WEEK DAYS Payment Terms : T/T
Place of Origin: CHINA Brand Name: TOPSKY

Detail Information
Highlight:

Heavy-Duty Tracked Robot Chassis

,

Medium Tracked Robot Chassis

Product Description

Overview:
The DRAGON-04 medium-sized tracked robot chassis is suitable for scenarios involving inspection and firefighting operations. The entire machine has undergone dustproof and waterproof processing, and it is equipped with standard control connectors. It supports various types of installations, enabling you to quickly build your ideal product.

Features:

It is suitable for environments such as mountains, jungles, and shrubs.
It can be customized and modified.

Specification:
Robot Machine:
1. Name: Medium sized tracked robot chassis
2. Model: DRAGON-04
3. Implement the fire industry standard: "GA 892.1-2010 Fire Robots Part 1 General Technical Conditions"
4. Protection level: Robot body protection level IP68
5. Power: Electric, standard battery is 20AH domestic lithium battery
6. Size: ≤ 1320mm in length, 800mm in width, and 465mm in height
7. Turning diameter: ≤ 1500mm
8. Weight: ≤ 285kg
9. Traction force: ≥ 2500N,
10. Maximum speed in a straight line: ≥ 1.81m/s, remote control continuously variable transmission
11. Straight running deviation: ≤ 0.30%
12. Braking distance: ≤ 0.35m (low-speed state)
13. Climbing ability: ≥ 90% (or 42 °)
14. Obstacle crossing height: ≥ 260mm
15. Roll stability angle: ≥ 40 degrees
16. Water wading depth: ≥ 500mm
17. Continuous walking time: 4h
18. Reliability working time: Through 16 hours of continuous stability reliability testing
19. Remote control distance: 1100M
20. Robot tracks: The tracks used for firefighting robots should be made of anti-static and high-temperature resistant rubber; The interior of the track is a metal skeleton; Equipped with track derailment protection design;
21. Control terminal: Handheld integrated remote control terminal
Optional Items:
1. Battery: 48V20AH (battery capacity can be customized according to needs)
2. Charger: Standard 10A; Optional 15A/30A
3. Remote control: standard MC6C; Optional: Handheld remote control, remote control box
4. Upper bracket: customized according to needs
5. Chassis customization: widening, raising, increasing speed, increasing power
6. Color: Customized color as needed (default black)
4.3 Intelligent selection
1. Obstacle avoidance: Ultrasonic obstacle avoidance/Laser obstacle avoidance
2. Positioning and Navigation: Laser Navigation/RTK
3. Control: 5G control/voice control/follow
4. Data transmission: 4G/5G/self-organizing network
5. Video observation: visible light/infrared night vision/infrared thermal imaging
6. Environmental testing: temperature, humidity/toxic and harmful gases/customized according to needs
7. Status monitoring: motor status monitoring/battery status monitoring/driver status monitoring
