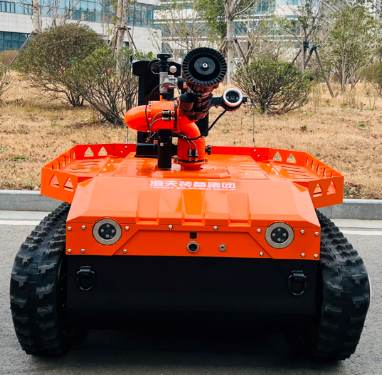

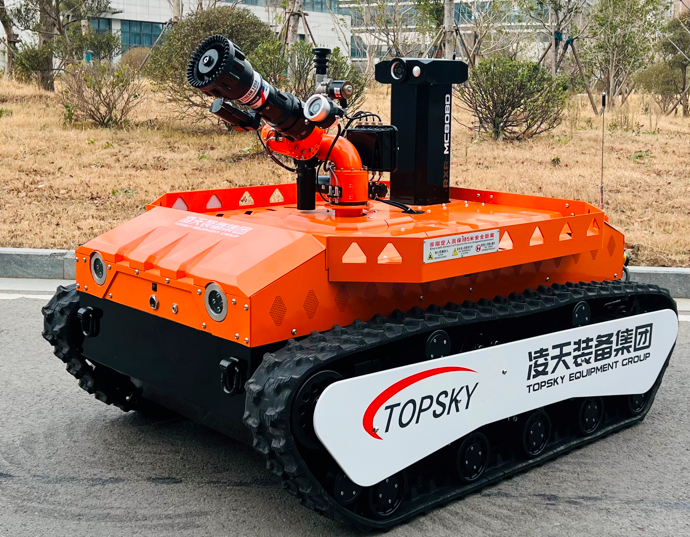

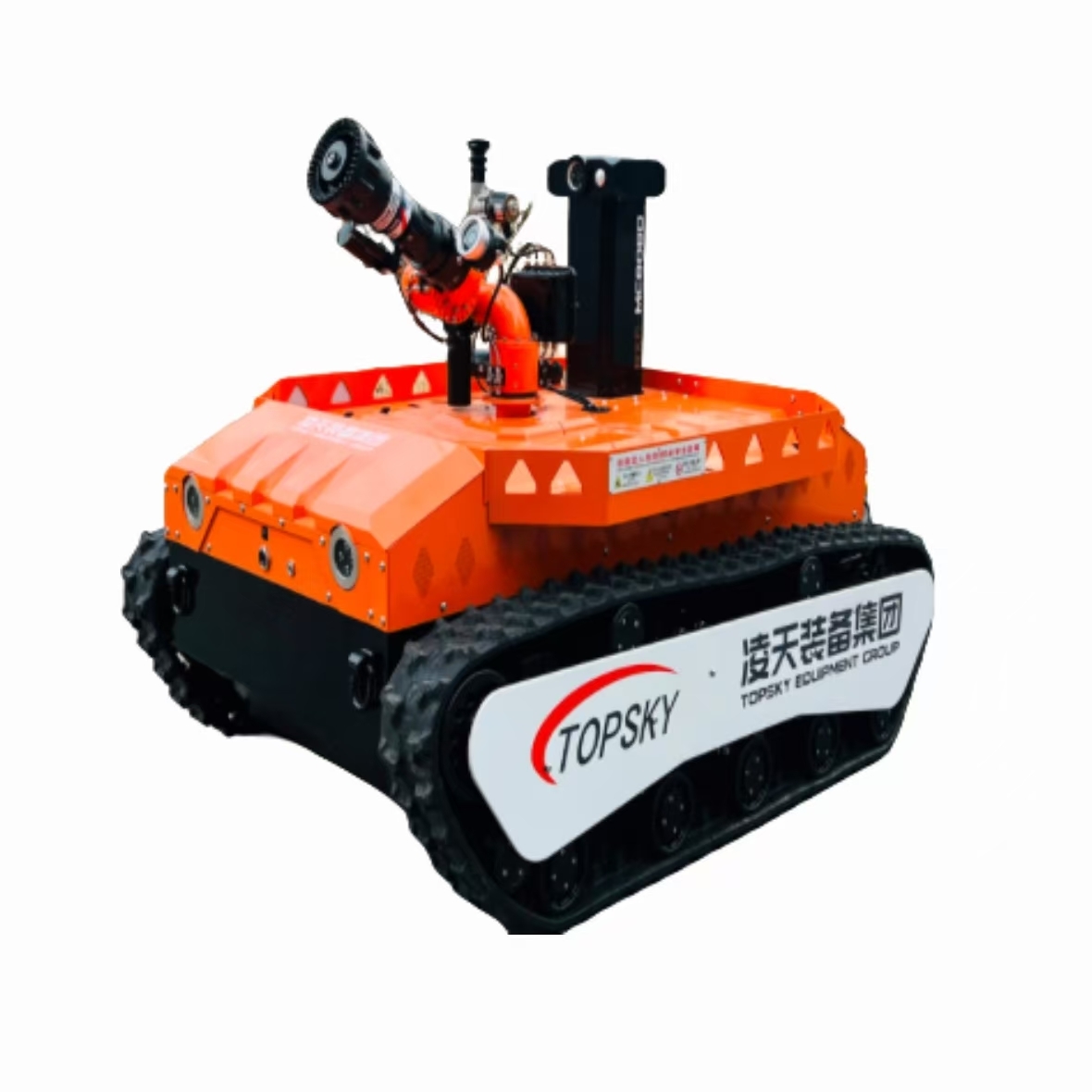

Explosion-proof fire-fighting and reconnaissance robot

Product Description

Overview
It can replace people in toxic (polluted), collapsed, strong radiation and other special dangerous rescue places, and can also remotely control robots for building demolition, concrete drilling and cutting, tunnel excavation, emergency rescue, metallurgical furnace slagging and lining removal , The maintenance of the rotary kiln and the decommissioning of nuclear facilities to avoid casualties;
Scope of application

1. Fire rescue for large petroleum and chemical companies
2. Tunnels, subways and other places that are easy to collapse and need to enter rescue and fire fighting
3. Rescue in an environment where flammable gas or liquid leaks and explosion may be extremely high
4. Rescue in environments with heavy smoke, toxic and harmful gases, etc.
5. Rescue in an environment where close fire is required and people are prone to casualties after approaching

Feaures

1. ★ In the same level of machines, the power is greater and the driving force is stronger;
2. ★ The robot can be turned on and off remotely, and the diesel engine is used as power, which is more powerful than battery-powered robots and has a longer battery life;
3. ★ Equipped with multi-functional break tool head, with multiple operation modes such as cutting, expanding, squeezing and crushing;
4. ★ Environmental detection function (optional): The robot system is equipped with an environmental monitoring module to detect on-site smoke and dangerous gases;

Technical parameters:


Power: Electric, ternary lithium battery

2. Dimensions: ≤ Length 1305mm × Width 800mm × Height 1065mm

3. Turning Diameter: ≤ 1425mm

4. Weight: ≤ 490kg

5. Traction Force: ≥ 3800N

6. Dragging Distance: ≥ 80m (dragging two DN80 full water hoses)

7. Water/Foam Flow Rate: ≥ 81.4L/s water, ≥ 81.6L/s foam

8. Maximum Straight Line Speed: ≥ 1.81m/s, remote control with stepless speed change

9. Straight Travel Deviation: ≤ 0.30%

10. Braking Distance: ≤ 0.16m

11. Climbing Ability: ≥ 83.9% (or 40°)

12. Obstacle Crossing Height: ≥ 240mm

13. Mechanical Arm Load Capacity: Rated to lift 25KG, maximum 50KG

14. Side Tilt Stability Angle: ≥ 40 degrees

15. Water Wading Depth: ≥ 500mm

16. Continuous Travel Time: 2h

17. Reliability Working Time: Passed 16-hour continuous stability and reliability test

18. Remote Control Distance: 1110m

19. Video Transmission Distance: 1110m

Company Introduction

Beijing Topsky Intelligent equipment Group Co.,Ltd.. (stock code: 836307) was founded in 2003, committed to making the world safer with innovative equipment, and determined to become a continuous leader in global high-end safety equipment.
Our company has independent R&D and technology promotion capabilities, and has one R&D and production building. Headquartered in Jinqiao Industrial Base, Zhongguancun High-tech Park, it is a national high-tech enterprise with a registered capital of RMB 46,514,300. Our company has independent R&D and manufacturing capabilities. Located in Beijing Economic Development Zone, the 3-story R&D building covers an area of 1,500 square meters, the production building is 1,800 square meters, and the third-phase production building is nearly 3,000 square meters under construction.
Our innovative technologies, services and systems are dedicated to serving the firefighting, law enforcement agencies, safety supervision bureaus, coal mines, petrochemicals, and armed police in many fields. It involves the research and development of high-end equipment such as drones, robots, unmanned ships, special equipment, emergency rescue equipment, law enforcement equipment, and coal mine equipment.
So far, many products have been exported to more than 10 countries.
