All-terrain explosion-proof fire-fighting and reconnaissance robot

Product Description

Overview

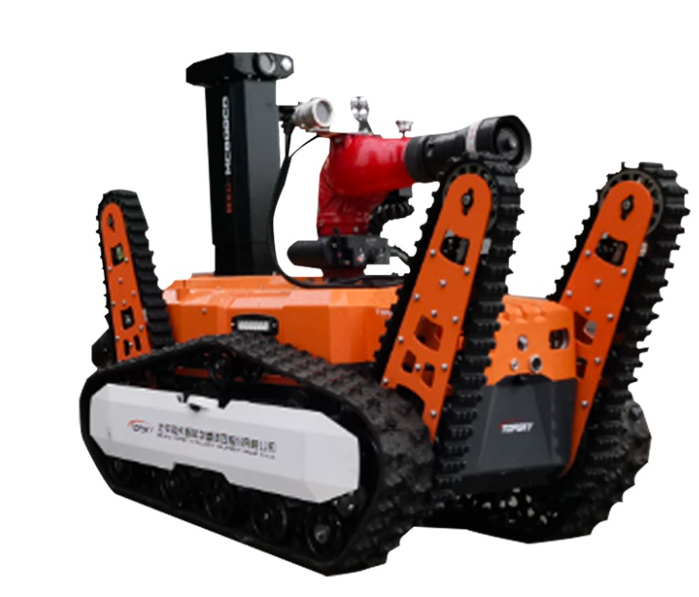

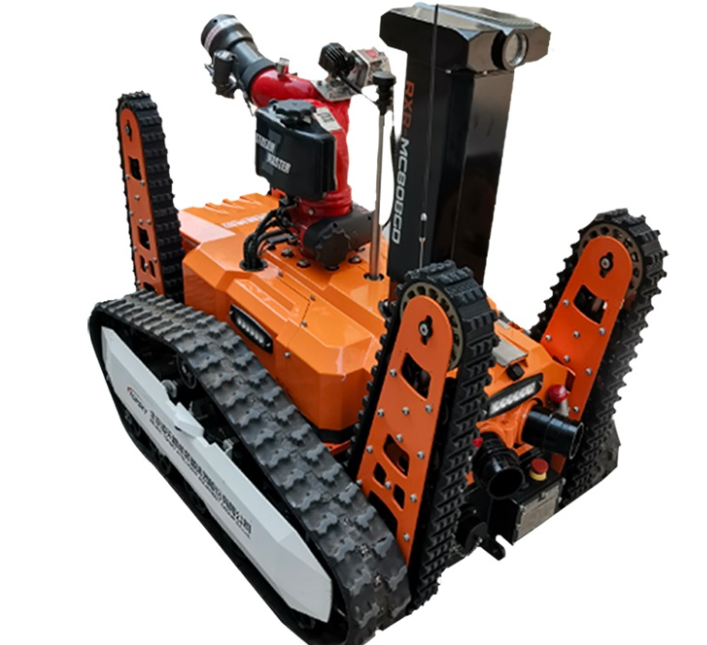

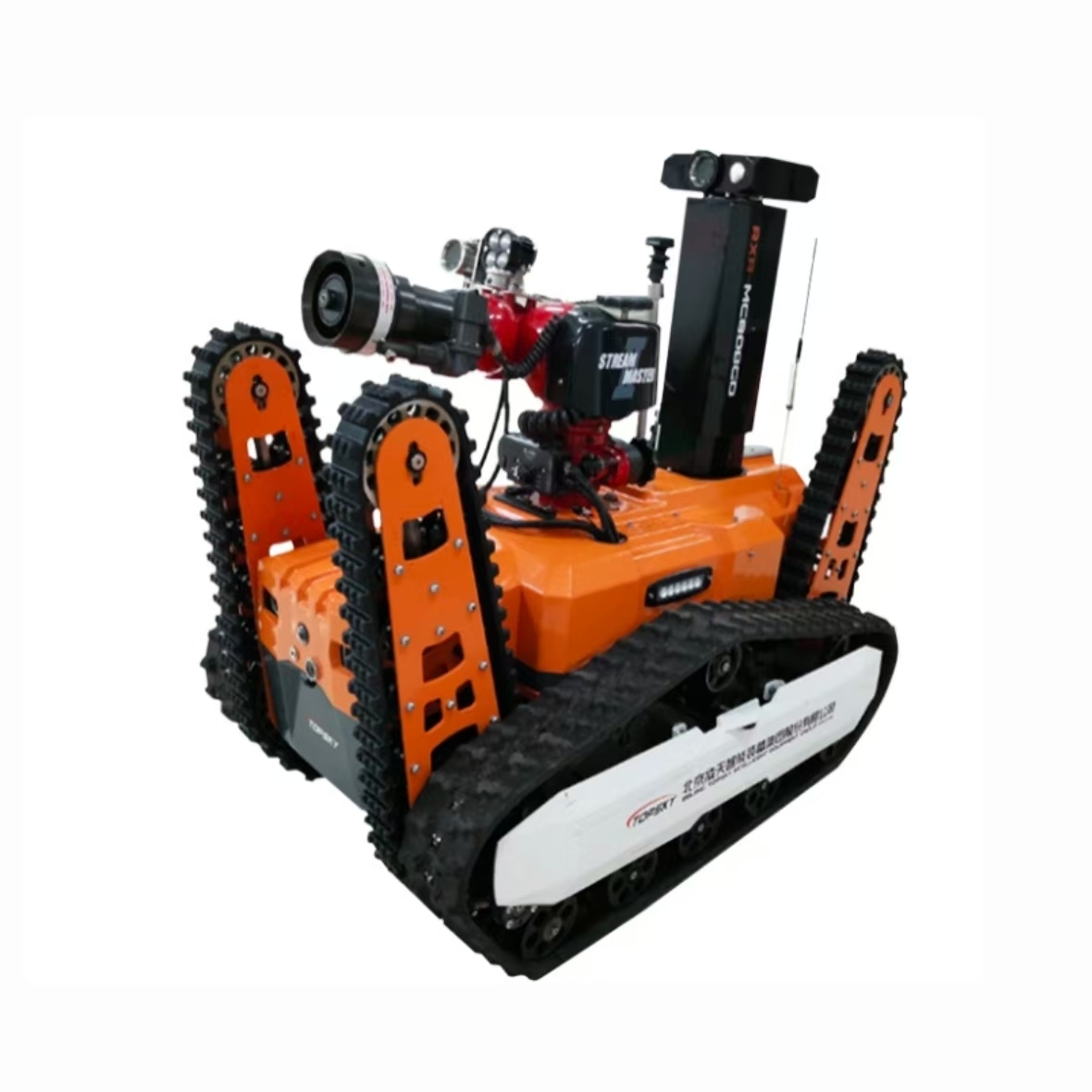

The RXR-MC80BGD explosion-proof fire-fighting and extinguishing robot, as a type of special robot, uses lithium battery power as its power source and is remotely controlled via wireless remote control for long-distance operation of the fire-fighting robot. It can be used in various large petrochemical enterprises, tunnels, subways, etc., where there are increasing hazards such as oil and gas leakage and explosion, tunnel and subway collapses, etc. The fire-fighting robot plays a crucial role in emergency rescue operations and is a specialized equipment that replaces firefighters in rescue operations in hazardous chemical fires or thick smoke fire scenes. This product has functions such as swinging arm obstacle clearance, fire extinguishing, audio and video reconnaissance, toxic and harmful gas reconnaissance, and disaster area environment reconnaissance.
Scope of application

1. Fire rescue for large petroleum and chemical companies
2. Tunnels, subways and other places that are easy to collapse and need to enter rescue and fire fighting
3. Rescue in an environment where flammable gas or liquid leaks and explosion may be extremely high
4. Rescue in environments with heavy smoke, toxic and harmful gases, etc.
5. Rescue in an environment where close fire is required and people are prone to casualties after approaching

Feaures

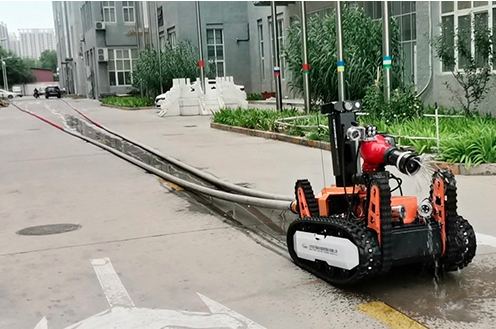

The robot is designed with wireless remote control. The remote control unit and the monitor are either integrated or separate. It can display real-time information such as battery status, internal conditions, robot status, on-site temperature and humidity, and alarm information about toxic and harmful gas concentrations, controlling the robot's movement such as forward, backward, and turning. It has remote reconnaissance capabilities. The body is equipped with three types of environmental perception devices and cloud platform control equipment, including an elevation and rotation cloud platform, high-definition cameras, thermal imaging cameras, and gas sensors. It can also be linked with sound and light alarm modules to alert firefighters or the public, effectively avoiding danger. After effectively obtaining the fire source information through remote reconnaissance means, the robot is equipped with a high-power motor that can help firefighters drag fire water bags to the dangerous fire source area for extinguishing, and can carry various domestic and foreign types of fire water bags, and can remotely control the release of water or foam. Based on the pickup module and speaker module equipped, it picks up the sounds of the on-site environment. Even if the firefighters are not close to the fire scene, they can hear the cries for help from the people at the rescue site through the speaker module and have a live conversation with the people at the scene.

Technical parameters:


Power: Electric, ternary lithium battery

2. Dimensions: ≤ Length 1305mm × Width 800mm × Height 1065mm

3. Turning Diameter: ≤ 1425mm

4. Weight: ≤ 490kg

5. Traction Force: ≥ 3800N

6. Dragging Distance: ≥ 80m (dragging two DN80 full water hoses)

7. Water/Foam Flow Rate: ≥ 81.4L/s water, ≥ 81.6L/s foam

8. Maximum Straight Line Speed: ≥ 1.81m/s, remote control with stepless speed change

9. Straight Travel Deviation: ≤ 0.30%

10. Braking Distance: ≤ 0.16m

11. Climbing Ability: ≥ 83.9% (or 40°)

12. Obstacle Crossing Height: ≥ 240mm

13. Mechanical Arm Load Capacity: Rated to lift 25KG, maximum 50KG

14. Side Tilt Stability Angle: ≥ 40 degrees

15. Water Wading Depth: ≥ 500mm

16. Continuous Travel Time: 2h

17. Reliability Working Time: Passed 16-hour continuous stability and reliability test

18. Remote Control Distance: 1110m

19. Video Transmission Distance: 1110m
