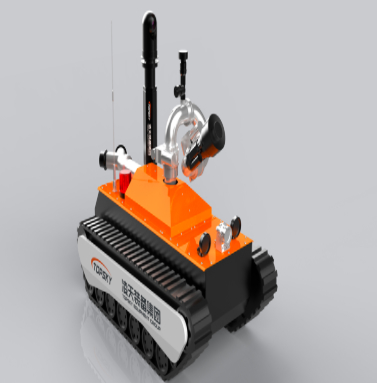

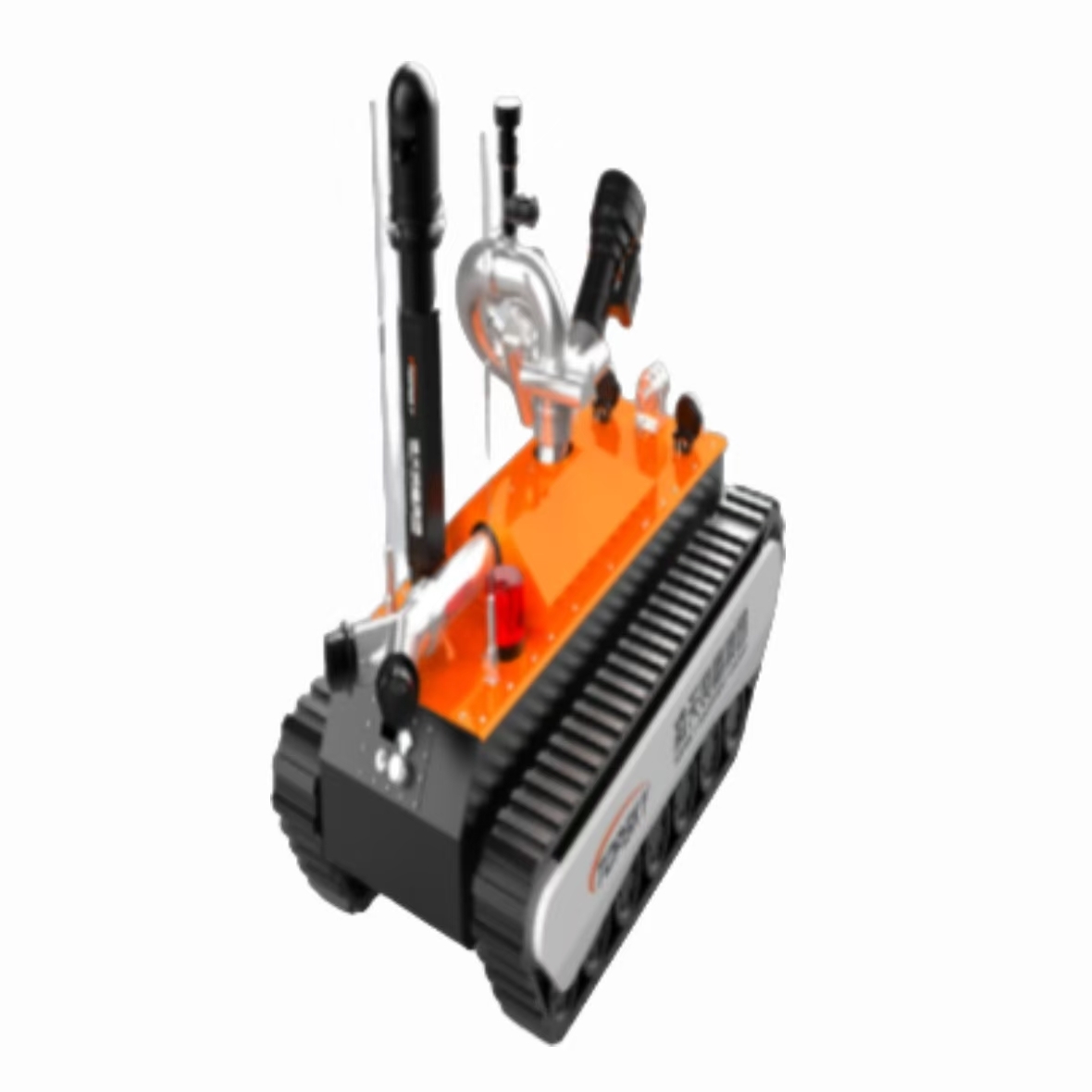

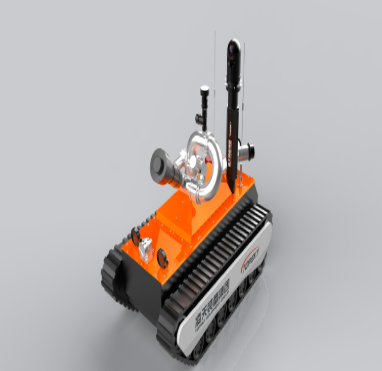

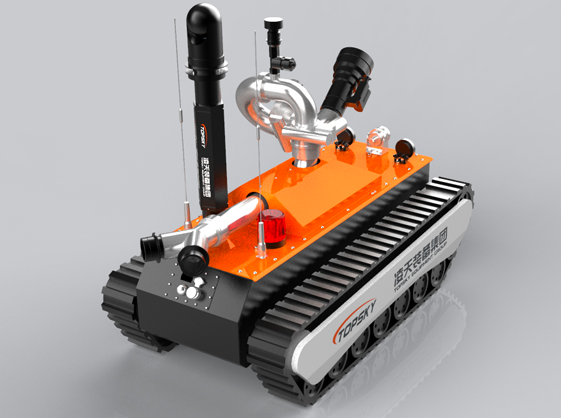

Firefighting fire-extinguishing robot

Product Description

Overview
1. Main functions: The crawler-type explosion-proof robot chassis uses lithium battery power as the power source and is controlled remotely via wireless control. It can be equipped in various forms and its in-place rotation design enables more flexible operation.
2. Application scenarios: It can be used in emergency rescue operations. Firefighting robots play a crucial role in such operations, serving as specialized equipment to replace firefighters in rescuing from hazardous chemical fires or smoke-filled fire scenes.
Scope of application

1. Fire rescue for large petroleum and chemical companies
2. Tunnels, subways and other places that are easy to collapse and need to enter rescue and fire fighting
3. Rescue in an environment where flammable gas or liquid leaks and explosion may be extremely high
4. Rescue in environments with heavy smoke, toxic and harmful gases, etc.
5. Rescue in an environment where close fire is required and people are prone to casualties after approaching

Feaures

1. High traction
2. High maneuverability
3. High integrated detection and inspection
4. High integrated pan-tilt unit
5. High speed
6. High explosion-proof rating
7. High protection rating
8. High intelligent functions
9. Cloud platform
10. Multi-functional
11. Lightweight
Technical parameters:

1, High explosion protection level

Overall rating: Ex d ibIIB+H2T6 Gb

Battery explosion protection level: Exd[ib] II CT6Gb

2. High protection level

Overall protection level: IP67

Chassis protection level: IP68

3. Fast travel speed

Reaches 6.51 km/h, which is 3 times higher than industry standards.

4. Versatile functionality

Equipped for firefighting, reconnaissance, transportation, and especially for transporting rescue equipment and supplies (such as hoses, gas masks, positive pressure air respirators, firefighting suits, and breaking tools).

5. Laser obstacle avoidance

Detects up to 50 meters; operates at half speed within a 5-meter range, stops within 2 meters.

6. Mechanical arm preset positions and reset function

3 quick preset positions

1 single-button reset function

7.Multiple degrees of freedom for the mechanical arm (6 in total)

Company Introduction

Beijing Topsky Intelligent equipment Group Co.,Ltd.. (stock code: 836307) was founded in 2003, committed to making the world safer with innovative equipment, and determined to become a continuous leader in global high-end safety equipment.
Our company has independent R&D and technology promotion capabilities, and has one R&D and production building. Headquartered in Jinqiao Industrial Base, Zhongguancun High-tech Park, it is a national high-tech enterprise with a registered capital of RMB 46,514,300. Our company has independent R&D and manufacturing capabilities. Located in Beijing Economic Development Zone, the 3-story R&D building covers an area of 1,500 square meters, the production building is 1,800 square meters, and the third-phase production building is nearly 3,000 square meters under construction.
Our innovative technologies, services and systems are dedicated to serving the firefighting, law enforcement agencies, safety supervision bureaus, coal mines, petrochemicals, and armed in many fields. It involves the research and development of high-end equipment such as drones, robots, unmanned ships, special equipment, emergency rescue equipment, law enforcement equipment, and coal mine equipment.
So far, many products have been exported to more than 10 countries.
