|Place of Origin:||China|
|Minimum Order Quantity:||1set|
|Packaging Details:||Aluminium case|
|Working Pressure:||1.0-1.4mpa||Chassis Clearance:||100mm|
|Obstacle Climbing:||550mm||Control Distance:||1000m|

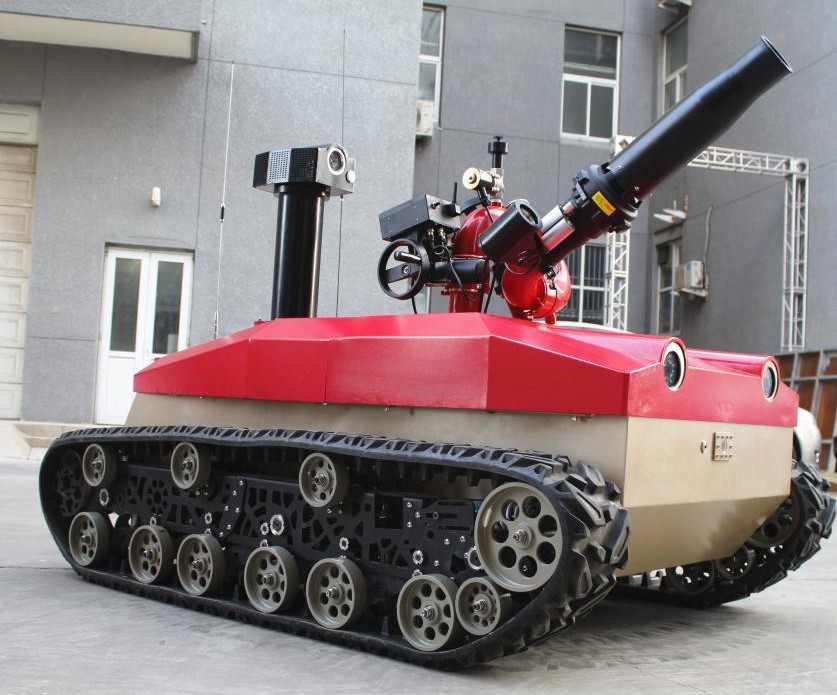

RXR-MC80BD explosion-proof Firefighting robot is designed to adapt to various complex ground in the rescue environment by using high temperature resistance track & anti shock chassis design. Integrated environment detection device could detect the environment data at firefighting scene. The robot is composed of four parts: the robot, the fire cannon, the environment detection device and the remote control box. Robot can enter into dangerous, disaster prone sites such as flammable, explosive, toxic, anoxic and dense smoke, and implement effective fire and rescue, chemical detection and fire reconnaissance.
1. Robot adopts the design of the anti-shock chassis. High temperature resistance track is built with metal inner ring, can still keep walking even when the outer rubber melts at ultra high temperature.
2. data and video are transmitted by encrypted double channels, communication distance reaches far, anti-jamming ability is strong, and wireless control distance is 700 meters.
3. the large capacity power battery and DC dual motor are used, the modular distributed design is used, and the maneuverability is high.
4. strong power, can drag two 75 meters DN80 water belt walking.
5. the robot adopts a double water supply system, and the water feeder has a universal structure to prevent the water belt from knot.
6. fire cannon remote control free strafe,jet, spray continuous adjustable.
7. robot automatically initiate cooling treatment.
8. carry environment detection platform, can detect: temperature, humidity, multi gases.
9. automatic obstacle notice, come front obstacles in the scope of 2meters, automatic stop forward.
10. has wireless audio communication function, can collect field sound remotely, so as to understand the situation of the trapped people.
11. infrared temperature measurement sensor to measure the field temperature (-50-355 C), interior equipped with temperature measuring function to anschauung the internal temperature.
12. explosion-proof and waterproof design, suitable for petroleum and petrochemical, high risk environment operation.
13. Equipped with GPS locate function to allow Internet communication, can use the Internet to achieve data upload and view.
|weight||730kg||Track||High TEMP resistance Track|
|Speed||0-1.2m/s||Climb ability||30°, lateral stability angle 30°|
|Motor||1.76kw*2||Driving light||DC12V 20W|
|Work time||3-6hrs||Obstacle crossing||200mm|
|Battery||48V 200Ah||Charging time||6-8Hrs|
|Camera||DC 12V lens: 6mm||Wireless control||700M|
|Spray angel||≥120°||range||Horizontal 80M/ Vertical 30-40M|
|Flow||80L/S-80LPS/4800LPM||Control mode||Wireless control|
|Working pressure||0.8-1.2(Mpa)Max 1.4MPa||Water inlet||2*DN80|
|Elevation angle||0~90°；longitude:135°||Self cooling||Water curtain protection|
|screen||DC12V, 40W, 12inch, resolution:1280*800|
