Backpack Remote Transport Forest 4 Mpa High Pressure Fire Fighting Pumps

Minimum Order Quantity : 1set Packaging Details : Aluminium case
Delivery Time : 30days Payment Terms : T/T
Supply Ability : 100sets/month
Place of Origin: China Brand Name: TOPSKY
Model Number: LD-130-2.0

Detail Information

Overall Size: 460mm*370mm*670mm Inlet Diameter: 25mm
Weight: 25kg Working Pressure: 4MPa
Range (water): 15M Maximum Suction Range: 4.6m
High Light:

ODM high pressure fire fighting pumps

,

4 mpa high pressure fire water pump

,

4 mpa high pressure fire fighting pumps

Product Description

Backpack remote transport high-pressure forest fire pump

Product Background:
In recent years, forest and grassland fires have gradually increased, affected by natural weather and forest environment, forest fires have the characteristics of strong emergency, difficult fighting and difficult control in a short time, which not only destroys forest resources, ecological environment and causes serious ecological and environmental problems. As we all know, forest fire fighting equipment is the basic element of the comprehensive prevention and control ability of forest fire prevention, and it is the equipment support for the scientific, mechanized and intelligent realization of forest fire prevention.
However, most of China's forest areas are located in remote forest areas. These areas are not only faced with problems of inconvenient transportation, backward equipment and scattered personnel organization, but also a large area of forest area coverage makes conventional fire equipment completely play a role.



Overview

Negative remote transmission high pressure forest fire pump is an ultra-light pump group developed to forest fire extinguishing. The pump group adopts Honda engine and diaphragm pump. The whole pump set is light in weight, compact structure, small floor area and good stability. Back negative + hand pull type is easy to carry. Operation with simple users only need simple training to be skilled. It can be used for forest fire fighting to deliver water from a long distance to the fire site for fire fighting. The negative remote transmission of high pressure forest fire pump is also suitable for fire fighting in small and medium towns, rural factories and other fire trucks that cannot reach in time or go deep to the fire center.

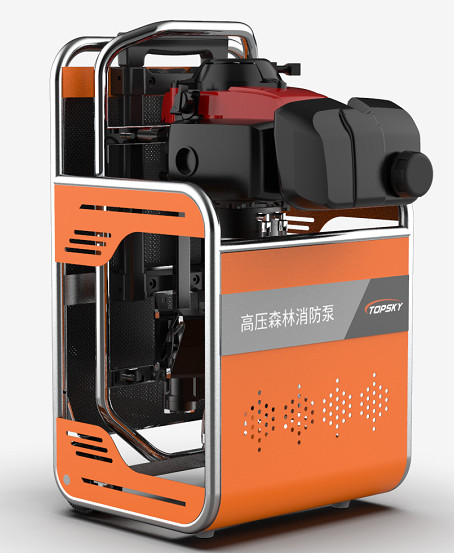

Backpack Remote Transport Forest 4 Mpa High Pressure Fire Fighting Pumps 0

Scope of application

l Grassland fire extinguishing

l Forest fire protection

l Mountain fire extinguishing

l Urban fire extinguishing

Feaures

1, ★ Self-suction foam unit

The unique self-suction foam device realizes the adjustment of water and foam mixing ratio between 0-3%, and can realize the rapid transformation of water beating and foam, and deal with different occasions.

2,★ circulating water cooling system

The circulating water cooling system reduces the high temperature between the engine and the reducer, keeps the high pressure forest fire pump sustainable, and reduces the adverse impact of high temperature.

3,★ Hand-pull type, electric type dual start

Electric start, one-button start, simple operation; combined with hand-pull start, double guarantee.

4, ★ Pull + Backcombination

Hand-pull + backlight is equipped with elastic casters, hand-pull rod and back strap, easy to carry, simple and effort, and easy transportation, which can deal with mountain, mud and other complex roads.

Technical parameters:

I. Technical specifications of the water pump:

1,★ pump weight: 6.8kg

2,★ maximum pressure: 4MPa

3,Standard flow rate: 40L/min

4,Range (water): 15m

5,★ range (foam): 10m

6,★ Foam mixing ratio: 0-3%

7,Lift: 350m(vertical height)

8,Maximum suction range: 4.6m

9,Horizontal conveying distance: 15km

10,Ininlet diameter: 25mm

11,Outlet water diameter: 25mm

12,Total weight: 25kg

13,Machine size (length, width and height): 460mm*370mm*670mm

II. Engine technical specifications:

1, engine model: Honda GXH50

2, engine type: horizontal bar, forced air cooling, 4-stroke

3, displacement: 49cc

4, maximum power: 2.1HP

5, startup mode: hand-pull type and electric type double start

Backpack Remote Transport Forest 4 Mpa High Pressure Fire Fighting Pumps 1

product configuration:



SL Name: Unit: Qty SL Name: Unit: Qty
  •
High-pressure forest fire-fighting pump EA 1 6 Back frame EA 1
  •
Water pipe with filter Sets 1 7 Battery: EA 1
  •
DC-jet gun EA 1 8 Packaging box EA 1
  •
Foam-foam gun EA 1 9 Instructions EA 1
  •
Forest fire protection hose EA 1 10 Qualification Certificate EA 1
