500us Pulse Width Non Linear Junction Detectors , EOD Non Linear Detector

500us Pulse Width Non Linear Junction Detectors , EOD Non Linear Detector

    • 500us Pulse Width Non Linear Junction Detectors , EOD Non Linear Detector
    • 500us Pulse Width Non Linear Junction Detectors , EOD Non Linear Detector
    • 500us Pulse Width Non Linear Junction Detectors , EOD Non Linear Detector
  • 500us Pulse Width Non Linear Junction Detectors , EOD Non Linear Detector

    Product Details:

    Place of Origin: China
    Brand Name: TOPSKY
    Model Number: FJT-C-S6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Packaging Details: Export standard
    Payment Terms: L/C, T/T
    Supply Ability: 50 Sets/Month
    Contact Now
    Detailed Product Description
    Name: EOD Equipment/ Good Quality Factory Price Non Linear Junction Detector FJT-C-S6 Transmitter Range: 2400.5MHz -- 2485.5MHz
    Signal Form: Pulse Duty Cycle Of 5% Pulse Width: 500us
    Transmitter Power: 3.7W(peak) Second Harmonic Receiver Frequency: 4801MHz -- 4971MHz
    Second Harmonic Receiver Sensitivity: -140dBm Third Harmonic Receiver Frequency: 7201.5MHz -- 7456.5MHz
    Working Time: More Than 3hours

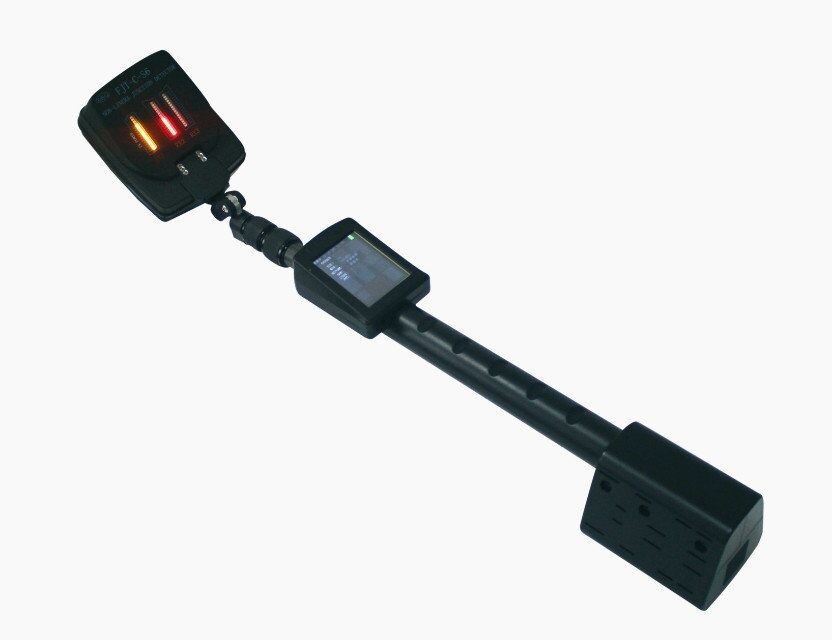

    EOD Equipment/ Good quality factory price Non Linear Junction detector FJT-C-S6



    1.Overview



    FJT-C-S6 non-linear junction detector is used for search and location of electronic devices both in active and switch-off state. The detector operation is based on the property of semiconductor components to generate a harmonics response when radiated by a microwave probing signal.

    FJT-C-S6 non-linear junction detector can automatically find the best reception frequency channel without interference, it can be used in a complex electromagnetic environment. Power output can be automatically adjusted to facilitate the work of the operating personnel to the maximum extent.

    FJT-C-S6 can simultaneously detect semiconductors and metals, such as remote control, mobile phones, cameras, listening devices, transmitters and so on.

    2.Specification

    1. Transmitter range:2400.5MHz -- 2485.5MHz

    2. Signal form: Pulse duty cycle of 5%

    3. Pulse width: 500us

    4. Transmitter power:3.7W(peak), power error: ± 15%.

    5. Second harmonic receiver frequency: 4801MHz -- 4971MHz

    6. Second harmonic receiver sensitivity:-140dBm

    7. Third harmonic receiver frequency: 7201.5MHz -- 7456.5MHz

    8. Third harmonic receiver sensitivity: -140dBm

    10. Working time: more than 3hours

    11. Charge time:2 hours

    12. Weight:About 1700g

    13. Size:680*130*118mm

    Extended size:1400x130x118mm
