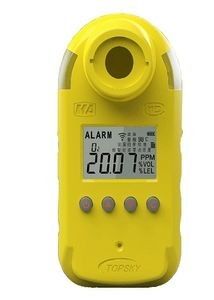

Portable Oxygen Level Detector , OLED Display Single Oxygen Measurement Device

Portable Oxygen Level Detector , OLED Display Single Oxygen Measurement Device

Portable Oxygen Level Detector , OLED Display Single Oxygen Measurement Device

Product Details:

Place of Origin: China
Brand Name: TOPSKY
Model Number: CYH25

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Export standard
Supply Ability: 2000 Sets/Month
Contact Now
Detailed Product Description
Name: Portable Gas Detector/ Single Portable O2 Oxygen Detector Sensors: Electrochemical Sensors (O2 )
Range: 0~25% Accuracy: 0.1%
Power Source: 1500mAH Lithium Battery ;rechargeable Battery Protection Grade: IP54

Portable Gas Detector/ Single portable O2 oxygen Detector



Applications:



Portable O2 detector is an intrinsically safe and explosion-proof instrument and is designed to deter O2.

Portable O2 detector is a low-cost, maintenance-free single gas monitor designed to protect personnel from dangerous O2 gas exposure in the most extreme conditions. Despite its compact size, the Portable O2 detector includes features usually found only in larger multi-gas monitors including a large, OLED display, internal audible/visual alarms and simple push-button operation.



The monitor continuously displays ambient combustible



gas readings and will alert the user when gas concentrations exceed the preset low or high levels. Added features include adjustable alarm setpoints, calibration gas values, and choice of text-only display selected





by the user through a simple, push-button routine. Portable O2 detector also has a peak/hold feature to show the highest reading during a shift and includes a special flip-cap calibration adapter for quick and simple calibration. Portable O2 detector is covered by a two-year warranty from the date of manufacture.



It is used at the underground coal mine and mine safety inspection mainly. Certainly, it is also applied to fire fighting, confined space, chemical industry, oil and all kinds of environment that needed to measure the combustible gas.





Feature Benefit
2-year warranty Lowers the overall cost of ownership by providing a full
  24 months of warranty coverage.
Weight of 102g Light weight and compact size, can be worn on the belt,
  shirt pocket, coveralls or hard-hat.
Flip-cap calibration Portable O2 detector has a unique, built in calibration
feature adapter to make calibration easy and eliminates the

  need to search for a calibration cup.
OLED display Provides continuous display of the actual concentration
  of combustible gas in the ambient environment as well
  as remaining battery life.
Adjustable low and The user can configure Portable O2 detector r to suit a
high alarm
setpoints number of different applications.
High visibility case From a distance, it’s color makes it easy for Safety
  Professionals to verify that workers are protected.
5 second delay Portable O2 detector cannot be accidentally shut off
shut-off protection
  since the on/off button must be depressed for five
  continuous seconds.





Technical specification:







Sensors: Electrochemical sensors (O2 )


Range: O2:0~25%


Accuracy: 0.1%

Resolution: 0.1%

Power Source: 1500mAH lithium battery ;
  rechargeable battery
Temperature Range: -4°F to 122°F (-20°C to 50°C) typical

Humidity Range: 0 to 95% RH typical

Alarms: Adjustable low and high alarm setpoints

Explosion protection Exibd I

Protection grade IP54

Dimensions: 93mm×49mm×22mm

Weight: 102g
