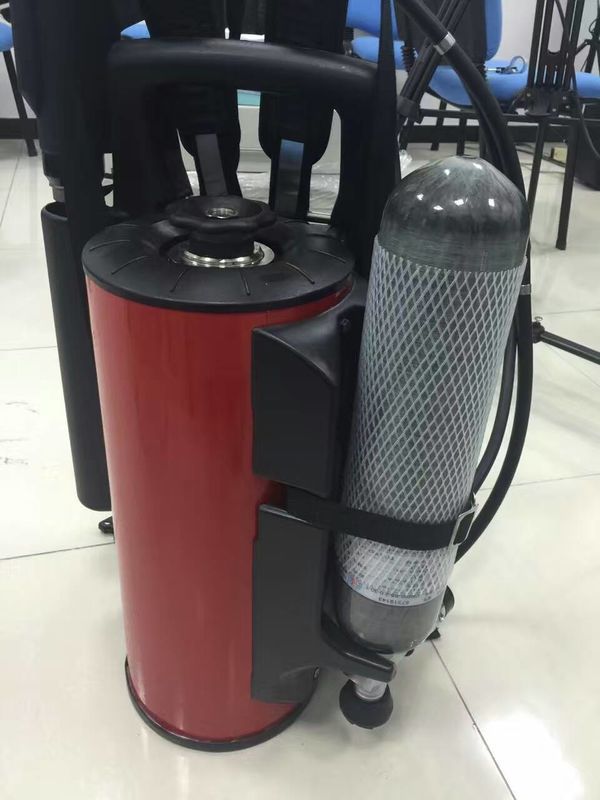

Water Media Fire Fighting Equipment Stainless Steel Material Backpacks Type

Minimum Order Quantity : 10set Price : USD998/set
Packaging Details : Wood crate Delivery Time : 30days
Payment Terms : T/T Supply Ability : 100sets/month
Place of Origin: China Brand Name: Topsky
Certification: CE Model Number: QXWB9/12/15

Detail Information

Material: Stainless Steel Filling Capacity: 9L
Working Pressure: 7.5bar Gas Bottle Medium: Compressed Air
Pressure Cylinder: Filling Pressure: 300bar Volume: 2 Litres- Valve Connection:G5/8 Operating Temperature: T Min +5°C; T Max +60°C
High Light:

fire protection equipment

,

fire department equipment

Product Description

Applications:

It has applied advanced aerodynamics technology from flow engineering applications involving liquid/gas mixtures to create QXW series water mist systems.

Backpacks

We specialize in harnessing water mist technology in portable formats that has given firefighting a new capability around the world. The portable products bring in significant reductions in response time, better accessibility and efficient firefighting thus helping control fires in the initial stages.

The Backpack is available with the option of usage along with a breathing apparatus. Backpack systems are ideal for use in industry, first intervention system in coal mine, fire trucks & emergency vehicles, offshore & marine.

Technical specification:



Extinguishing agent tank
Filling capacity 10 litres
Material Stainless steel
Working pressure
Pressure 7.5 bar
Propellant gas bottle
Medium Compressed air
Pressure cylinder Filling pressure: 300bar
Volume: 2 litres- valve connection:G5/8
Technical parameters
Operating time Appr. 25 sec.
Flow rate 24 litres/min
Operating temperature T min +5°C; T max +60°C
Carrying device Ergonomically shaped
Extinguishing gun
Operation pressure N ≦30
Changeover time Appr. 3 sec. (jet to spray mode)
Lancing distance Appr. 10 – 13m jet mode
Appr. 5 – 7m spray mode
Ratings (extinguishing performance)
A Fire Class 55 A (as per EN3)
B Fire Class 233 B (as per EN3)
IIB (EN 1866) (e.g.: with exting. agent Moussel C)
Dimensions
Weight empty 15 kg
Dimensions (LxWxH) Appr. 500* 300* 650 mm
Mist Range  100-150μm
Electrical Fires: Up to 1000v/3m distance
Certificate CE and ISO9001 ISO14001
