Professional Anti Terrorism Equipment Non Linear Junction Detector Fjt-c-s6

Product Details:
Place of Origin: China
Brand Name: TOPSKY
Model Number: TJT-C-0S6
Payment & Shipping Terms:
Price: USD9500/set
Packaging Details: Aluminium case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 100sets/month

Detail Information

Pulse Width: : 500us Transmitter Power:3.7W(peak), Power Error: ± 15%. 10. Working Time:: More Than 6 Hours
Third Harmonic Receiver Sensitivity:: -140dBm Third Harmonic Receiver Frenquency:: 7201.5MHz -- 7456.5MHz
Second Harmonic Receiver Sensitivity:: -140dBm Second Harmonic Receiver Frenquency:: 4801MHz -- 4971MHz
High Light:

anti terrorism equipment


counter surveillance equipment

Product Description


  1. Overview

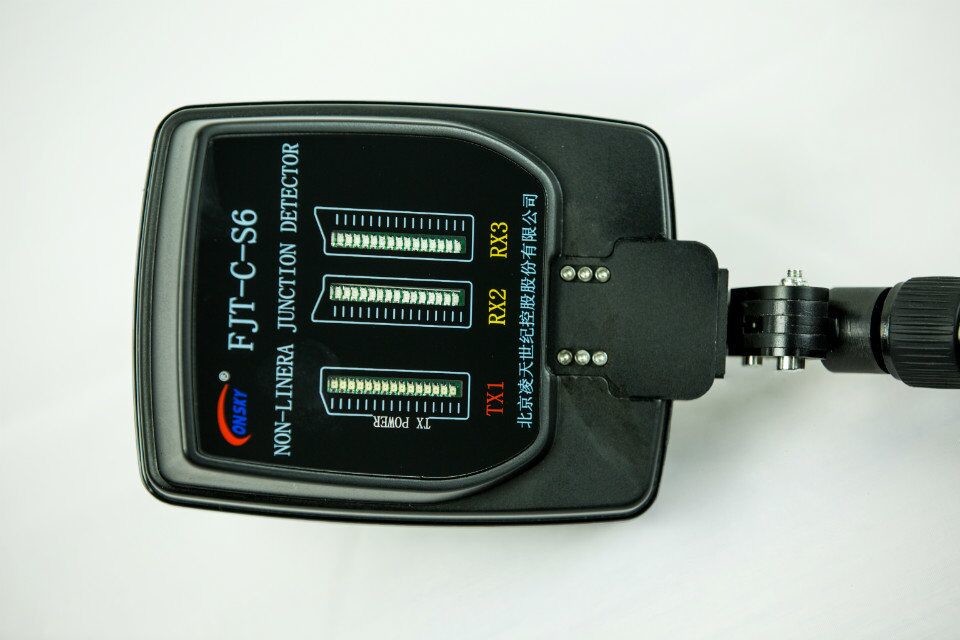

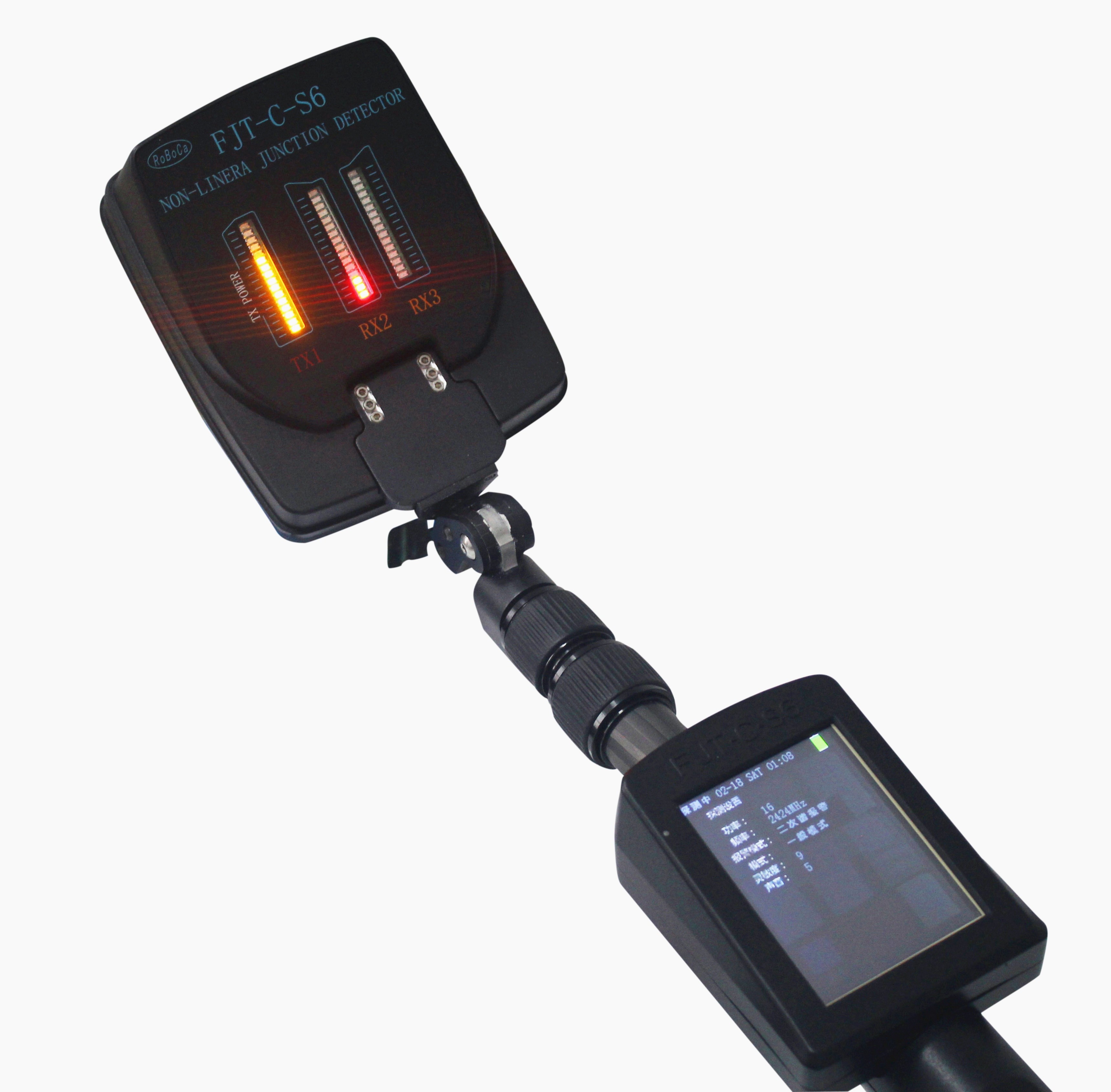

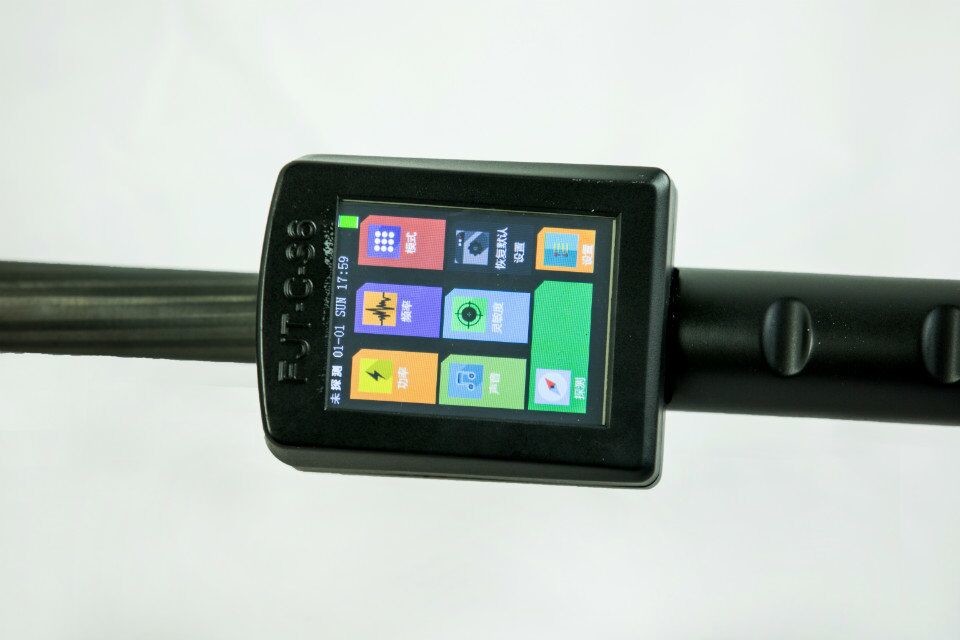

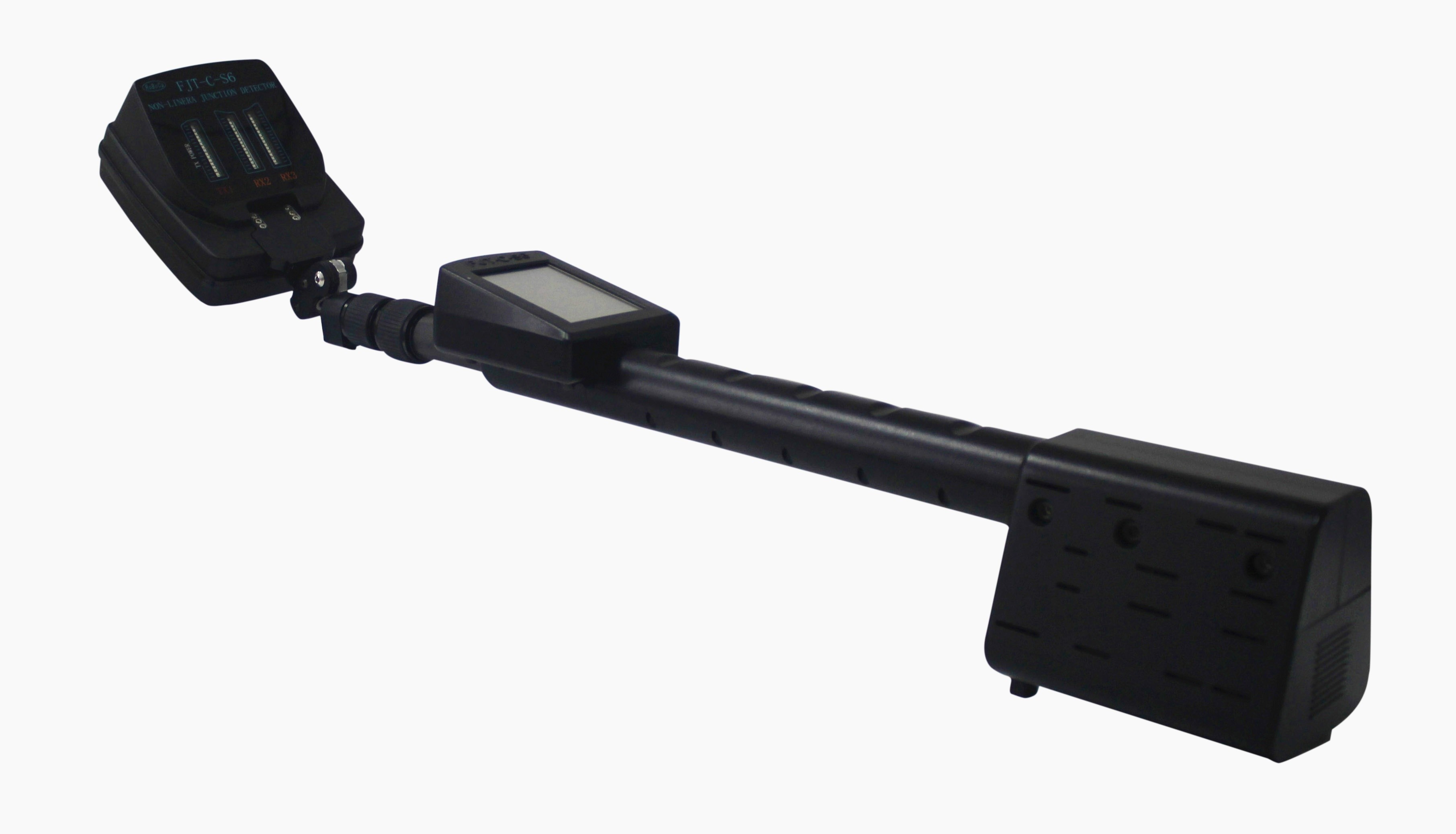

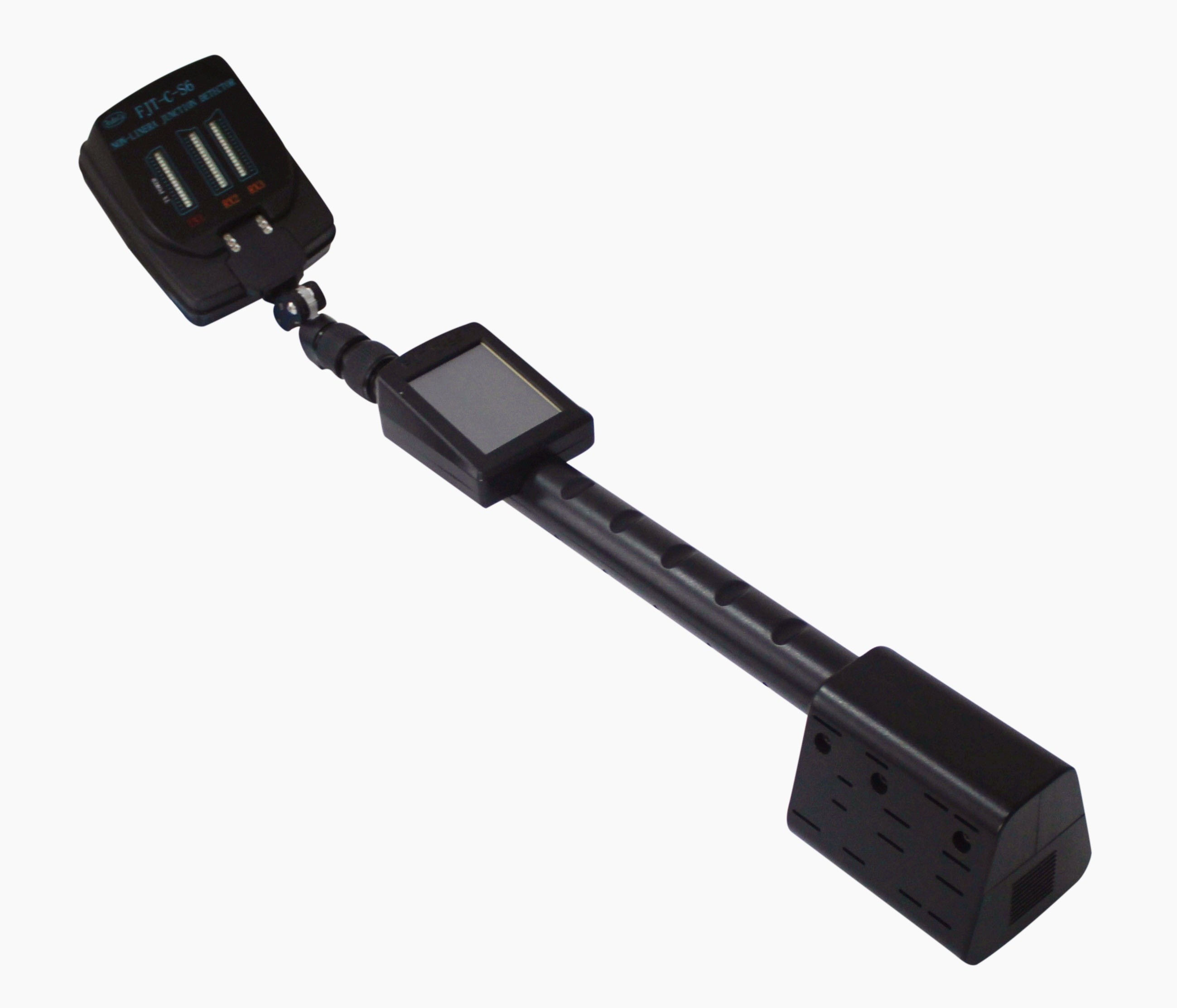

FJT-C-S6 non-linear junction detector is used for search and location of electronic devices both in active and switch-off state. The detector operation is based on the property of semiconductor components to generate a harmonics response when radiated by a microwave probing signal.

FJT-C-S6 non-linear junction detector can automatically find the best reception frequency channel without interference, it can be used in a complex electromagnetic environment. Power output can be automatically adjusted to facilitate the work of the operating personnel to the maximum extent.

FJT-C-S6 can simultaneously detect semiconductors and metals, such as remote control, mobile phones, cameras, listening devices, transmitters and so on.


  1. Specification


1.Transmitter range:2400.5MHz -- 2485.5MHz 2.Signal form: Pulse duty cycle of 5%

  1. Pulse width: 500us
  2. Transmitter power:3.7W(peak), power error: ± 15%.
  3. Second harmonic receiver frenquency: 4801MHz -- 4971MHz
  4. Second harmonic receiver sensitivity:-140dBm
  5. Third harmonic receiver frenquency: 7201.5MHz -- 7456.5MHz
  6. Third harmonic receiver sensitivity: -140dBm 10.Working time: more than 6 hours



11.Charge time:3 hours




3. Packing list


FJT-C-S6 non-linear junction detector 1 set

Earphone 1 set

Battery 2 pcs

Power adapter 1 set

Manual book 1 copy
