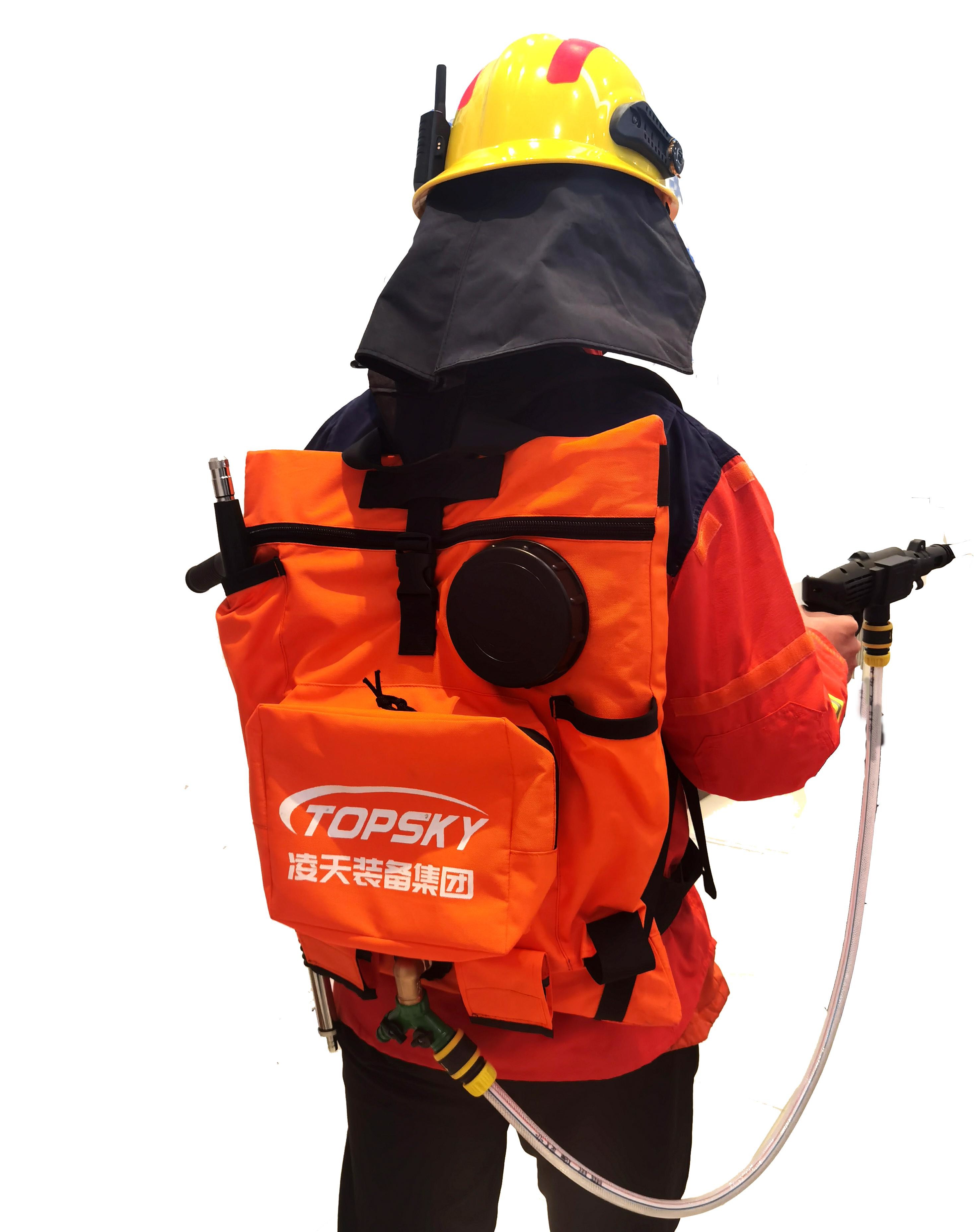

Hand Electric Type 23l Water Mist Gun Large Volume Lightweight Self Contained Soft
Contact Person : Tina Yu
Phone Number : 86-10-57621296
WhatsApp : +8613683015302
|Filling Capacity:||23L||Working Pressure:||7bar|
|Electric Jet Distance:||9M||Manual Jet Distance:||12M|
|Size:||61.5cm * 51.5cm||Weight:||5kgs|
fire department equipment,
fire rescue equipment
Manual self-integrated soft water gun is widely used in forest fire accidents. Due to its fast spreading speed and relatively fast performance, it needs rescue workers to respond and deal with it in time to ensure that the momentum of fire can be effectively suppressed without greater impact. When using backhand self-integrated soft water gun for rescue, it can be more intuitive to rescue and ensure the stability of rescue.
Manual self-integrated soft water gun, using manual and electric fire extinguishing two forms, free switch and can be used at the same time, effectively increase the efficiency of fire extinguishing. The manual self-integrated soft water gun has strong spraying force, wear resistance, wide application scenarios, easy to carry weight, improve the fire extinguishing efficiency of 2-3 times, efficient fire extinguishing, safe and stable performance, improve the fire extinguishing efficiency. It has certain influence on the overall rescue of the fire environment and the timely performance of the surrounding rescue effect, and also ensures the safety of the survivors themselves.
II. Application scope
Forest, city, community, residential building and other fire scene
Adopt manual and electric fire extinguishing forms, switch freely and can be used at the same time.
★2, foam generation system
Independent foam generating device can be quickly disassembled to increase the type of fire extinguishing.
★3. Foam sticks
Simple and effective to produce class A foam, spray for more than 10 minutes.
★4, small size, light weight
The weight of the machine is less than 5kg, and the overall size is 61.5cm * 51.5cm.
5, convenient connection, simple operation
All connections adopt fast plug mode. Manual gun body adopts reciprocating structure, electric gun body one key operation is simple and quick.
★6, large volume
Water storage capacity of backpack :23L.
★7, easy to carry
The orange color is beautiful and recognizable, the outer strap is simple and comfortable, and the spine protection center is filled with shock absorption design.
★8, throttle system
Equipped with three section check valve, effective control of water flow.
IV. Main specs
★1. Manual and electric fire extinguishing forms, free switching and can be used at the same time. The structure includes backpack, water bag, battery, manual water gun, electric water gun, foam generator, foam rod and other components; Equipped with medium pressure hose; Backpack connection parts to do reinforcement treatment;
2. Adjustable nozzle, with DC, fan, mist spray method; The gun body connection adopts quick joint;
★3. Independent foam generating device, can be quickly disassembled, increase the type of fire extinguishing.
★4. Equipped with high-efficiency foam rod, it can produce grade A foam simply and effectively, and spray for more than 10 minutes.
★5 machine weight ≤5kg; Overall size 61.5cm * 51.5cm.
6. Water bag capacity :23L; Equipped with a filter, to avoid impurities into the water sac when adding water;
5. Noise ≤ 50dB;
6. Maximum working pressure ≥ 0.7mpa;
★7. Maximum range: Electric jet > 9m; Manual injection ≥12m;
★8. Continuous working time of electric operation ≥6h; The battery charging indicator shows that the full time is no more than 6 hours;
9. Electric operation flow: ≥3L/min;
10. Safety protection: electric water gun has short circuit insurance function, electrical system has waterproof measures;
11. Easy operation: all connections adopt fast plug mode. Manual gun body adopts reciprocating structure, electric gun body one key operation is simple and quick Energy saving design: equipped with three-way joint check valve, effectively control water flow.
