500m Wireless Control Counter Terrorism Equipment Mk6 Eod Robot With Mechanical Arm

Minimum Order Quantity : 1set Price : USD80000/unit
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: China Brand Name: TOPSKY
Model Number: MK6

Detail Information

Pixel: 1080P Size: 1200*1030*1000mm
Weigh: 220kg Wire Control: 100m
Wireless Control: 500m Working Time: 12hrs
High Light:

eod robot wireless control

,

mechanical arm eod robot

Product Description

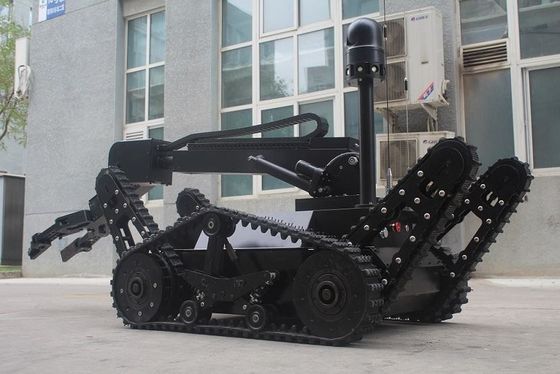

MK6 EOD robot





Overview

MK6 EOD robot is mainly used to deal with explosive related works, also can be used to reconnoiter difficult to reach for human. High torque 6 DOF can achieve any angle of rotation, can snatch 30KG weight, arm load explosives destroyer, can operate field destruction of explosives; chassis with all terrain structure, can adapt to a variety of terrain rapid combat deployment.

MK6 EOD robots can be used with a variety of accessories, including disruptor , X-rays, remote detonation control systems for explosives etc

Features

1,The manipulator can achieve 6 degrees of freedom rotation.

2. Equipped with an image system, 360 degrees of monitoring without dead angle, can observe the surrounding situation from time to time for the operator to control the robot;

3, the mechanical arm adopts motor could support to snatch 30KG heavy objects

4, the robot arm is equipped with explosives disruptor and aiming device to destroy explosives at the scene.(optional)

5. Adopting the structure of front and rear 4-swing arm + crawler, crawler and swing arm are suitable for complex terrain and can improve obstacle-crossing performance.

6, Applicable to carry portable X-ray machine and adapter bar (optional)

7, Wired and wireless control, in the interference environment using wired control

8. The vehicle and remote control box are simple to operate, adapt to all kinds of complex environment, and can quickly complete the site deployment.

Specifications

Robot main parameters:

1, camera pixels: 1080P

2, grasp the lifting force: the maximum is30Kg. Expand grasp is 10kg

3. External diameter of explosive bomb: 29mm

4. Climbing ability: less than 30 degrees.

5. Stair climbing capability: less than 30 degrees.

6. Height of obstacle crossing: 300mm

7, maximum speed: greater than or equal to 1.4m/s

8. Turn radius: in place rotation.

9, wired control: 100M

10, wireless control: 500M

11, size: 1200*1030*1000mm (including PTZ).

12, weight: 220KG

13, voltage: 48V

14, working time: more than 12h

Manipulator parameters

1. Main arm rotation: 0-90 degrees.

2. Main arm telescopic: 0-450mm

3, small arm: -90 degrees -120 degrees.

4, base: left 90 degrees right 60 degrees.

5, claw turn: 360 degrees (continuous)

6, claw joint size: 0-245mm

Explosive destruction device (optional):

1, weight: 3.2KG

2, transmitter outer diameter: 53mm

3, transmitter caliber: 22mm

4, breakdown ability: wood plate 70mm; steel plate 3mm

X-ray machine parameters (optional)

1, imaging plate size: 383*480*15mm

2. The thickness of the imaging plate is less than: 15mm

3, the weight of the imaging plate is less than: 3.2kg

4, pixel size is less than 160 μm

5. X-ray source size: 310*50mm

6. X ray penetration: 50mm aluminum plate.

7. Light source: wired and wireless control.

8, synchronous mode: manual control (13) cable communication: compatible with 100 megabit Gigabit Ethernet.

System composition:

MK6 explosive disposal robot 1

Remote control box 1

Robot charger (54.6V) 1

Remote charger (12.6V) 1

Wired communication cable 1 roll
