Smart Counter Terrorism Equipment Single Swing Arm Wireless Control Robot Chassis

Minimum Order Quantity : 1 Packaging Details : Customized box
Payment Terms : T/T, L/C, Western Union Supply Ability : 10sets/month
Place of Origin: China Brand Name: Topsky
Model Number: ER2

Detail Information

Screen: 12inch High Light LCD Screen Size: 967*646*750mm(inc PTZ)
Weight: 50KG Image System: 360°panorama Image System
Wireless Control Distance: 500m Wire Control Distance: 1000m
High Light:

wireless control smart robot chassis

,

single swing arm smart robot chassis

,

wireless control 2wd smart car chassis

Product Description

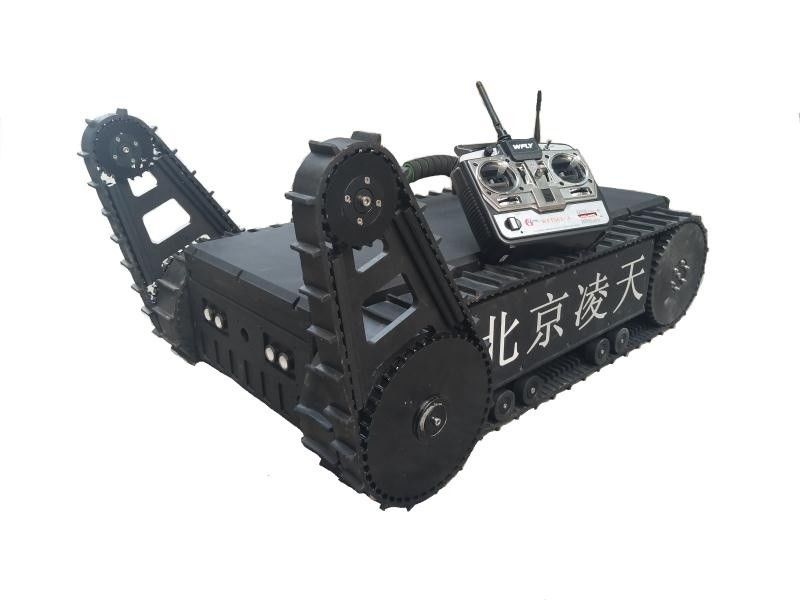

Smart Counter Terrorism Equipment Single Swing Arm Wireless Control Robot Chassis



Overview



The single swing arm robot chassis is a universal crawler robot chassis that can meet the high requirements of small-scale reconnaissance robots for off-road performance and smooth performance. It is convenient for users to connect equipment and expand applications. It is equipped with high-torque DC brushless deceleration. The motor provides powerful power for the chassis and meets the difficulties. The precise chassis height is matched with the reasonable power motor. It adopts the structure of the front 2 swing arm + track. The track and swing arm are suitable for complex terrain, which can improve the obstacle performance and make Rapid combat deployment.



Features



1, ultra-low chassis, large space, can carry more equipment;

2, exquisite design, broad development space;

3, excellent power, longer battery life;

4. Adopting the structure of the front 2 swing arm + track, the track and swing arm are suitable for complex terrain, which can improve the obstacle resistance performance;

6, the car body uses wireless control, can achieve zero radius rotation;

7. The vehicle is small in size and light in weight, and can be quickly deployed on site;



Main parameters (★ is a key parameter)

Robot body parameters:

1, size: 860 * 504 * 403mm

2, weight: 50KG

3, climbing ability: ≥ 30 °

4, the ability to climb stairs: ≥ 30 °

5, the obstacle height: 250mm

6, the maximum speed: ≥ 1.2m / s

7, turning radius: in situ rotation

8, wireless control: 50m

9, voltage: 24V

10, working time: ≥ 4h

Remote control parameters:

1, material: ABS + metal

2. Transmitting power: ≤100mW

3, working current: ≤160mA

4, coding method: PPM

5, high frequency module: built-in

6, power: 9.6-12V

7, size range: 100% ~ 125%

8, size: 270 * 175 * 80mm (including antenna)

9, weight: 0.64KG

System composition:

Single swing arm robot chassis 1

Remote control 1 set

Body charger (25.2V) 1

Instruction manual 1 copy

Certificate 1
