2.4GHz Miniaturized Nonlinear Detector Counter Terrorism Equipment
Contact Person : Tina Yu
Phone Number : 86-10-57621296
WhatsApp : +8613683015302
|Screen:||12inch High Light LCD Screen||Size:||1032 × 630 × 200 Mm.|
|Weight:||13.5KG||Image System:||360°panorama Image System|
|Wireless Control Distance:||500m||Wire Control Distance:||1000m|
anti terrorism equipment,
counter surveillance equipment

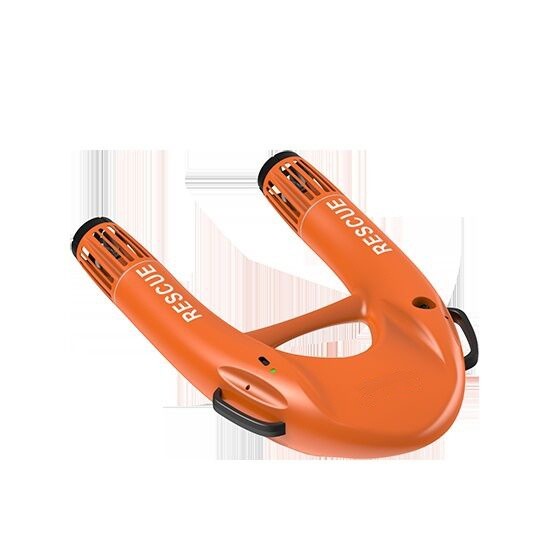

Wireless Remote Control Counter Surveillance Equipment Intelligent Power Lifebuoy
1. The wireless remote control intelligent power lifebuoy can be thrown from the ship, the shore, or the aircraft. It has the functions of intelligent correction of heading and automatic return of lost contact. It can travel straight in the water without interference from external forces. It can turn stably in waves and resist wind and waves. You can drag a life buoy or a water stretcher, etc. The wireless remote-control intelligent power life buoy can simultaneously rescue 3-4 people who fall into the water. The people who fall into the water can grab the handles on both sides of it, and the rescuers can use the remote control in the safe area to quickly rescue the people who fall In the safe area, 3-4 people can be pulled back without dragging by a human with a floating rope. Really fast, safe and effective rescue.
2. Product structure: The structure of the wireless remote control intelligent power lifebuoy is symmetrical structure of up, down, left and right, filled with waterproof and flame retardant foam material, lightweight and buoyant. The shell is wear-resistant and impact-resistant, with rounded edges and no hidden safety hazards.
Appearance and shape: A type.
3. Start-up time: one power switch, one remote control switch, and two switches can be put into use quickly within 5 seconds.
★ 4. Water speed: ≥6m / s.
★ 5, manned speed: ≥ 2 meters / second.
★ 6. Power (KW): ≥ 1.2KW for single motor (double motor)
★ 7. Remote control distance (m): ≥ 800m.
★ 8. Effective buoyancy (kg): ≥ 40 kg.
★ 9. Water load (kg): ≥ 200 kg.
10. Waterproof grade: IP68.
11. Intelligent auto-assisted centering function: double-sided normal power driving, free from external force interference in water driving, and can move along a straight line.
12. Drive power structure: 2 lithium polymer rechargeable batteries.
★ 13. Continuous working time of each battery (minutes): ≥ 40 minutes.
14. Fast battery charging time (hours): <3 hours.
15. Driving device: propeller rotation mode (propeller equipped with safety protection cover).
16. Resistance to wind and waves (meters): ≥2 meters.
17. Weight with battery (kg): ≤13.5 kg. Individually portable design, carrying and operating by one person
★ 18. Machine size: ≤1032 × 630 × 200 mm.
★ 19. Number of pull handles: There are two handles on the front of the fuselage, and one cross handle is fixed in the middle of the fuselage.
★ 20 one-key return function: return to the starting position ≤ 2 meters.
★ 21. Lost contact return function: The signal will automatically return to the starting position ≤ 2 meters after 15 seconds of lost contact.
★ 22. GPS / Beidou system road accurate positioning: ≤ 2 meters.
23. Remote operation from shore, no need for rescuers to launch the rescue.
★ 24. Power unit: propeller, driving propeller: 2, each thruster can be used on both sides. Fence pitch of propeller equipped with safety cover tail cover: 9.5mm.
25. Both sides can be used without fear of subversion.
26. Ergonomic A-ring body, comfortable and comfortable.
27. The battery and equipment module realize watertight design without fear of water leakage.
28. Propulsion modules, equipment modules, and battery modules use quick-release design.
29. FRP, fiberglass, Kevlar conform to the material shell, suitable for various waters. At a height of 10 or 20 meters, the machine can be thrown into the water at any angle without damage.
