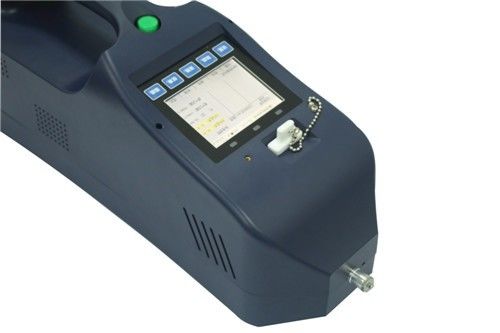

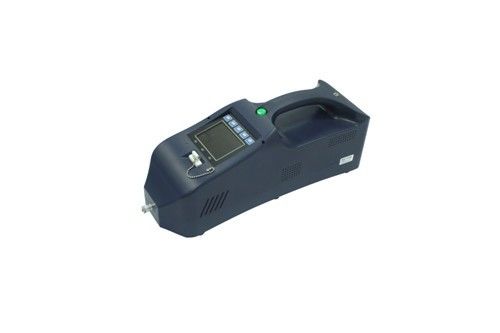

High Sensitivity Rapid Speed 4s Portable Explosive Detector

Minimum Order Quantity : 1 Set Packaging Details : Export standard
Payment Terms : L/C, T/T Supply Ability : 200 Sets/Month
Place of Origin: China Brand Name: TOPSKY
Model Number: TPX-1

Detail Information

Name: EOD Equipment/ Military Equipment High Sensitivity And Rapid Speed Portable Explosive Drug Detector Applied Technology: Ion Mobility Spectrometry (IMS)
Detectable Explosives: All Kinds Of Military, Civil And Homemade Explosives Such As TNT, RDX, HMX, Pentaerythrite Tetranitrate (PETN), Nitroglycerin, Ammonium Nitrate, Gunpowder, Plastic Bonded Explosives(C3,C4), Picric Acid,tetryl Etc. Drugs: Cocaine, Heroin, Hemp, Crystal Meth Method Of Sampling: Use A Test Paper To Wipe Over The Sample
Sensitivity: Nanogram Warning Method: Sound And A Screen Display Of Information
Duration For Analysis: ≤4seconds Resolution: >20(for TNT)
High Light:

rapid speed portable explosive detector

,

high sensitivity portable explosive detector

,

4s portable explosive detector

Product Description

EOD Equipment/ military equipment High sensitivity and rapid speed portable explosive drug detector

Of wide-range applications; capable of monitoring all kinds of common explosives, drugs and precursor chemical products, etc.

High sensitivity and rapiddetection speed
Automatic sampling and detection, intelligent sensing of the sampling process
Database accessibility, free toadd new data anytime required
Convenientdata output interface for handling data and printing
Anti-pollutant sampling and automatic self-cleaning
Efficient and long-term gas purification system
Low expense of supplies; easy operation and maintenances
Main Technological Specifications
Applied Technology: Ion Mobility Spectrometry (IMS)
Detectable Explosives: all kinds of military, civil and homemade explosives such as TNT, RDX, HMX, pentaerythrite tetranitrate (PETN), nitroglycerin, ammonium nitrate, gunpowder, plastic bonded explosives(C3,C4), picric acid,tetryl etc. Drugs: cocaine, heroin, hemp, crystal meth, morphine etc.
Method of Sampling:use a test paper to wipe over the sample
Sensitivity: nanogram

Warning Method: sound and a screen display of information
Duration for Analysis: ≤4seconds
Resolution:>20(for TNT)
Detectable Rate: ≥99%
False Alarm Rate: ≤1%
Warming-up time: ≤15 minutes
Environmental requirements:working at temperature of -10~55℃ and at relative humidity of ≤95%
Battery Parameters: lithium polymer batteries of 24V(DC) and 8.7AHbr

Battery working time: At least 6 hours

Product External Dimensions: 432mm(L)×135mm(W)×178mm(H)
Product Weight: 3.95Kg



High Sensitivity Rapid Speed 4s Portable Explosive Detector 0
