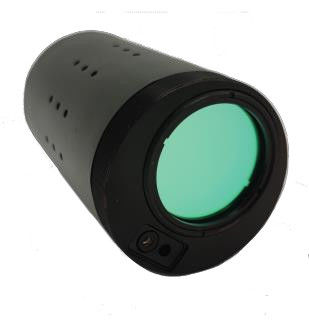

Methane Ch4 Detector Laser Sensor Module 120m Distance Detection For Drone Uav

Minimum Order Quantity :	1 set	Price :	USD4000-7500/Set
Packaging Details :	Export package	Payment Terms :	T/T, Western Union
Supply Ability :	500 Sets/Month

Place of Origin:	China	Brand Name:	TOPSKY
Model Number:	MCJJT-120MD

Detail Information
Name:	0-90000ppm.m 120m Distance Detection Laser Methane CH4 Detector Sensor Module For Drone UAV	Operating Temperature:	-20-80℃
Concentration Range:	0-90000ppm.m	Communication:	TTL
Detection Range:	0-90000	Detection Distance:	120m
Highlight:	methane laser detector module , ch4 detector laser sensor module , 120m distance detection laser sensor module

Product Description

0-90000ppm.m 120m distance detection Laser Methane CH4 Detector sensor module for drone UAV

√ Long-distance detection: Meet the methane and methane-containing gas leak detection at a distance of 120 meters

√ Anti-cross interference: specific laser detection, only reacts to methane gas, not affected by environmental conditions

√ Convenient application: automatic detection at boot, no need for periodic calibration, no maintenance

Performance

Parameter		Min value	Typical value	Max. Value	Unit
General parameters
Storage temperature		-20	-	80	℃
Operating temperature		-10	-	60	℃
Working humidity		-	-	98	%
Working pressure		-	101	-	kPa
Concentration measurement range		0.00	-	100000	ppm·m
Effective distance of gas measurement		0.5	-	120	m
measurement accuracy		±10 @1000ppm·m(75 Reflectivity & slow and stable measurement)
Sensitivity		5@≤30m/10@≤60m/100@≤120m			ppm·m
Communication Interface
485 interface	Baud rate	-	9600	-	baud
Electrical performance
Operating Voltage		12	-	24	V
Working current		-	200	-	mA
Optical parameters
Detection light		Near infrared (1653nm) laser safety class Class I
Indicating light		Green light (532nm) laser safety class Class IIIR
Dimensions
Diameter*length (maximum size)		75*126			mm
