|Name:||Hand & Electric Type Large Volume Light Weight Self-contained Soft Water Mist Gun||Weight:||Less Than 5kg|
|Size:||61.5cm * 51.5cm.||Storage Capacity:||23L|
|Spray Time:||More Than 10 Minutes.||Keyword:||Water Mist Gun|
23l water mist gun,
lightweight water mist gun,
self contained soft water mist gun

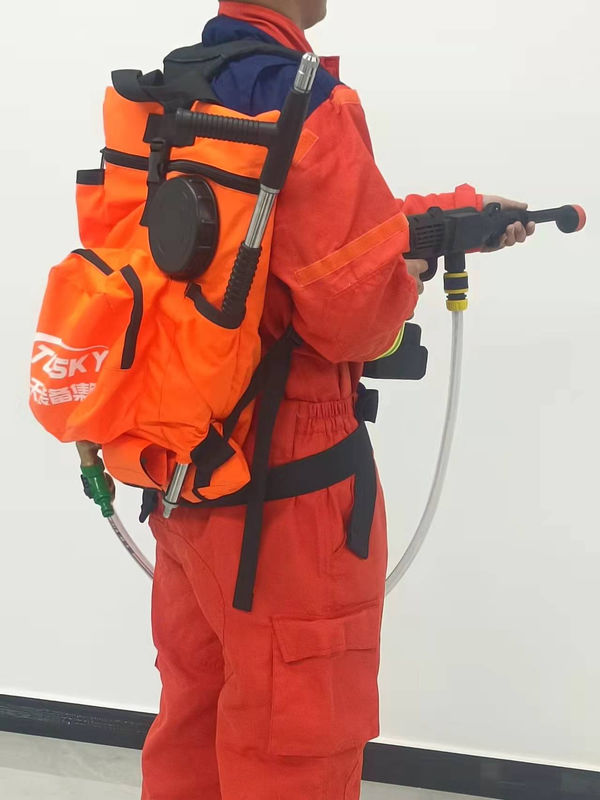

Hand & electric type large volume light weight self-contained soft water mist gun
Manual self-integrated soft water gun is widely used in forest fire accidents. Due to its fast spreading speed and relatively fast performance, it needs rescue workers to respond and deal with it in time to ensure that the momentum of fire can be effectively suppressed without greater impact. When using backhand self-integrated soft water gun for rescue, it can be more intuitive to rescue and ensure the stability of rescue.
|2. Application scope|
|Forest, city, community, residential building and other fire scene|
Adopt manual and electric fire extinguishing forms, switch freely and can be used at the same time.
★1. Manual and electric fire extinguishing forms, free switching and can be used at the same time. The structure includes backpack, water bag, battery, manual water gun, electric water gun, foam generator, foam rod and other components; Equipped with medium pressure hose; Backpack connection parts to do reinforcement treatment;
2. Adjustable nozzle, with DC, fan, mist spray method; The gun body connection adopts quick joint;
★3. Independent foam generating device, can be quickly disassembled, increase the type of fire extinguishing.
★4. Equipped with high-efficiency foam rod, it can produce grade A foam simply and effectively, and spray for more than 10 minutes.
★5 machine weight ≤5kg; Overall size 61.5cm * 51.5cm.
6. Water bag capacity :23L; Equipped with a filter, to avoid impurities into the water sac when adding water;
5. Noise ≤ 50dB;
6. Maximum working pressure ≥ 0.7mpa;
★7. Maximum range: Electric jet > 9m; Manual injection ≥12m;
★8. Continuous working time of electric operation ≥6h; The battery charging indicator shows that the full time is no more than 6 hours;
9. Electric operation flow: ≥3L/min;
10. Safety protection: electric water gun has short circuit insurance function, electrical system has waterproof measures;
11. Easy operation: all connections adopt fast plug mode. Manual gun body adopts reciprocating structure, electric gun body one key operation is simple and quick Energy saving design: equipped with three-way joint check valve, effectively control water flow.
1. Backpack * 1
8. intermediate pressure hose *2
