Single Port Earthquake Rescue Equipment Dual Output Hydraulic Pump Bjq-72/0.6

Minimum Order Quantity : 1 Price : 2500-3000USD/set
Packaging Details : carton box Delivery Time : within 30days after payment is received
Payment Terms : T/T Supply Ability : 100sets/month
Place of Origin: China Brand Name: TOPSKY
Model Number: BJQ-72/0.6

Detail Information

Product Name: Single Port Hydraulic Dual Output Pump Type: Hydraulic Pump
Application: Rescue Equipment Model: BJQ-72/0.6
Rated Working Pressure: ≥72Mpa Engine Power: 2.1KW/3600(r/min)
High Light:

earthquake rescue dual output hydraulic pump

,

single port dual output hydraulic pump

,

disaster rescue dual output hydraulic pump

Product Description

Single port hydraulic dual output pump

BJQ-72/0.6



Features:

1. The original imported Honda four-stroke GX100 gasoline engine is used as the power source, with strong power and stable performance.

2. It adopts a flat head single interface dual output structure design, which is easy to clean and can be connected to two devices at the same time.

3. The interface is designed with a flat-head shaft, which can be plugged and unplugged under pressure, with one press in place, making the operation more convenient and safer.

4. Adopting "automatic pressurization" design, no need for hydraulic valve switch, optimizing operating procedures and reducing fuel consumption.

5. External single "double speed mode" switch. After opening, the rescue efficiency of a tool can be doubled.

6. The upper-mounted super large hydraulic oil tank is designed for normal use of various large and super large hydraulic tools.

7. The frame structure is adopted on the periphery, which can avoid the collision of the host and can directly carry two persons into the rescue scene.

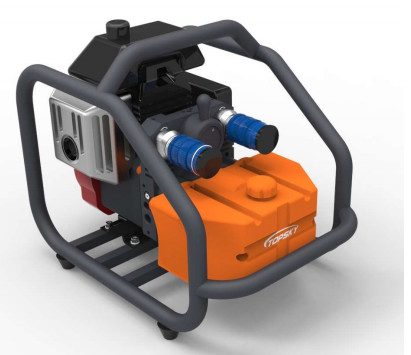

Single Port Earthquake Rescue Equipment Dual Output Hydraulic Pump Bjq-72/0.6 0

Parameters:

Rated working pressure: ≥72Mpa

Working speed: 3400±150rpm

Engine power: 2.1KW/3600(r/min)

Hydraulic oil tank volume: 4.5L

Gasoline fuel tank capacity: 0.77L

High pressure/double speed mode ---

---flow rate: 0.6/1.2L/min

Low pressure/double speed mode flow: 2.4/4.5L/min

Weight: ≤25kg

Dimensions (length*width*height) : 400*305*460mm

2 sets of 5m flat-head axial single-tube single-port hoses are standard (red and blue color)

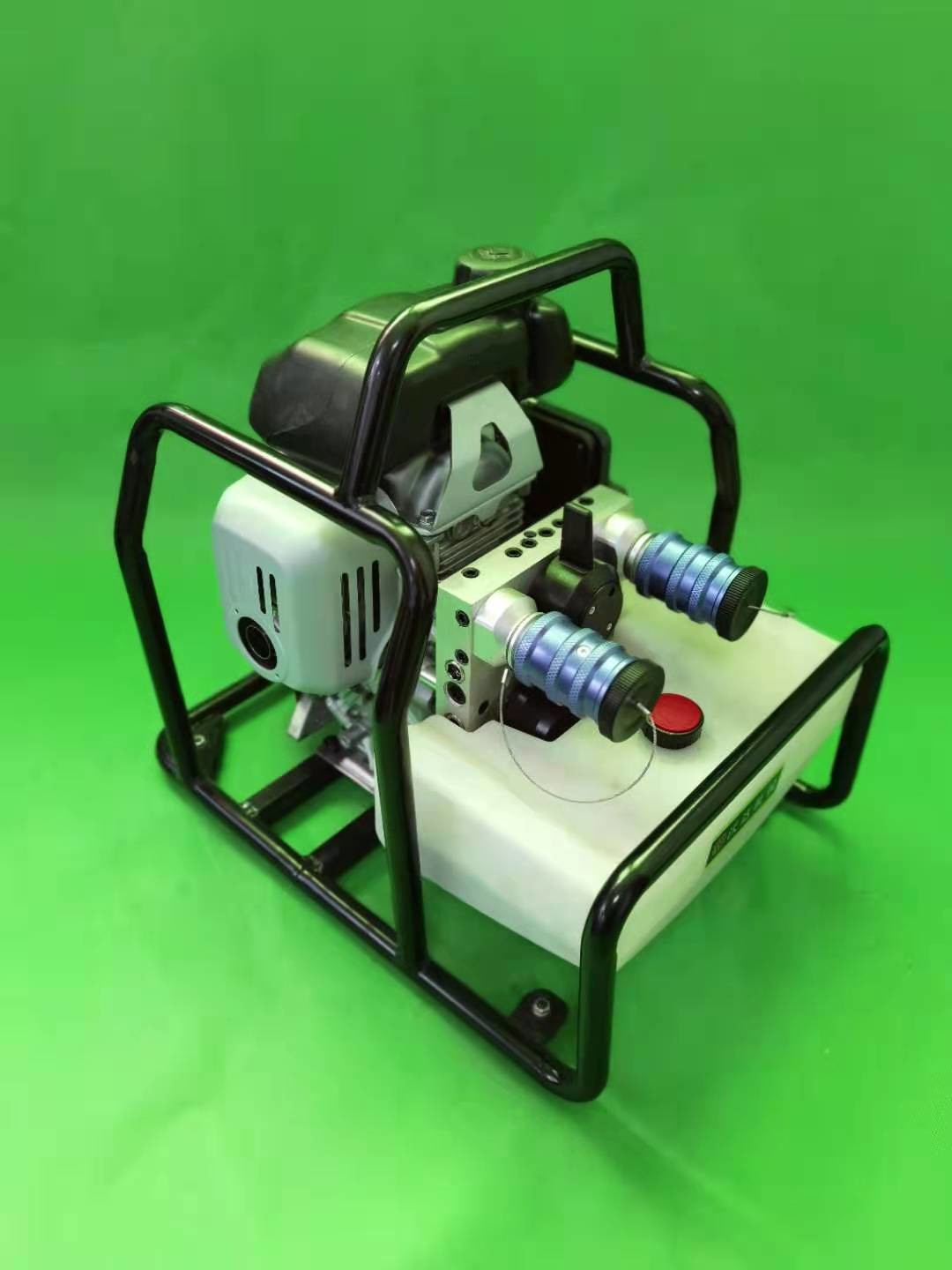

Single Port Earthquake Rescue Equipment Dual Output Hydraulic Pump Bjq-72/0.6 1

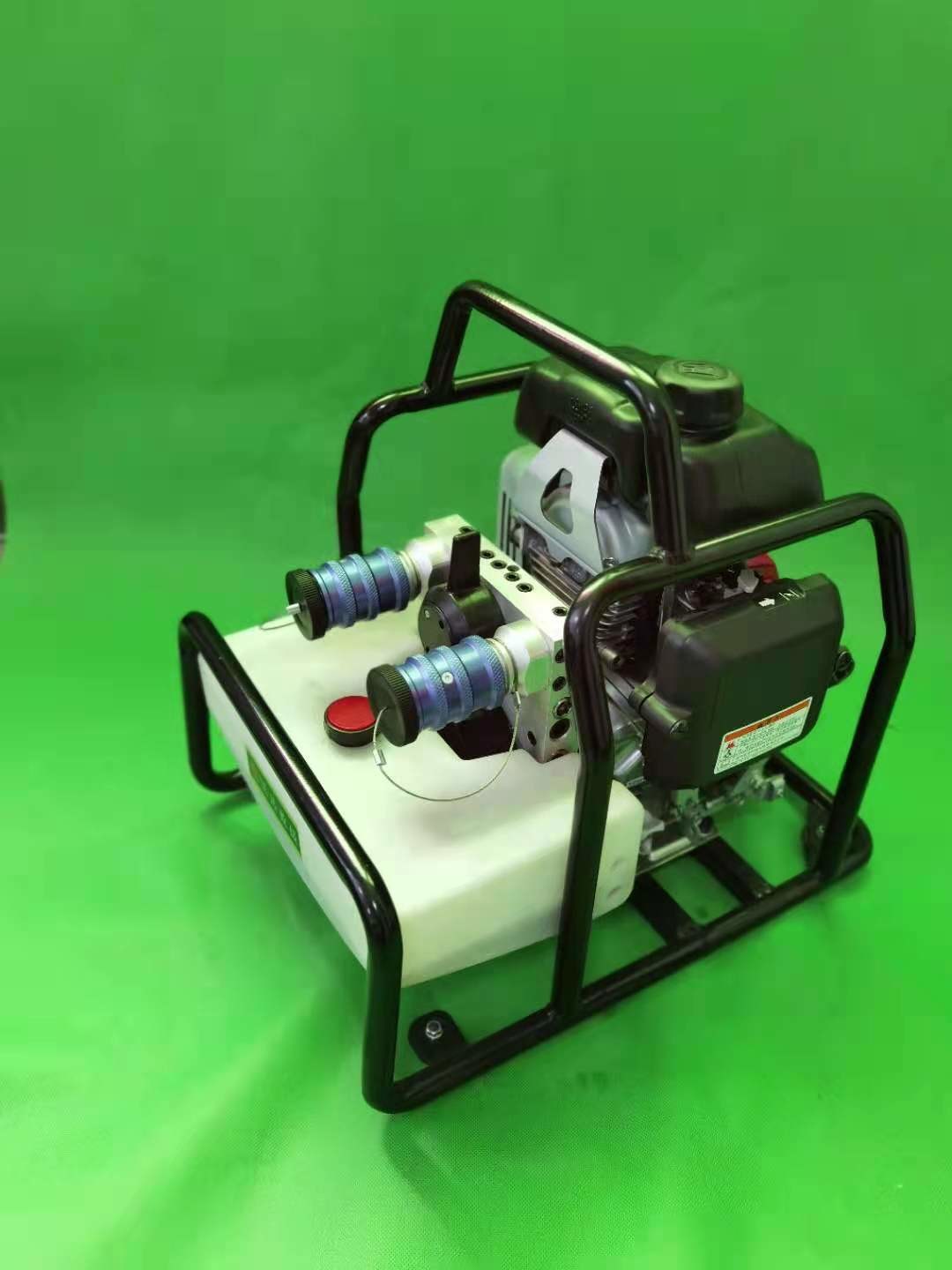

Single Port Earthquake Rescue Equipment Dual Output Hydraulic Pump Bjq-72/0.6 2
