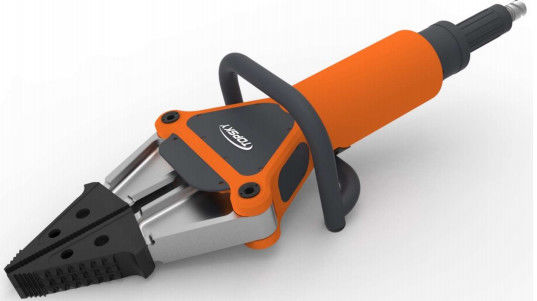

Single Interface Disaster Rescue Equipment Single Tube Hydraulic Spreader Gykz-55-67/710

Minimum Order Quantity : 1 Price : 2000-2500USD/set
Packaging Details : carton box Delivery Time : within 30days after payment is received
Payment Terms : T/T Supply Ability : 100sets/month
Place of Origin: China Brand Name: TOPSKY
Model Number: GYKZ-55-67/710

Detail Information

Product Name: Single Tube Single Interface Hydraulic Expander Model: GYKZ-55-67/710
Type: Hydraulic Spreader Application: Rescue Equipment
Rated Working Pressure: ≥72Mpa Rated Expansion Force: 55-67KN
High Light:

hydraulic spreader disaster rescue equipment


single interface disaster rescue equipment


disaster rescue hydraulic spreader

Product Description

Single tube single interface hydraulic expander



1. No tail tube, single tube and single interface design.

2. The interface is a flat-head shaft single interface design, which is easy to clean and can be operated under pressure.

3. Plastic non-slip switch control, no sticking or sticking, making the operation more precise.

4. The handle is equipped with an integrated LED lighting system, which can provide lasting lighting for rescuers.

5. The two-way hydraulic lock is used inside, and the tool has the function of self-locking and pressure keeping after the pressure is released.

6. Equipped with multi-functional auxiliary tool head, which has the functions of tearing, pulling, opening the door, pulling and so on. Can be replaced at will.

7. Various tool heads have unique non-slip and clamping design. Good skid resistance.

8. Tool packaging is opened with high-strength foam. Lightweight and durable. Anti-stepping pressure, anti-rain, anti-corrosion.

Single Interface Disaster Rescue Equipment Single Tube Hydraulic Spreader Gykz-55-67/710 0


Rated working pressure: ≥72MPa

Rated expansion force: 55-67KN

Expansion distance: ≥710mm

Traction distance: ≥610mm

Traction force: ≥42KN

No-load expansion: 9-12s

Weight: ≤17kg

Dimensions (length*width*height) :


Standard configuration: one tool for expansion and tearing and one for opening and sewing.
