LED Emergency Rescue Equipment Hydraulic Top Supporter Gycd-145/900

Minimum Order Quantity : 1 Price : 2000-2500USD/set
Packaging Details : carton box Delivery Time : within 30days after payment is received
Payment Terms : T/T Supply Ability : 100sets/month
Place of Origin: China Brand Name: TOPSKY
Model Number: GYCD-145/900

Detail Information

Product Name: Single Pipe Single Interface Hydraulic Top Supporter Model: GYCD-145/900
Type: Hydraulic Ram Application: Rescue Equipment
Rated Working Pressure: ≥72Mpa Rated Supporting Force: ≥145KN
High Light:

led emergency rescue equipment

,

hydraulic top supporter emergency rescue equipment

Product Description

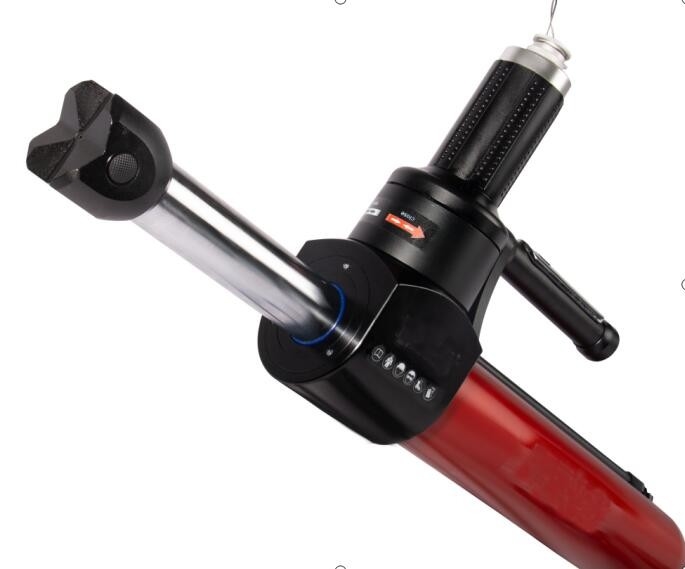

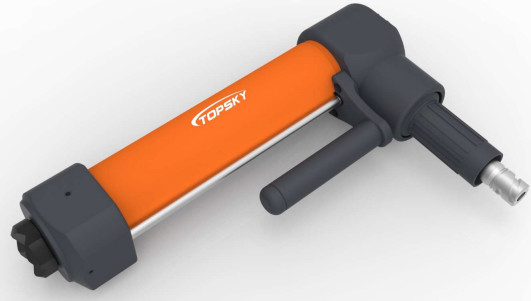

Single pipe single interface hydraulic top supporter



GYCD-145/900



Features:

1. No tail tube, single tube and single interface design.

2. The interface is a flat-head shaft single interface design, which is easy to clean, can be operated under pressure, and is in place with one press.

3. Plastic non-slip switch control, no sticking or sticking, making the operation more precise.

4. There is an integrated LED lighting system at the top of the ejector pole, which can provide lasting lighting for rescuers.

5. The two-way hydraulic lock is used inside, and the tool has the function of self-locking and pressure keeping after the pressure is released.

6. Built-in laser positioning device at the end of the ejector rod. It can be accurately positioned when supporting the roof to ensure accuracy in use.

7. The end of the ejector rod and the base of the ejector rod can rotate 360°. The non-slip claw structure makes the ejector rod safe and stable on inclined or smooth surfaces.

8. Tool packaging is opened with high-strength foam. Lightweight and durable. Anti-stepping pressure, anti-rain, anti-corrosion.



LED Emergency Rescue Equipment Hydraulic Top Supporter Gycd-145/900 0

Parameter:

Rated working pressure ≥72MPa

Rated supporting force ≥145KN

Operating range 550-900mm

Top stroke 350mm

Weight ≤12kg

Dimensions (length*width*height) 550*280*100mm
