Portable Waterproof Explosion-Proof Emergency Light LT6117
Contact Person : Tina Yu
Phone Number : 86-10-57621296
WhatsApp : +8613683015302
| Minimum Order Quantity : | 1 set | Price : | USD1000-2000 |
|---|---|---|---|
| Packaging Details : | Export package | Delivery Time : | 20 working days |
| Payment Terms : | T/T | Supply Ability : | 200 Sets/Month |
| Place of Origin: | China | Brand Name: | TOPSKY |
|---|---|---|---|
| Model Number: | RWX6100 |
|
Detail Information |
|||
| Generator Power: | ≥2000W | Oil Tank Volume: | 15L |
|---|---|---|---|
| Lamp Panel Assembly: | ≤10Kg | Control Box Protection Grade: | ≥IP65 |
| Lamp Holder Luminous Flux: | ≥29000lm | Generator Set: | ≤75Kg |
| High Light: | 320 led firefighting moon light,wind resistance firefighting moon light |
||
Product Description

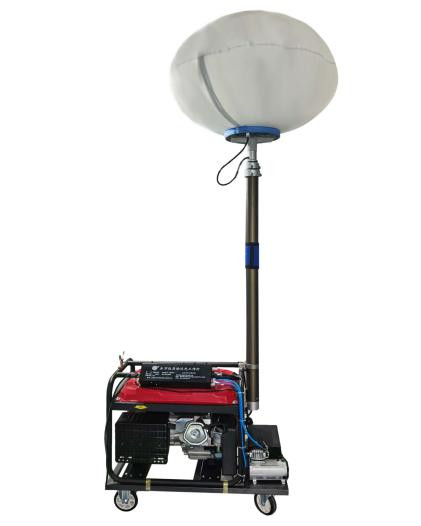

Mobile lighting moon lights
| 1.Introduction |
| Lighting performance: The lamp plate is composed of 320 effect LED lamp head, high lighting brightness, large coverage range of 2200m, long irradiation distance, long service life of the lamp. Wind resistance: Wind resistance of the gun without fixed devices :50km/h, to ensure normal operation in a variety of harsh environments and climatic conditions. Lifting performance: The lamp adopts three telescopic rods as the lifting adjustment mode. The lighting height can be adjusted arbitrarily. The maximum height is 3.0 meters. The working lamp rotates 360 degrees horizontally to achieve a wide range of lighting. Working time: When using the generator set to supply power, it can work continuously for more than 6 hours using 220V mains power. Easy to operate: The lamp is composed of light frame (including lamp tray telescopic rod) and generator base up and down two parts of light and easy to close, disassemble and handle simple operation, strong applicability. The generator base is equipped with universal wheels to operate on potholed roads. Safety performance: The whole lamp is made of various high-quality metal materials, compact structure and stable quality, performance cocoa rain and water spray can work normally under harsh weather conditions, and the ball lamp cover is durable. |
| 2.Application |
|
Fire rescue Emergency rescue |
| 3.Feature |
| Lighting performance: The lamp plate is composed of 320 effect LED lamp head, high lighting brightness, large coverage range of 2200m, long irradiation distance, long service life of the lamp. Wind resistance: Wind resistance of the gun without fixed devices :50km/h, to ensure normal operation in a variety of harsh environments and climatic conditions. Lifting performance: The lamp adopts three telescopic rods as the lifting adjustment mode. The lighting height can be adjusted arbitrarily. The maximum height is 3.0 meters. The working lamp rotates 360 degrees horizontally to achieve a wide range of lighting. |
| 4.Main technical specification |
|
1.The inspection basis of lamps should comply with GB 26755-2011 "fire mobile lighting device", GB7000.1-2015 "Lamps Part 1: General requirements and tests" and GB/T 26178-2010 "Luminous flux measurement method". 2.Light source type: halogen tungsten lamp or gold halogen lamp; Rated power 1000W, rated voltage 220V, average service life ≥10000h, pneumatic lifting structure, can be locked at any time working height, 360° projection direction, telescopic gas rod minimum height ≥2000mm, maximum lifting height (face and ground) ≥4500mm, lifting time ≤45s 3.Generator power ≥2000W, oil tank volume 15L, one-time filling of oil continuous use time ≥13h 4.Overall size: lamp plate assembly ≤800×400×400mm, telescopic cylinder with a diameter of 80×1600mm 5.Lamp panel assembly ≤10Kg, telescopic cylinder ≤8Kg, generator set ≤75Kg 6.Control box protection grade ≥IP65 7.Lamp holder luminous flux ≥29000lm 8.Bending performance: in line with GB 26755 bending performance requirements (10 wind) |
