Good Airtightness Secondary Chemical Protective Clothing With Snap Ring

Minimum Order Quantity : 1set Price : USD140
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: China Brand Name: Topsky
Model Number: RHF-II

Detail Information

Fabric Thickness: 0.45mm + 0.05mm Tensile Strength Performance: 16kN/m
Adhesion Strength: 1.28kN/m Seam Strength Performance: 1085N
Boot Sole Anti-slip Performance: 23° Fabric Tensile Strength Performance: 800N
Highlight:

Secondary Chemical Protective Clothing

,

Good airtightness Chemical Protective Clothing

Product Description

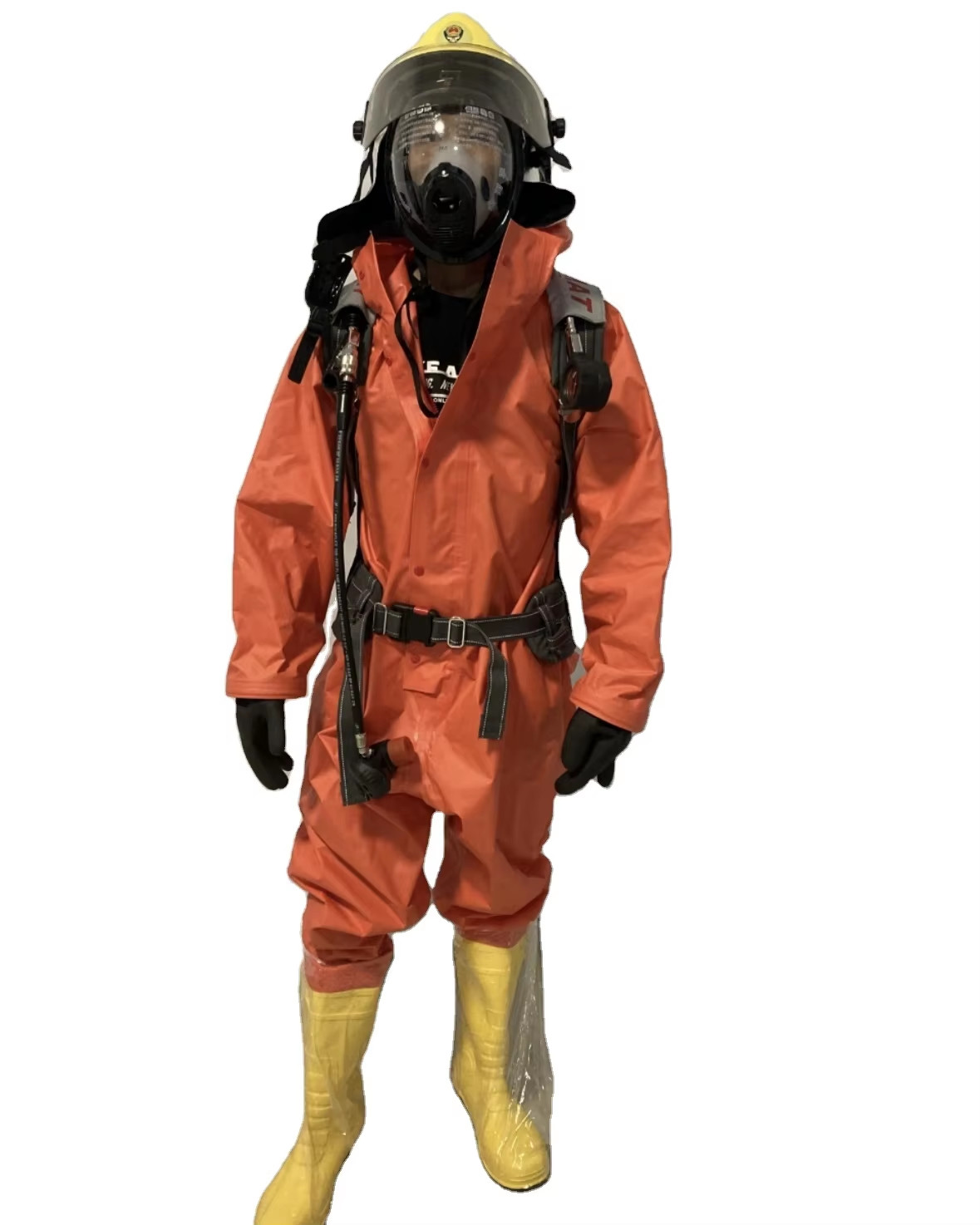

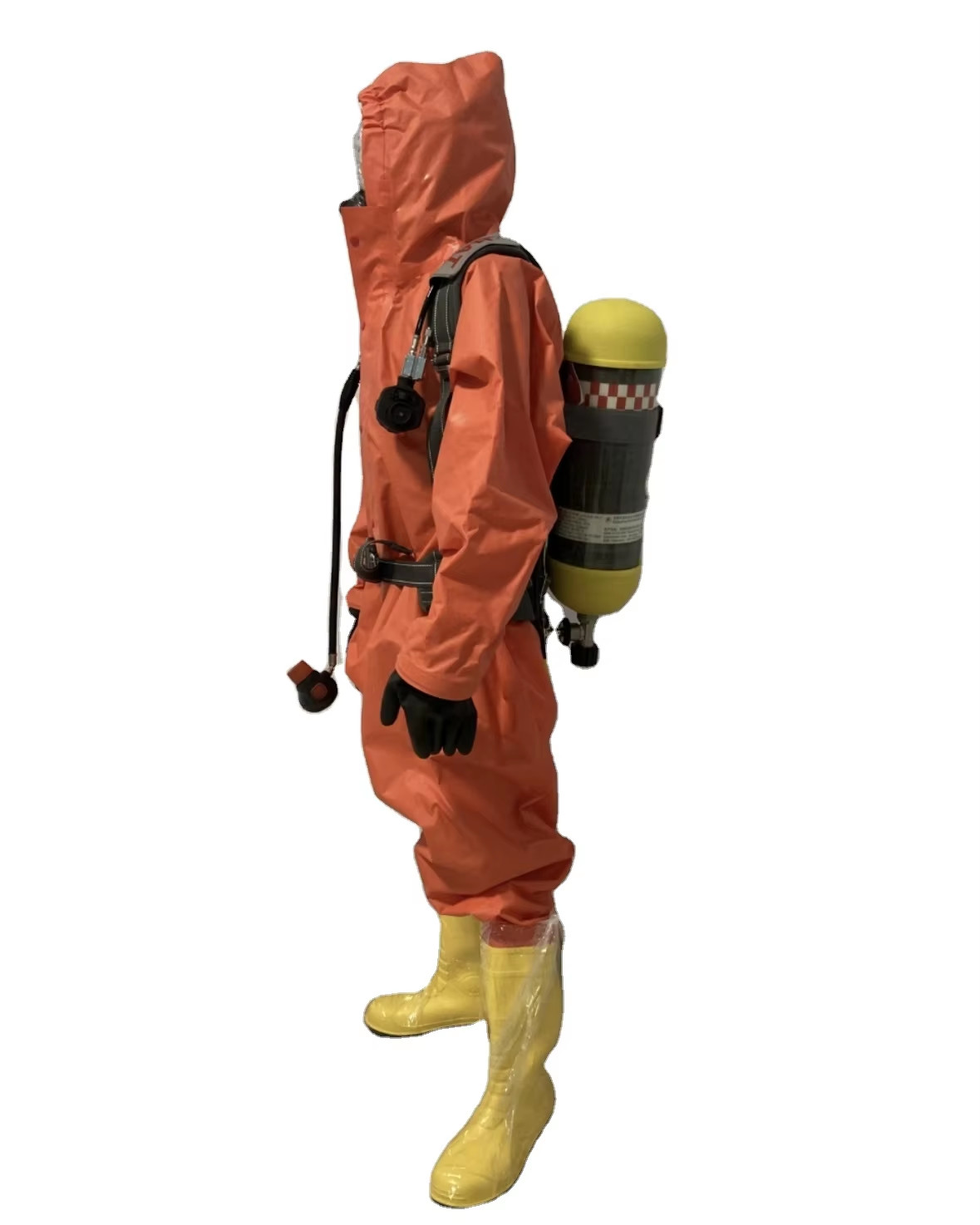

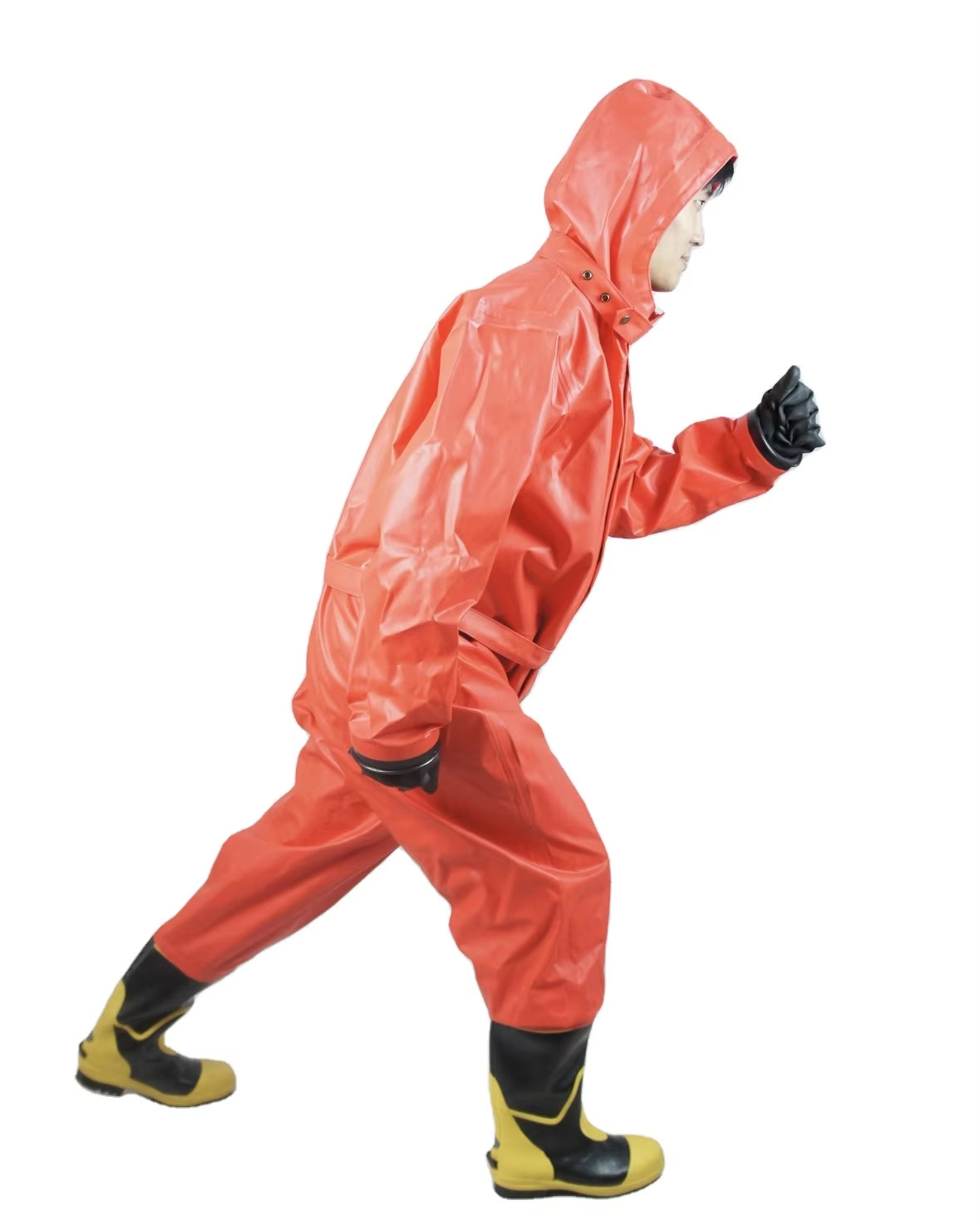

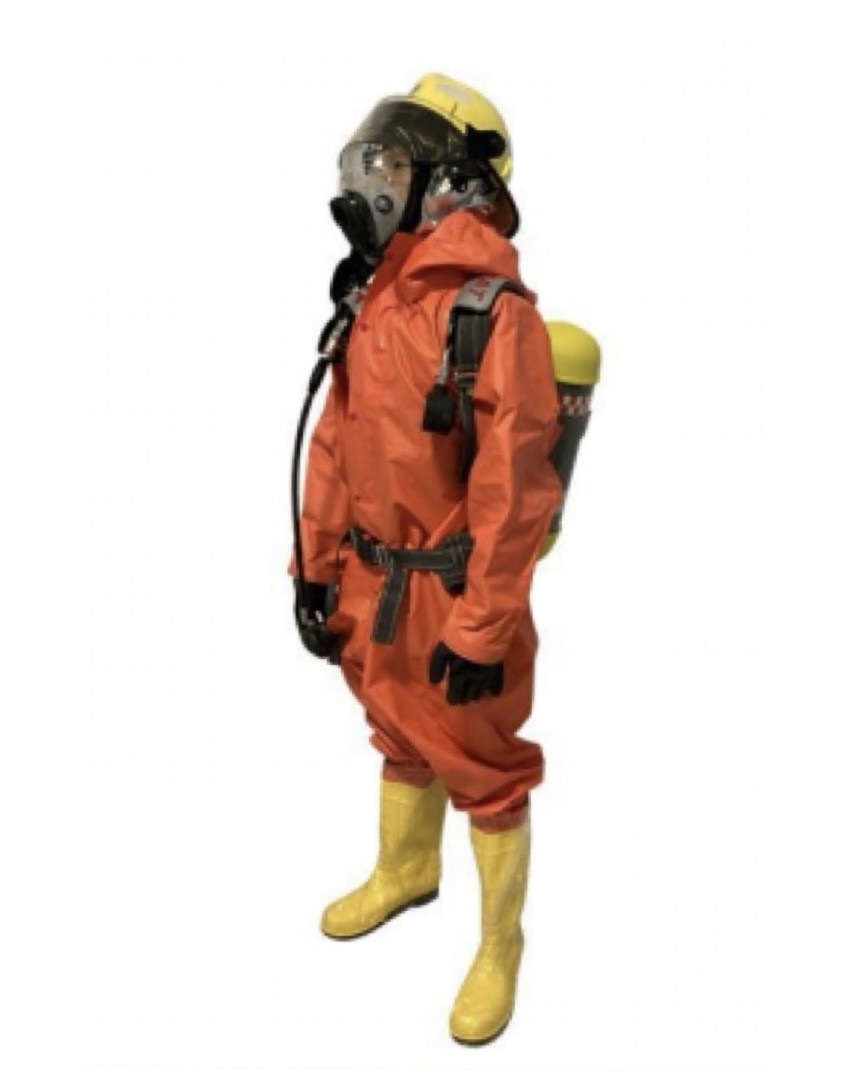

RHF-II Secondary Chemical Protective Clothing



I. Product Overview

The Type II chemical protective suit is mainly suitable for the scenes where various acid and alkali corrosive chemical substances leak during storage. It is a protective suit worn by workers during on-site operations in the presence of hazardous chemical substances or corrosive substances to protect themselves from hazardous chemicals or corrosive substances.



II. Product Features

  1. Scope of Application: The Type II chemical protective suit is mainly suitable for the scenes where various acid and alkali corrosive chemical substances leak during storage. It is a protective suit worn by workers during on-site operations in the presence of hazardous chemical substances or corrosive substances to protect themselves from hazardous chemicals or corrosive substances.
  2. Structural Features: The suit has a one-piece semi-closed structure, with the face exposed, and a gas mask can be worn. The acid and alkali resistant chemical protective gloves are connected in a detachable manner with a snap ring, which has good airtightness and is convenient for replacement. The sewing seams of the suit are sealed inside and outside with a 1.8 cm wide heat-sealing strip. The sealing strip is heat-pressed at a high temperature of 450-500°C by a high-temperature heat-sealing machine, which has good sealing performance.



III. Main Technical Indicators



Tensile Strength Performance: Warp direction ≥ 16kN/m, Weft direction ≥ 14kN/m.
Adhesion Strength: 1.28kN/m
Tearing Strength: Warp direction ≥ 109kN/m, Weft direction ≥ 93kN/m
Flame-retardant Performance: Flaming combustion ≤ 4.6s, Afterglow combustion ≤ 1s, Damaged length ≤ 9.7cm
Seam Strength Performance: ≥ 1085N.
Puncture Resistance of Acid and Alkali Resistant Chemical Protective Gloves: 23N.
Puncture Resistance of the Boot Sole: Left ≥ 1683N, Right ≥ 1690N.
5. Cutting Resistance: Not cut through.
Heat Aging Resistance Performance: After the heat aging resistance test at 125°C for 24h, the sample is not sticky and not brittle.
Electrical Insulation Performance: Breakdown voltage ≥ 5000V, Leakage current ≤ 0.1mA.
Anti-slip Performance of the Boot Sole: Initial sliding angle ≥ 23°.
9. Fabric Thickness: 0.45mm + 0.05mm.
10. Alkali Penetration Resistance Performance: 6.1mol/L NaOH, no penetration under a 10mm liquid column for 1h.
11. Fabric Tensile Strength Performance: Warp direction ≥ 800N, Weft direction ≥ 600N.
12. Gasoline Resistance Performance: Immersed in 120# gasoline for 30s, no cracks and no stickiness.
13. Abrasion Resistance Performance: After the sample is worn for 100 circles, there is no hole.
14. Flexibility Resistance Performance: Flexing > 1000 times without damage and breakage.
15. Splash Liquid Tightness Performance: Total stain area < 3 < Standard stain area.
16. Jet Liquid Tightness Performance: Total stain area < 3 < Standard stain area.
18. Fabric Tear Resistance Performance: 230N.
Fabric Cold Resistance Performance: The sample is folded 180°, the folded part is clamped with a fixture. After the cold resistance test at -25°C for 5min, it is taken out and quickly straightened, and there are no cracks on the surface.
Dexterity Performance of Acid and Alkali Resistant Chemical Protective Gloves: Meeting the requirements of Grade 1 specified in Table 9 of GA7-2004. The diameter of the smallest test rod completed under the test conditions is 5.0mm. Performance grade is 5.
21. Acid Penetration Resistance Performance: 98% sulfuric acid, 60% nitric acid, 30% hydrochloric acid, 40% sodium hydroxide > 300min without penetration.
Impact Resistance of the Boot Toe: After the static pressure test of 10.78kN and the impact test with an impact hammer of 23kg mass and a drop height of 300mm, the clearance height ≥ 21mm.

Good Airtightness Secondary Chemical Protective Clothing With Snap Ring 0
