Transparent PC Material First Level Chemical Protective Clothing Fully Enclosed Structure

Minimum Order Quantity : 1set Price : USD900
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: China Brand Name: Topsky
Model Number: RHF-I

Detail Information

Fabric Thickness: 0.45mm+0.05mm Weight: 6.4kg
Tensile Strength Performance: 16kN/m Adhesion Strength: 1.25kN/m
Joint Strength: 1006N Boot Sole Anti-slip Performance: 23°
Breakdown Voltage: 5000v
Highlight:

Fully enclosed structure Chemical Protective Clothing

,

Transparent PC Chemical Protective Clothing

,

First Level Chemical Protective Clothing

Product Description

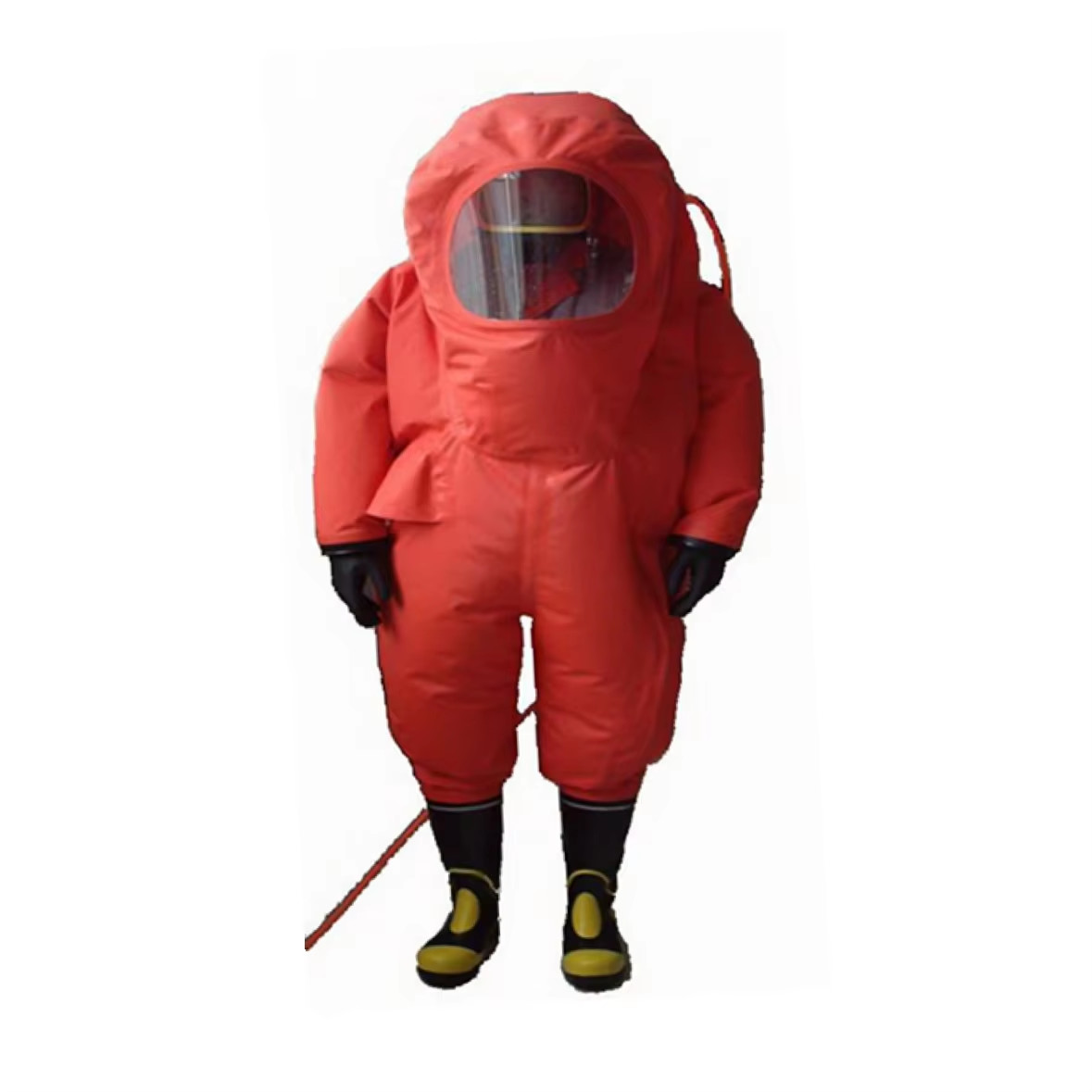

RHF-I First Level Chemical Protective Clothing



I. Product Overview

The Class I chemical protective clothing is mainly applicable to the leakage sites of various acid and alkali corrosive chemicals in storage. It is the protective clothing worn by workers during on-site operations in the presence of hazardous chemical substances or corrosive substances to protect themselves from the hazardous chemicals or corrosive substances.



II. Product Features

  1. Scope of Application: The Class I chemical protective clothing is mainly applicable to the leakage sites of various acid and alkali corrosive chemicals in storage. It is the protective clothing worn by workers during on-site operations in the presence of hazardous chemical substances or corrosive substances to protect themselves from hazardous chemicals or corrosive substances.
  2. Structural Features: The clothing has a one-piece fully enclosed structure. An external backpack can be used to carry a positive pressure air breathing apparatus. The head is equipped with a single-way ventilation valve (for exhaust). The seams are firm and tight, and are connected and sealed under high pressure by a high-temperature heat-sealing machine. The face shield is made of hard transparent PC material (impact-resistant and resistant to acids and alkalis). The acid and alkali resistant chemical protective gloves are connected in a detachable manner with a snap ring, which has good airtightness and is convenient for replacement.



III. Main Technical Indicators




Tensile Strength Performance: Warp direction ≥ 16 kN/m, Weft direction ≥ 14 kN/m.
Overall Air Tightness: ≤ 213 Pa
Adhesion Strength: ≥ 1.25 kN/m
Tear Strength: Warp direction ≥ 101 kN/m, Weft direction ≥ 101 kN/m.
Heat Resistance and Aging Performance: After the heat resistance and aging performance test at 125 °C for 24 h, the sample is neither sticky nor brittle.
Seam Strength Performance: ≥ 1006 N.
Flame Retardant Performance: Flame duration ≤ 5.8 s, After-flame time ≤ 1.0 s, Damage length ≤ 9.9 cm
Cold Resistance Performance of the Fabric: The sample is folded 180°, the folded part is clamped with a fixture. After the cold resistance performance test at -25 °C for 5 min, it is taken out and quickly straightened, and there are no cracks on the surface.
Puncture Resistance Performance of Acid and Alkali Resistant Chemical Protective Gloves: ≥ 22 N.
Dexterity Performance of Acid and Alkali Resistant Chemical Protective Gloves: In line with the requirements of Grade 1 specified in Table 9 of GA7-2004 or XF7-2004, Performance Grade 5: The minimum diameter of the test rod completed under the test conditions is 5.0 mm.
Puncture Resistance Performance of the Boot Sole: Left side ≥ 1670 N, Right side ≥ 1674 N.
Cut Resistance Performance: Not cut through.
Electrical Insulation Performance: Breakdown voltage ≥ 5000 V, Leakage current 0.1 mA.
Anti-slip Performance of the Boot Sole: Initial sliding angle ≥ 23°.
Acid Resistance and Permeation Performance: 98% sulfuric acid, 30% hydrochloric acid, 60% nitric acid, 40% sodium hydroxide > no permeation within 240 min, Grade: 3.
Fabric Thickness: 0.45 mm + 0.05 mm.
Alkali Resistance and Permeation Performance: 6.1 mol/L NaOH, no permeation under a 10 mm liquid column for 1 h.
Anti-smashing Performance of the Boot Toe: After the static pressure test of 10 kN and the impact test with an impact hammer of 23 kg in mass and a falling height of 300 mm, the clearance height ≥ 21 mm.
Mass: ≤ 6.4 Kg



Company Information



Beijing Topsky Intelligent equipment Group Co.,Ltd.. (stock code: 836307) was founded in 2003, committed to making the world safer with innovative equipment, and determined to become a continuous leader in global high-end safety equipment.

Our company has independent R&D and technology promotion capabilities, and has one R&D and production building. Headquartered in Jinqiao Industrial Base, Zhongguancun High-tech Park, it is a national high-tech enterprise with a registered capital of RMB 46,514,300. Our company has independent R&D and manufacturing capabilities. Located in Beijing Economic Development Zone, the 3-story R&D building covers an area of 1,500 square meters, the production building is 1,800 square meters, and the third-phase production building is nearly 3,000 square meters under construction.

Our innovative technologies, services and systems are dedicated to serving the firefighting, law enforcement agencies, safety supervision bureaus, coal mines, petrochemicals,. It involves the research and development of high-end equipment such as drones, robots, unmanned ships, special equipment, emergency rescue equipment, law enforcement equipment, and coal mine equipment.

So far, many products have been exported to more than 10 countries.

Transparent PC Material First Level Chemical Protective Clothing Fully Enclosed Structure 0
