Foam Mixing Device High Lift Water Pump Turbocharged Forest Fire Pump Turbocharging Device

Minimum Order Quantity : 1set Price : USD7500
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: China Brand Name: Topsky
Model Number: TSP5.0

Detail Information

Size: 875* 715* 585 Mm Weight: 106.5kg
Operating Temperature: -30° C ~70° C Maximum Pressure: 5.0MPa
Standard Flow Rate: 85 L/min Lift: 500m
Highlight:

Foam mixing device Water Pump

,

Turbocharged Forest Fire Pump

,

High Lift Water Pump

Product Description

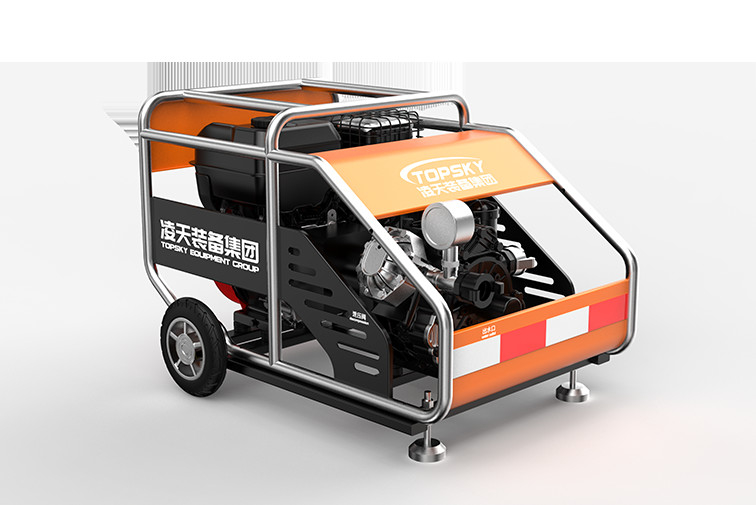

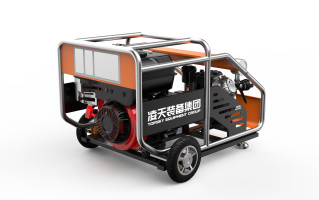

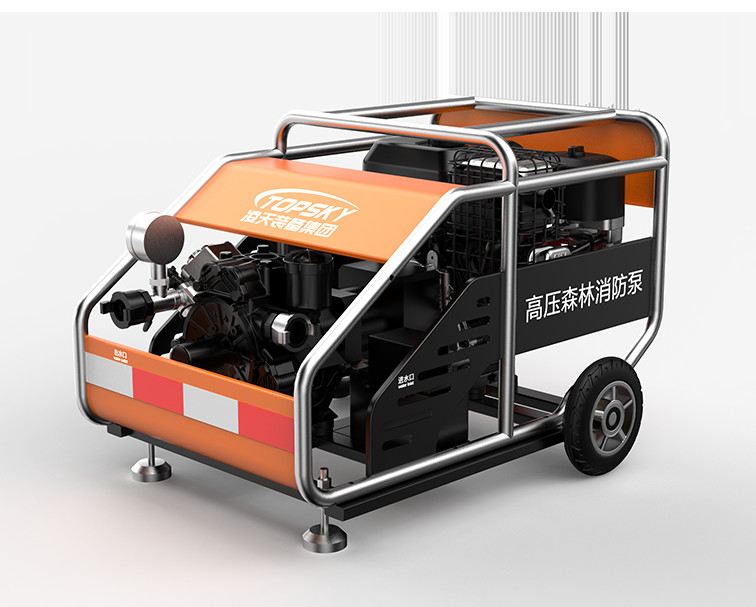

TSP5.0 High Lift Water Pump Turbocharged Forest Fire Pump



I. Product Overview

The high-pressure forest fire pump is a miniature engine static turbocharging device developed by our company to adapt to the special working environment of fire fighting. It realizes the advantages of energy saving and environmental protection, stable output, strong power, and long working hours for engines with the same displacement. It increase the power of the engine by more than 1.5 times under the same displacement, making the pump flow larger, the head higher, the weight lighter and the conveying distance farther, which cannot be achieved by installing ordinary engines. The pump set adopts the engine and diaphragm pump, with light weight, compact, small footprint, and good stability. It combines hand-held and hand-pulled modes, making it easy to carry and operate. Users only need simple training to it proficiently. It can be used in forest fire fighting to convey water sources to the fire scene for fire fighting over long distances. The high-pressure forest fire for long-distance conveyance is also suitable for small and medium-sized towns, rural areas, factories, and mines where fire trucks cannot arrive in time or cannot reach center of the fire for fire fighting.



II. Product Features

1.  Intelligent monitoring system: Can achieve GPS positioning, pressure monitoring, temperature monitoring, 4G transmission;







2.  Foam mixing device Can provide foam ratio adjustment for the pump group;

3.  Turbocharging device: Direct current enhanced vortex forced fan, effectively ensuring engine power and cylinder cooling



III. Main Technical Indicators





3.1 Pump Technical Specifications:

1. Range ( Foam ): 18m

2. Range ( Water ): 25m

3. Working Pressure: 3.0 MPa

4. Maximum Pressure: 5.0 MPa

5. Standard Flow: 85 L/min

6. Head: 500 m

7. Maximum Suction: 7 m

8. Inlet Diameter: 32 mm

9. Outlet diameter: 40mm

10. Overall Dimensions: 875×715×585 mm

11. Total Weight: 106.5 kg

3.2 Engine Technical Specifications:

1. Engine Type: Air-cooled, Four-stroke, Turbo

2. Displacement: 420cc

3. Maximum Power: 13.5HP

4. Starting Methods: Electric, Pull-startIII.

3.3 Network Transmission:

1. Measurement Accuracy: 0.5 class

2. Pressure Range: 0-6 MPa

3. Operating Temperature: -30°C to 70°C

4. 4G communication, connectable to APP and platforms, comes with a 4G data card, data upload interval is 20 seconds supports third-party platform access.



Foam Mixing Device High Lift Water Pump Turbocharged Forest Fire Pump Turbocharging Device 0

Company Information



Beijing Topsky Intelligent equipment Group Co.,Ltd.. (stock code: 836307) was founded in 2003, committed to making the world safer with innovative equipment, and determined to become a continuous leader in global high-end safety equipment.

Our company has independent R&D and technology promotion capabilities, and has one R&D and production building. Headquartered in Jinqiao Industrial Base, Zhongguancun High-tech Park, it is a national high-tech enterprise with a registered capital of RMB 46,514,300. Our company has independent R&D and manufacturing capabilities. Located in Beijing Economic Development Zone, the 3-story R&D building covers an area of 1,500 square meters, the production building is 1,800 square meters, and the third-phase production building is nearly 3,000 square meters under construction.

Our innovative technologies, services and systems are dedicated to serving the firefighting, law enforcement agencies, safety supervision bureaus, coal mines, petrochemicals,. It involves the research and development of high-end equipment such as drones, robots, unmanned ships, special equipment, emergency rescue equipment, law enforcement equipment, and coal mine equipment.

So far, many products have been exported to more than 10 countries.

Foam Mixing Device High Lift Water Pump Turbocharged Forest Fire Pump Turbocharging Device 1
