Gasoline Engine Power Mobile High Pressure Fine Water Mist Fire Extinguishing Device

Minimum Order Quantity : 1set Price : USD3000
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: China Brand Name: Topsky
Model Number: 6MSW-10-6

Detail Information

Engine Power: 1.86hp Maximum Lift: 14m
Effective Horizontal Range: 9m Effective Vertical Range: 6.6m
Water Bag Volume: 20L Starting Mode: Manual Starting And Electric Starting
Highlight:

Gasoline Engine Power Fire Extinguishing Device

,

Mobile High Pressure Fire Extinguishing Device

,

Fine Water Mist Fire Extinguishing Device

Product Description

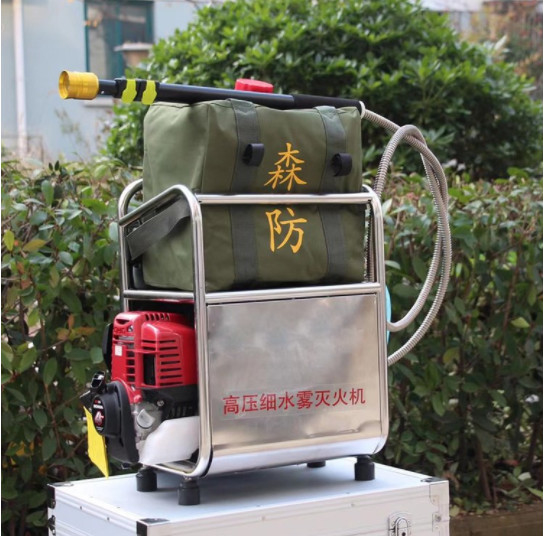

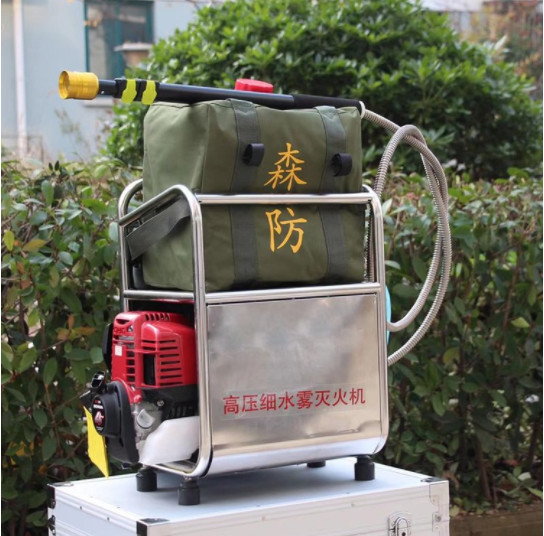

6MSW-10-6 Mobile High-pressure Fine Water Mist Fire Extinguishing Device



I. Product Overview

The 6MSW-10-6 high-pressure fine water mist technology has been successfully applied in the field of fire fighting and extinguishing, and is hailed as a revolution in the field of fire protection technology. When applied in the environmental protection field, it has opened up a new era of desulfurization, denitrification and dust removal technology. When applied in the field of coalbed methane extraction and utilization, it has achieved a new breakthrough in the safe production of coal mines, completely eradicating the hazards of coal mine gas and coal dust. The technical products and solutions cover multiple fields such as municipal environmental protection, decontamination and disinfection of chemical substances, prevention and control of nuclear, biological and chemical pollution, degradation of toxic gases, dust suppression in various scenarios, marine industry, and a variety of military industries.

High-pressure fine water mist fire protection products have the advantages of high efficiency in water saving, safety and environmental protection, and a wide range of applications. They have a dual fire extinguishing effect of cooling and smothering; they can wash away smoke and toxic gases and shield thermal radiation; they can effectively extinguish Class A, Class B, Class C and electrical fires. Due to its advanced fire extinguishing mechanism, its use is basically not limited by the place, and it can be applied on land, at sea and in space.

In order to ensure the normal and safe operation of high-pressure fine water mist fire protection products, before use, please read this instruction manual in detail, strictly abide by the operation procedures, and carefully maintain and service the products to keep them in good condition at all times.



II. Product Features

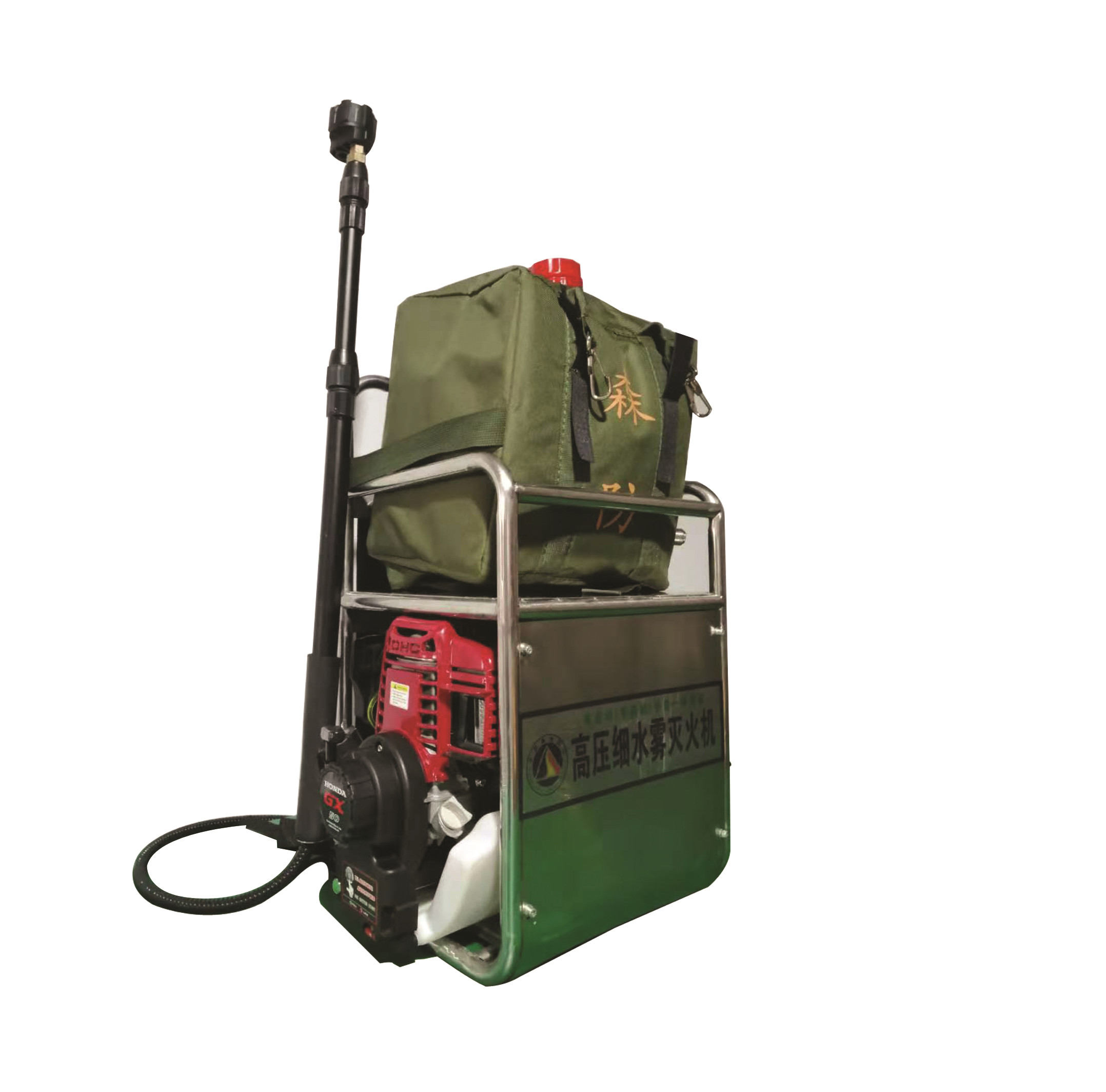

The backpack-type high-pressure fine water mist fire extinguishing device is characterized by being light and flexible.
Using a gasoline engine as the power source and the water in the main body water tank and the separated water tank as the fire extinguishing medium, it can extinguish Class A, Class B, Class C and electrical equipment fires.
This series of products has the characteristics of light weight, small size, easy starting, reliable performance, small water consumption, and strong sustainable fire extinguishing ability.
It is suitable for multi-soldier team operations. Equipped with a high-pressure fine water mist combined spray gun, it can achieve rapid conversion between long and short distances, and it causes no pollution to the environment and no harm to the human body.



III. Main Technical Indicators





  • Engine: Air-cooled four-stroke engine
  • Engine power: 1.86hp
  • Starting method: Manual starting and electric starting
  • Maximum lift: 14m
  • Effective horizontal range: 9m
  • Effective vertical range: 6.6m
  • Normal temperature starting time: 7s
  • Water bag quality requirements: With inspection and testing reports
  • Water bag volume: 20L
  • Columnar fine water mist (Range: 9m, Flow rate: 6L/min, Working pressure: 10MPa)
  • Fan-shaped fine water mist (Range: 8.1m, Flow rate: 5.2L/min, Working pressure: 10MPa)
  • Medium-range columnar mist (Range: 7.5m, Flow rate: 3.5L/min, Working pressure: 6MPa)
  • Deploying and withdrawing fine water mist (Range: 7.4m, Flow rate: 6L/min, Working pressure: 10MPa)
  • Short-range columnar mist (Range: 5m, Flow rate: 3.5L/min, Working pressure: 6MPa)
  • Continuous operation performance: Continuously operate for 8 hours under the spraying working condition. The engine does not automatically stall, and there is no water leakage, oil leakage, abnormal vibration or noise in the whole machine, and the fasteners are not loose.
  • Sprinkler head: The sprinkler head can realize the conversion between the whole machine spraying water column, spraying mist and spraying fan-shaped fine water mist.
  • Discharge system: In line with the requirements of GB 19724

Gasoline Engine Power Mobile High Pressure Fine Water Mist Fire Extinguishing Device 0



Company Information



Beijing Topsky Intelligent equipment Group Co.,Ltd.. (stock code: 836307) was founded in 2003, committed to making the world safer with innovative equipment, and determined to become a continuous leader in global high-end safety equipment.

Our company has independent R&D and technology promotion capabilities, and has one R&D and production building. Headquartered in Jinqiao Industrial Base, Zhongguancun High-tech Park, it is a national high-tech enterprise with a registered capital of RMB 46,514,300. Our company has independent R&D and manufacturing capabilities. Located in Beijing Economic Development Zone, the 3-story R&D building covers an area of 1,500 square meters, the production building is 1,800 square meters, and the third-phase production building is nearly 3,000 square meters under construction.

Our innovative technologies, services and systems are dedicated to serving the firefighting, law enforcement agencies, safety supervision bureaus, coal mines, petrochemicals,. It involves the research and development of high-end equipment such as drones, robots, unmanned ships, special equipment, emergency rescue equipment, law enforcement equipment, and coal mine equipment.

So far, many products have been exported to more than 10 countries.

Gasoline Engine Power Mobile High Pressure Fine Water Mist Fire Extinguishing Device 1
