Multi Functional Fire Fighting Equipment High Crushing Ability Forest Isolation Zone Opens Up Vehicles
Multi Functional Fire Fighting Equipment High Crushing Ability Forest Isolation Zone Opens Up Vehicles Multi Functional Fire Fighting Equipment High Crushing Ability Forest Isolation Zone Opens Up Vehicles Multi Functional Fire Fighting Equipment High Crushing Ability Forest Isolation Zone Opens Up Vehicles Multi Functional Fire Fighting Equipment High Crushing Ability Forest Isolation Zone Opens Up Vehicles
Contact Now

Multi Functional Fire Fighting Equipment High Crushing Ability Forest Isolation Zone Opens Up Vehicles

Minimum Order Quantity : 1set Price : USD86000
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: China Brand Name: Topsky
Model Number: GLC/R-JM250-100HP

Detail Information
Size: 4300mm* 2250mm* 2250mm Weight: 5500kg
Maximum Speed: 12km/h Power: ≥74kw
Climbing Ability: 20° Wading Depth: 500mm
Maximum Crushed Tree Diameter: 250mm Remote Control Distance: 15m
Highlight:

Forest Isolation Zone Opens up Vehicles

,

Multi Functional fire fighting equipment

,

High Crushing Ability fire fighting equipment

Product Description

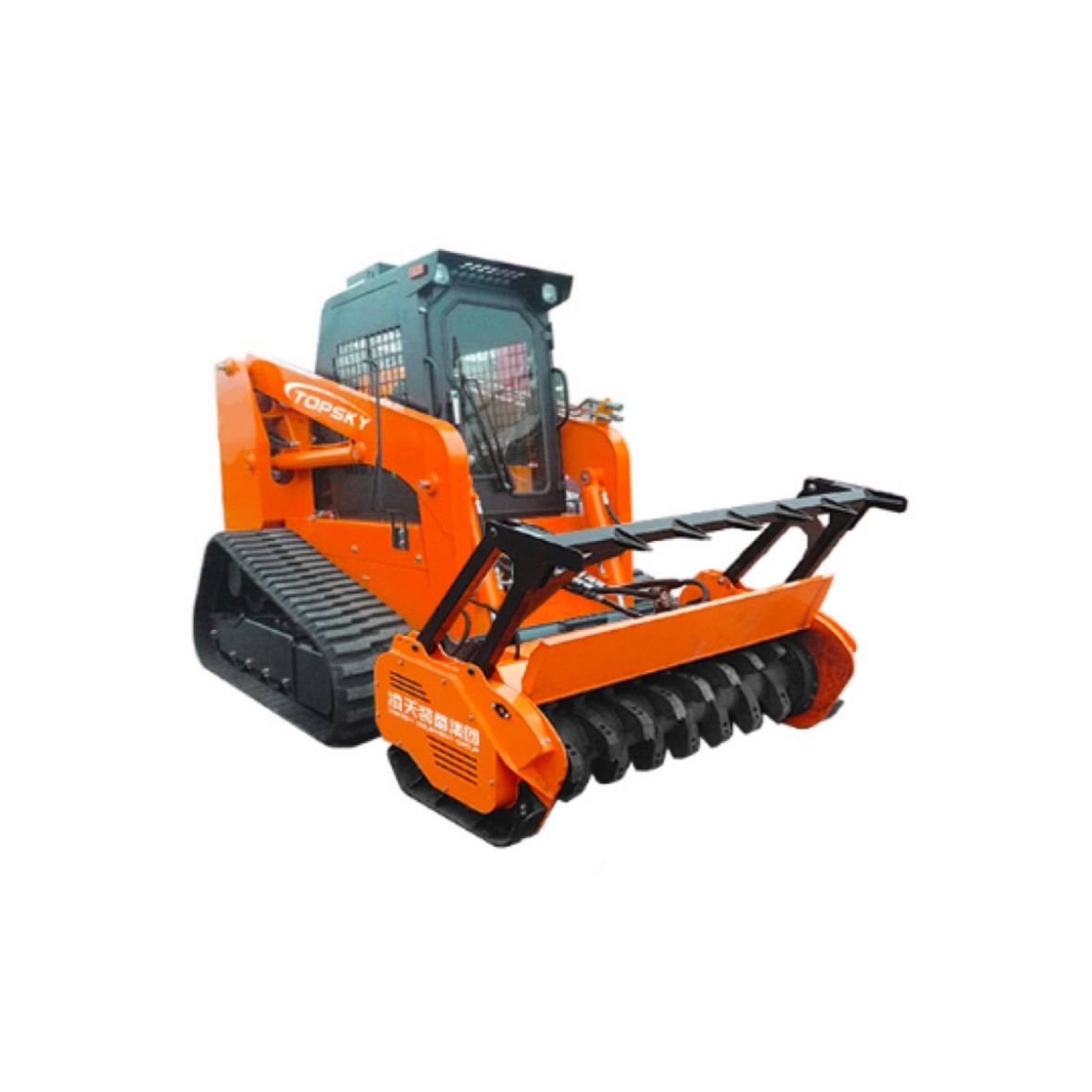

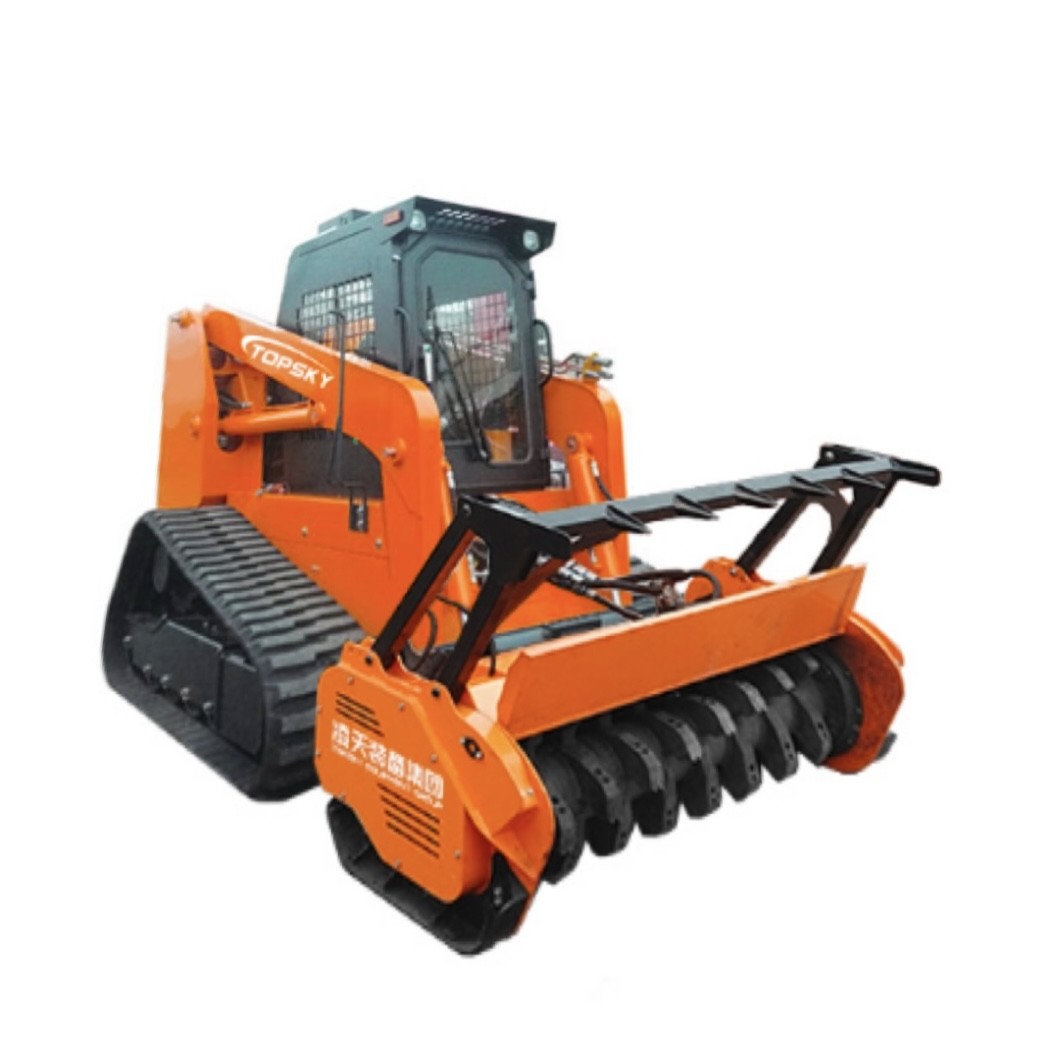

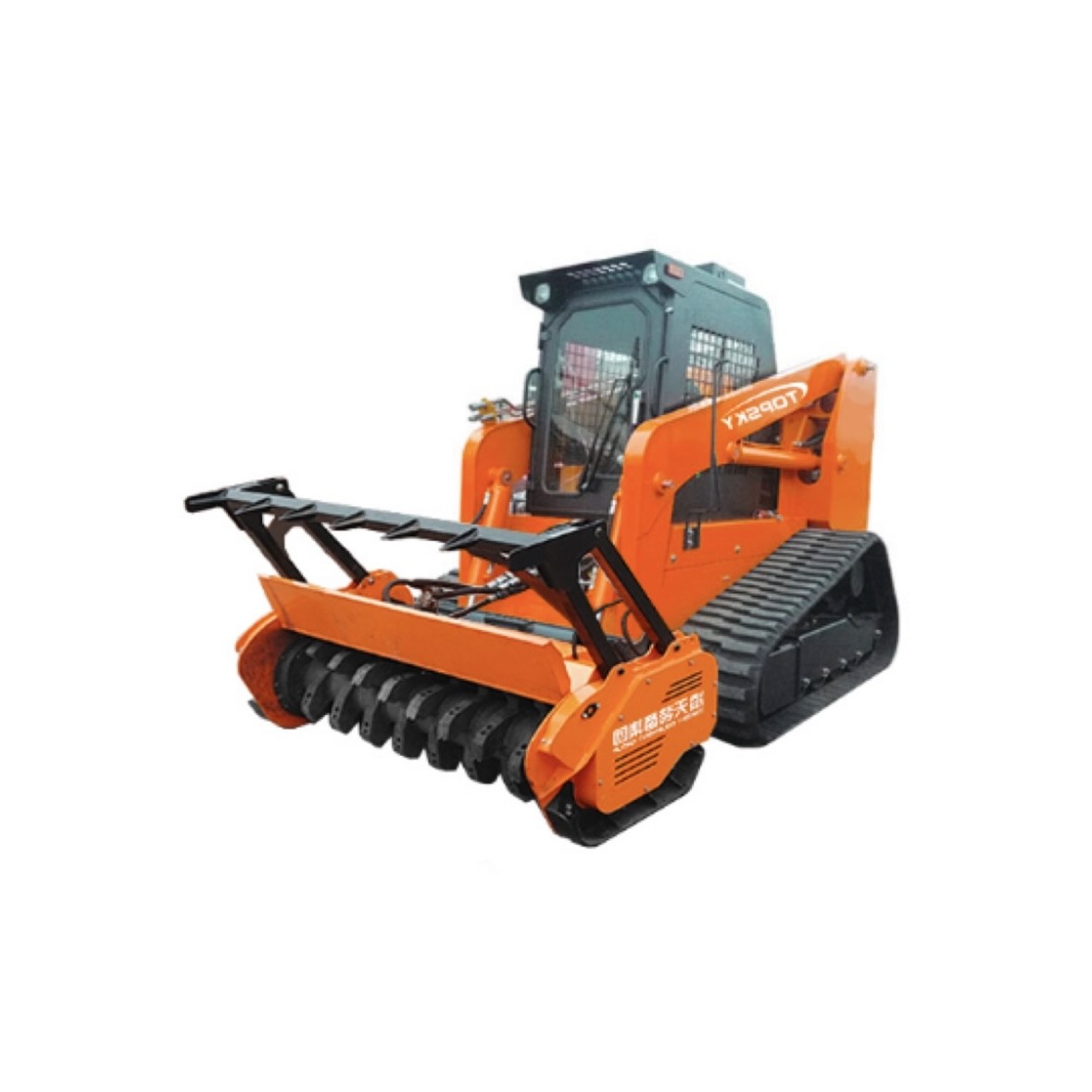

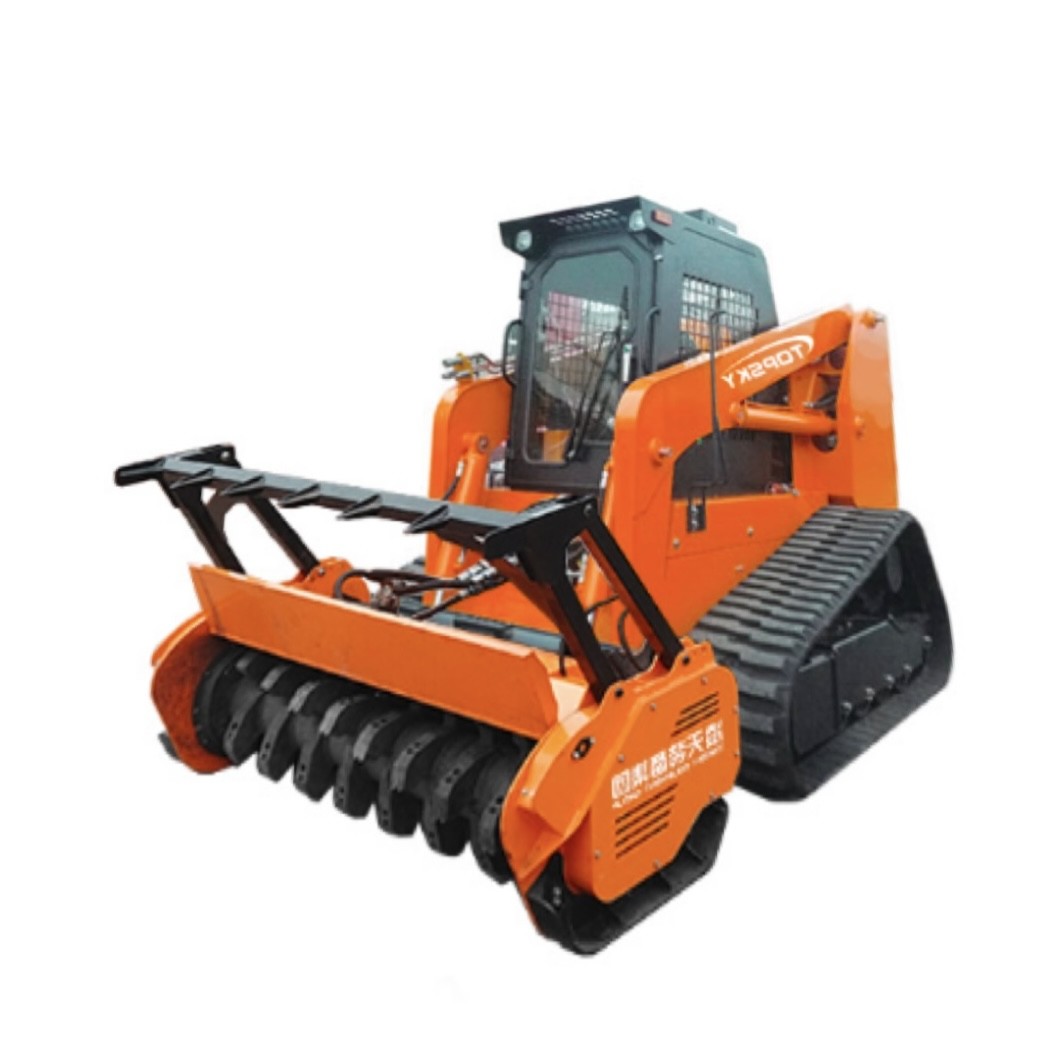

Forest isolation zone opens up vehicles



I. Product Overview

The Forest Isolation Belt Development Vehicle is composed of an isolation belt development machine module, large blunt blade cutting module, heavy-duty forest grab bucket, bucket, quick-change mechanism, tracked walking mechanism, arm lifting device, cab, electrical hydraulic system, and wireless remote control. The equipment a double triangular crawler walking mechanism, capable of constructing fire barriers by crushing combustible vegetation (trees, shrubs, grass) in dense forests, shrublands, and grasslands. It can crush trees with diameters ≥250mm (≥80mm for continuous crushing) and has no height restrictions on vegetation. Primary applications include establishing fire isolation zones, maintaining fire escape routes, creating temporary rescue passages, setting up safety islands, assisting in fire scene cleanup, and constructing soil isolation zones in mountainous forest areas.



III. Product Features

  1. Multi-functional
    Firefighting, barrier construction, and towing operations. Capable of both creating forest isolation zones and executing firefighting/towing tasks.
  2. Multi-mode
    Manned driving + unmanned remote control (dual-mode). Remote control distance ≥1,000m in wireless mode.
  3. High Crushing Capacity
    Crushes trees with diameters ≥250mm.
  4. High Traction Force
    Total machine traction ≥45kN.
  5. High Mobility
    Maximum speed ≥12km/h, powered by a 74kW engine. Offers hydraulic power for safe, rapid, and prolonged complex rescue operations across diverse terrains.
  6. Highly Integrated Detection
    Monitors ≥14 gas types and ≥2 environmental parameters (temperature, humidity).
  7. High-Quality Imaging
    ≥3 cameras with gimbal-mounted 360° panoramic remote viewing via the controller.
  8. Modular Expansion System
    Reserved ultra-high-pressure interfaces: two 72MPa outputs (0.7L/min ultra-high pressure, 4L/min low pressure). Supports external tools (hydraulic disc saws, ultra-high-pressure demolition tools, hydraulic generators).
  9. High Intelligence
    Voice control, autonomous following, bidirectional voice communication, 5G remote control, redundant communication, cloud platform connectivity, and real-time GPS positioning.
  10. Cloud Platform
    Remote monitoring of equipment status, gas/video data, statistical analysis, automatic validity checks, and expiration alerts for comprehensive lifecycle management.

IV. Main Technical Indicators



3.1 Robot Machine


  1. Name: Forest Isolation Zone Development Vehicle
  2. Model: GLC/R-JM250-100HP
  3. Functions: Fire barrier construction, remote-controlled water cannon integration, modular attachments (hooks, mowers, shovels), gas detection, and hydraulic tool expansion.
  4. Standards: GA 892.1-2010 (Fire Truck Body – Part 1: General Technical Conditions).
  5. IP Rating: IP65.
  6. Dimensions (w/o modules): ≤2,950mm (L) × 1,920mm (W) × 2,250mm (H).
  7. Dimensions (with barrier module): ≤4,300mm (L) × 2,250mm (W) × 2,250mm (H).
  8. Weight: ≤5,800kg.
  9. Speed: 7–12km/h (driving), 2km/h (operation).
  10. Traction: ≥45kN.
  11. Max Tree Diameter: ≥250mm.
  12. Engine: Diesel, ≥74kW.
  13. Fuel Tank: ≥90L.
  14. Hydraulic Flow: 70L/min (standard), 135L/min (high).
  15. Track Model: 320×84.
  16. Continuous Operation: ≥8h.
  17. Departure Angle: 27°.
  18. Track Length: 1,580mm.
  19. Ground Pressure: 45kPa.
  20. Ground Clearance: 205mm.
  21. Straight Deviation: ≤0.30%.
  22. Gradient: ≥20°.
  23. Obstacle Height: ≥220mm.
  24. Roll Stability: ≥40°.
  25. Wading Depth: ≥500mm.
  26. Reliability: Passed 16-hour continuous stability test.
  27. Remote Range: 1,110m.
  28. Video Range: 1,110m.
  29. 360° Panoramic View: Certified by National Fire Equipment Quality Supervision & Inspection Center.
  30. Attitude Monitoring: Real-time tilt/roll/azimuth display for both cab and remote operators.
  31. Fire-Resistant Tracks: Flame-retardant, anti-static, high-temperature rubber (certified by National Coal Mine Explosion-Proof Safety Center).
  32. Control Modes: Local manual + remote control. Cab features 360° display, attitude indicators, and alarm systems. Remote controller: handheld, 10-inch touchscreen with encrypted wireless transmission.
