Small in Size and Heavy in Load Firefighting Scout Drone Voyage Duration

Minimum Order Quantity : 1set Price : USD11000
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: China Brand Name: Topsky
Model Number: LT-400

Detail Information

Maximum Take-off Weight: 18kg Maximum Payload: 5kg
Maximum Flight Speed: 23m/s Working Temperature: -20℃~50℃
Battery Capacity: 30000mah No-load Maximum Sailing Time: 45min

Product Description

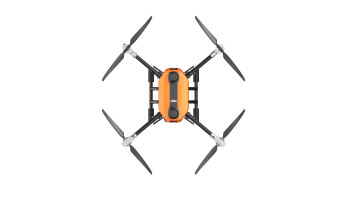

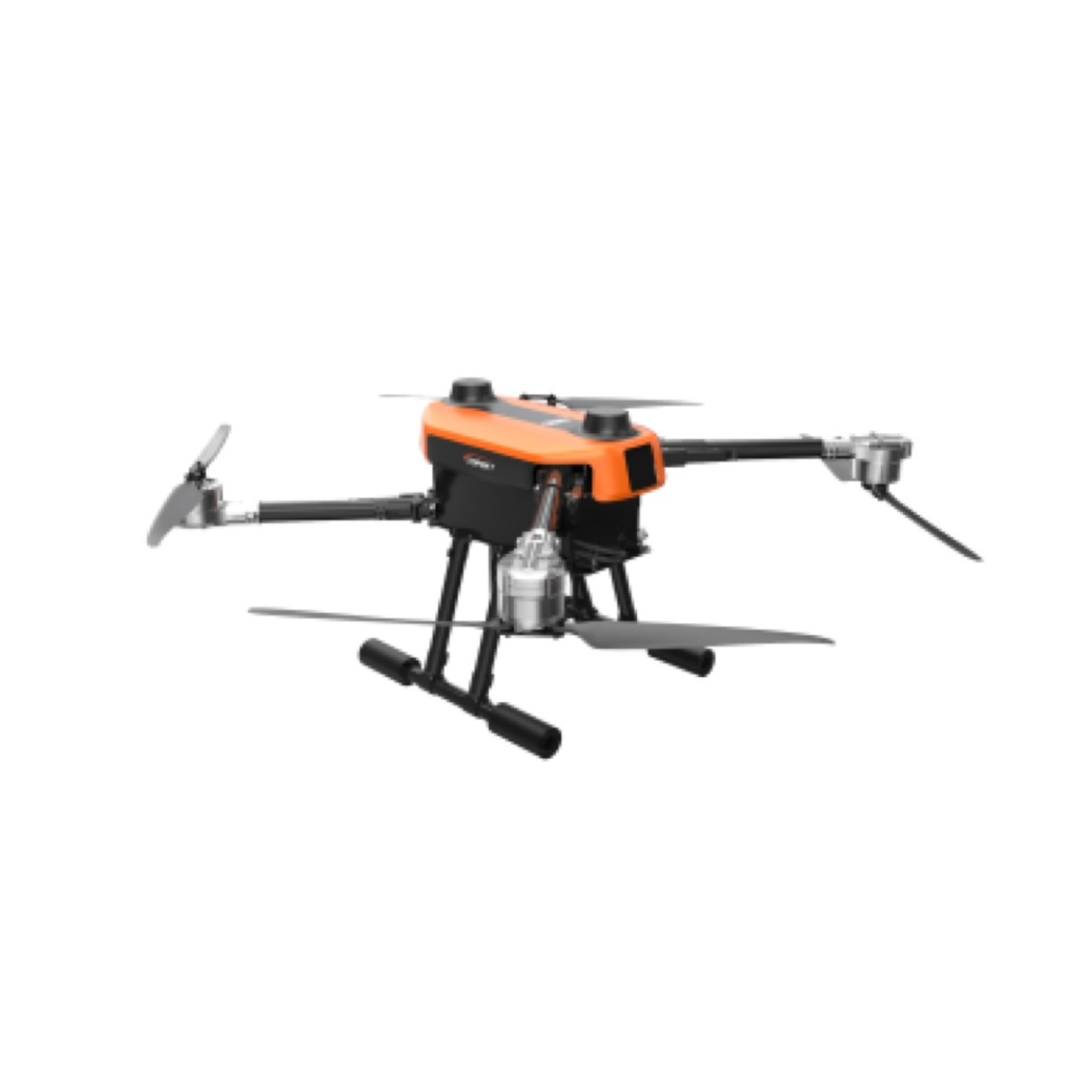

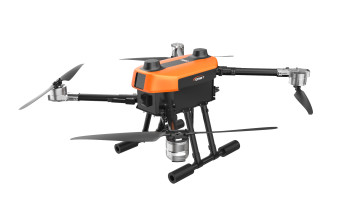

Firefighting Scout Drone



I. Product Overview



The Scout drone(UAV) is a universal flight platform that can carry various mission payloads to perform corresponding tasks, such as loudspeakers, searchlights, gas detectors, and life detection radars. The F400 reconnaissance drone platform can be widely used in fire emergency scenarios by mounting different payloads.

The main body of the Scout drone(UAV) is made of carbon fiber material, and the arm can be quickly folded. The whole machine is lightweight and compact, making it easy to carry and quickly deploy. There is a universal load interface under the fuselage, which can quickly replace different task loads. The universal load interface can carry a maximum task load of 5kg and has excellent load capacity. The whole machine has an unloaded endurance of more than 45 minutes, and the ultra long endurance can meet most application scenarios. The F400 reconnaissance drone platform is equipped with RTK and millimeter wave radar, which can achieve centimeter level positioning accuracy and obstacle avoidance capability.




II. Scope of Application

Fire emergency response

environmental monitoring

Line inspection



III. Product Features

1. Small size

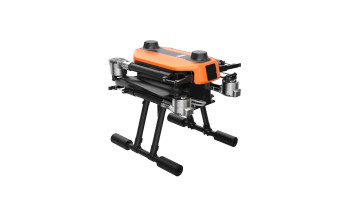

The arm and propeller blades are foldable, occupying less space after folding;

2. Heavy load

The maximum load that can be mounted is 5kg;

3. Flight duration

Equipped with a large capacity battery and efficient motor, the fully loaded flight time is greater than 20 minutes;

4. Widely applicable:

Can be applied to fire emergency, environmental monitoring, and line inspection

IV. Main Technical Indicators



  1.

    Scout drone(UAV)

    1. Maximum takeoff weight: 18kg

    2. Maximum payload: 5kg

    3. Maximum empty flight time: 45 minutes

    4. Maximum flight speed: 23m/s

    5. Maximum wind resistance level: Level 6

    6. Battery capacity: 30000mah

    7. Obstacle avoidance method: Millimeter wave radar obstacle avoidance

    8. Working temperature: -20 ℃~50 ℃
