Widely Applicable Heavy Load Fire Extinguishing Drone Flight Duration

Minimum Order Quantity : 1set Price : USD57000
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: China Brand Name: Topsky
Model Number: LT-F100

Detail Information

Maximum Payload: 15m/s Maximum Take-off Weight: 210kg
Maximum Climbing Speed: 5m/s Maximum Falling Speed: 4m/s
Maximum Take-off Altitude: 4000m Wheelbase: 3450mm (±20)
Power Battery: 18S 36000*6

Product Description

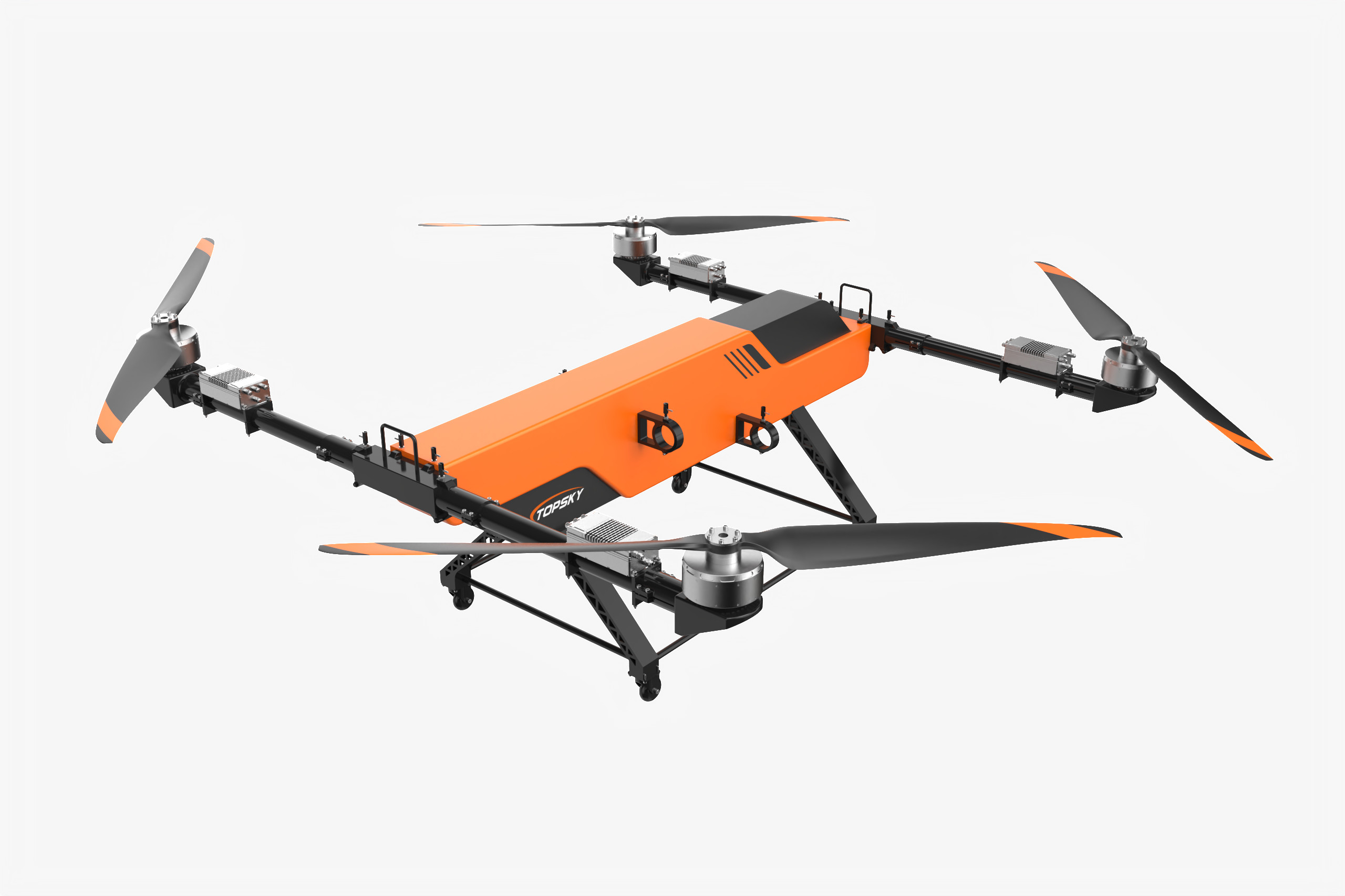

Heavy Load Fire Extinguishing Drone



I. Product Overview



The firefighting drone has a powerful power system and reliable flight control system. It is a fire extinguishing unmanned aerial vehicle platform with high load capacity, long endurance, strong wind resistance, and high reliability. The whole machine is designed with carbon fiber materials and magnesium aluminum alloy, and the arm is foldable, supporting rapid expansion and easy operation; Body profile design, supporting the mounting of various payloads such as tethered water guns, fire extinguishers, etc; Equipped with a safe and reliable high-performance flight control system internally, the flight attitude is stable,; Support various flight modes such as manual flight and fully autonomous flight; It can be widely used in firefighting, emergency rescue, material lifting, etc.




II. Scope of Application



Fire rescue

Emergency rescue

Material lifting



III. Product Features

  1. . Small size

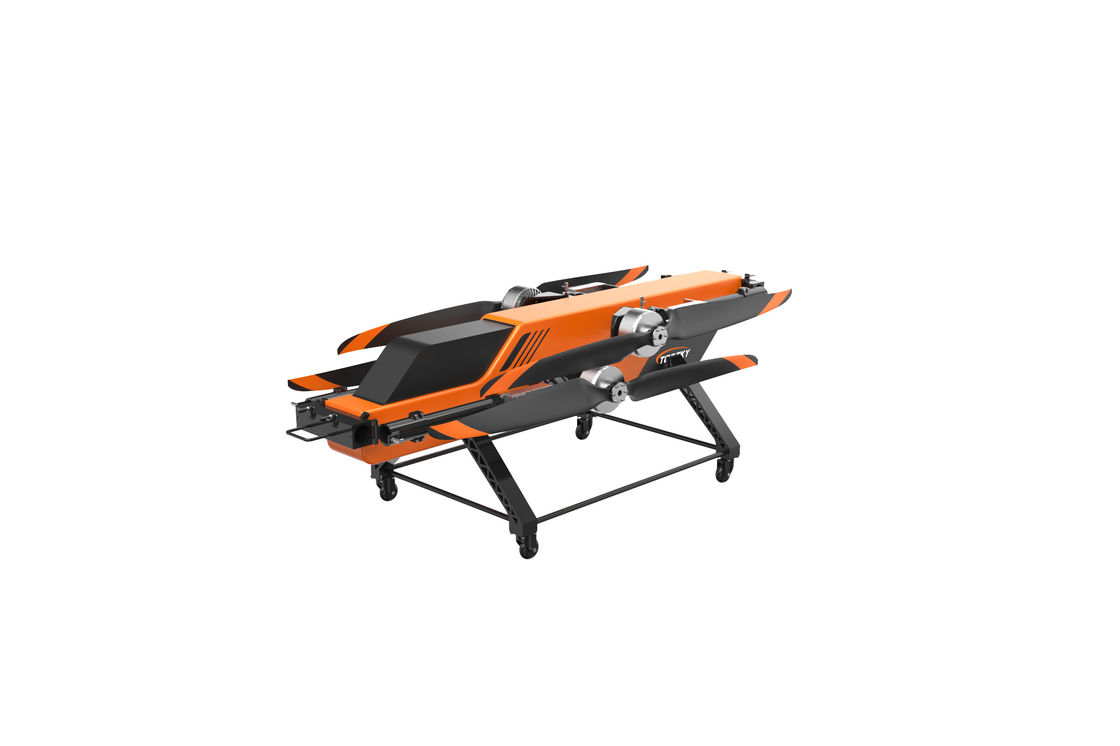

    The arm can be folded, taking up less space after folding;

    2. Heavy load

    The maximum load that can be mounted is 100kg;

    3. Flight duration

    Equipped with a large capacity battery and efficient motor for long endurance;

    4. Widely applicable:

    Can be applied to fire rescue, emergency rescue, and material lifting, etc;

IV. Main Technical Indicators



  1.

    Firefighting drone

    1. Maximum takeoff weight: ≥ 210kg

    2. Maximum payload: ≥ 100kg

    3. Flight endurance: 80min (unloaded) 25min (fully loaded) 40min (50kg)

    4. Maximum flight speed: ≥ 15m/s

    5. Maximum wind resistance level: Level 7

    6. Power battery: 18S 36000 * 6

    7. High precision navigation system: GPS+RTK positioning

    8. Wheelbase: ≤ 3450mm(±20)

    9. Product Material: Carbon Fiber+Aviation Aluminum Alloy

    10. Propeller: 63 inch carbon fiber folding propeller

    11. Maximum climb speed: ≥ 5m/s

    12. Maximum descent speed: ≥ 4m/s

    13. Maximum takeoff altitude: 4000m

    14. Working temperature:- 20℃~50℃

    15. Takeoff and Landing Method: Automatic Vertical Takeoff and Landing

    16. Unfolding size (mm): 3550 × 3090 × 1260 (± 20)

    17. Folding size (mm): 1600 × 1460 × 1260 (± 20)

    18. Empty weight: ≤ 55kg (excluding battery weight)

    22. Remote control distance: 5-20km (ground to air, line of sight)

    23. Protection level: Ip54

    24. Number of rotors: 6 rotors
