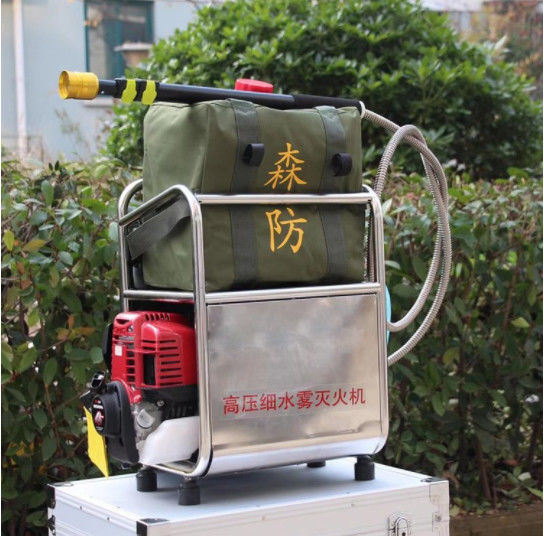

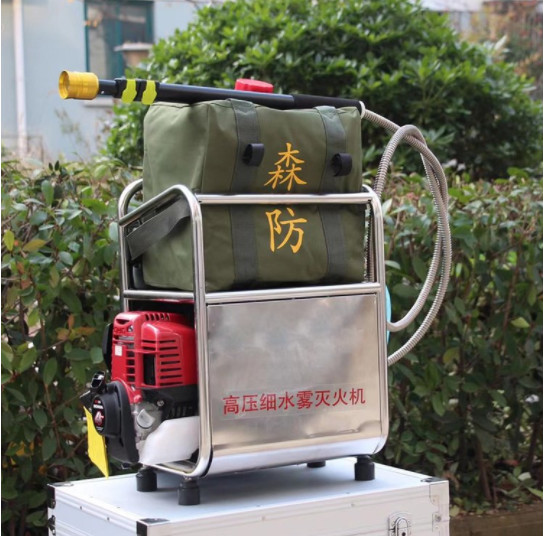

Backpack High Pressure Fine Water Mist Fire Extinguisher

Product Description

1. Product overview

6 MSW-10-6 high pressure water mist technology has been successfully applied in the field of fire fighting, known as a revolution in the field of fire protection technology, opened up a new era of desulfurization, denitrification and dust removal technology; applied to the field of coal bed methane extraction and utilization, realizing a new breakthrough in coal mine safety production, completely eradicated the harm of coal mine gas and coal dust. Technology products and solutions cover municipal environmental protection, chemical prevention and elimination, nuclear and biochemical pollution prevention and control, toxic gas degradation, dust removal in various occasions, Marine industry and a variety of military industries and other fields.

High pressure water mist fire fighting products have the advantages of efficient water saving, safety and environmental protection, wide range of application, and have dual fire extinguishing effect of cooling and suffocation, washing smoke and poison gas, shielding heat radiation; effectively extinguish class A, B, C and electrical fires. Due to its advanced fire fighting mechanism, its use is not limited by place, and can be used in land, ocean and space.

In order to ensure the normal and safe operation of high-pressure water mist fire products, before use, please read this operation manual in detail, strictly abide by the operating procedures, carefully maintain and carefully maintain, so that the product is in good condition at any time.

2. Scope of application

Forest fire protection, urban fire protection, emergency rescue and other safety fields

3. Product characteristics

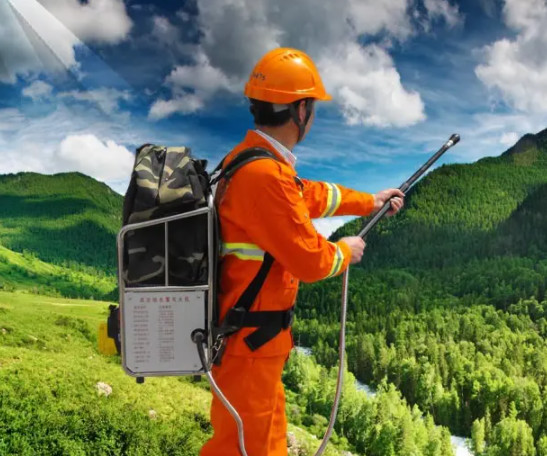

• The backpack type high pressure fine water mist fire extinguishing device has the characteristics of light and flexible.
• With the gasoline engine as the power source, with the water of the body water tank and the split water tank as the fire extinguishing medium, it can extinguish class A, class B, class C and electrical equipment fires.
• This series of products has the characteristics of light weight, small volume, easy to start, reliable performance, small water consumption and strong sustainable fire extinguishing ability.
• Suitable for multi-soldier group combat, equipped with high pressure water mist combination spray gun can achieve far and close fast conversion, no pollution to the environment and no harm to the human body.

4. Main technical indexes

• Engine: Air-cooled four-stroke engine
• Engine power: 1.86 hp
• Start-up mode: hand start and electric start
• Maximum lift: 14m
• Effective horizontal range: 9m
• Effective vertical range: 6.6m
• Start time at normal temperature: 7s
• Quality requirements of the water sac: with the inspection and test report
• Water bag volume: 20L
• Pillar water mist (range: 9m, flow rate: 6 L/min, working pressure: 10MPa)
• Fan-shaped water mist (range: 8.1m, flow rate: 5.2 L/min, working pressure: 10MPa)
• Medium-range column fog (range: 7.5m, flow rate: 3.5 L/min, working pressure: 6MPa)
• Cloth the water mist (range: 7.4m, flow: 6 L/min, working pressure: 10MPa)
• Near-range column fog (range: 5m, flow rate: 3.5 L/min, working pressure: 6MPa)
• Continuous operation performance: under the spray condition for 8h, the engine has no automatic flameout, the whole machine has no water leakage, oil leakage, abnormal vibration and sound, and the fasteners are not loose.
• nozzle: the nozzle can realize the conversion between the spray column, spray and spray fan shaped water mist.
• Emission system: comply with GB 19724 requirements
