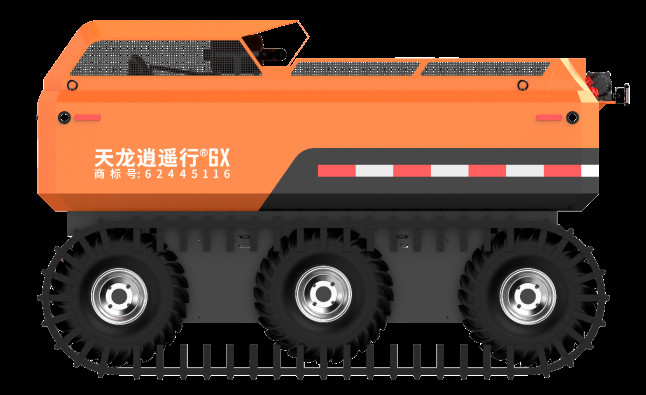

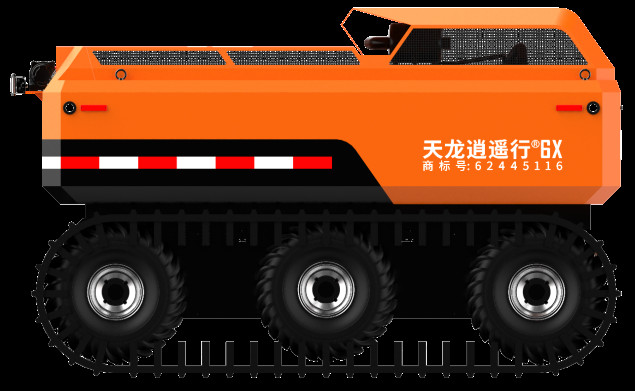

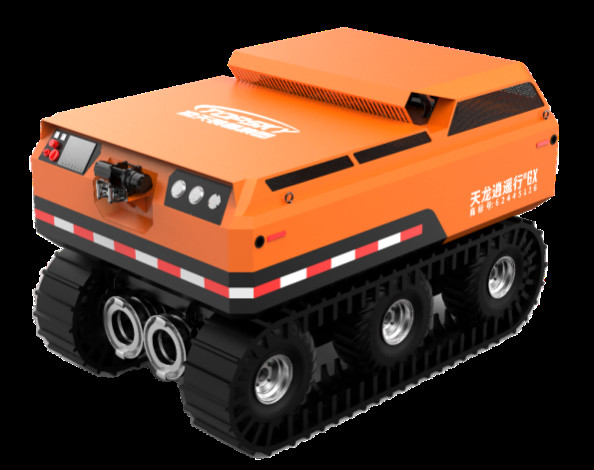

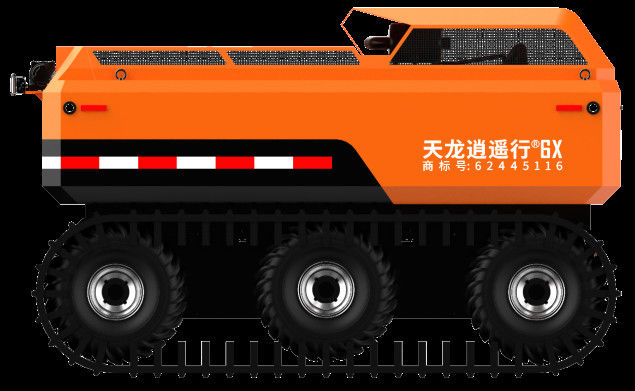

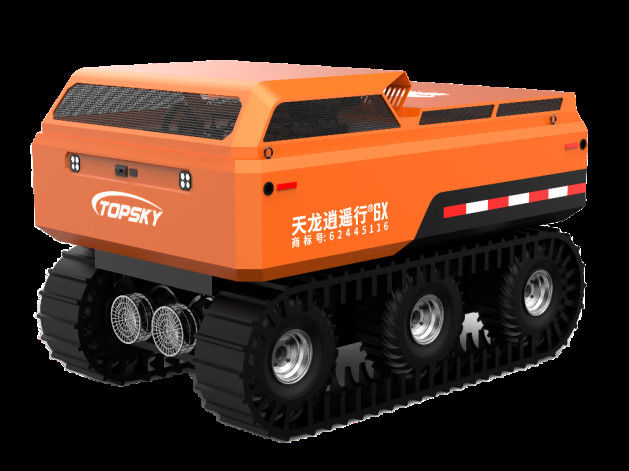

RXR-Q280D Wheel Track Integrated Drainage And Demolition Robot

Product Description

This product has the functions of drainage, audio and video reconnaissance, water leakage reconnaissance in disaster areas, etc. The track can be quickly assembled and disassembled to meet different use environment and road conditions. The hose car equipped with this product can collect 2rolls DN200 large diameter hose at the same time. The water pump equipped with the robot has large diameter port setting such as sewage discharge, water discharge and maintenance.

• Scope of use

• Flood drainage and rescue in urban garages
• Flood discharge and rescue at subway stations
• Tunnel and culvert terrain flood drainage and rescue
• Drainage of narrow urban roads
• Reservoir risk management
• As a water intake module for remote water supply

• Product Features

• ★Remote control:

Can remotely adjust the engine power and control the flow rate to meet the actual needs of the site.

• ★Amphibious chassis:

Using (6 × 6) wheel + track chassis, hydraulic drive, amphibious and all-terrain

3,★Diverse functions and wide application scenarios:

① Water supply: It can supply water to fire trucks or serve as a remote water supply module, no need for a water intake platform, and can be self launched; Large flow rate and fast water supply speed;

② Drainage: Large drainage flow (900T/H), long distance, easy to operate, and can be quickly deployed in place;

③ Strong adaptability: low requirements for water quality, capable of discharging sewage and mud;

4,★Remote relay:

If the water supply distance is too long, it can be continued in the middle by another robot

5,★Self-avoidance:Lidar rangefinder can customize the robot obstacle avoidance distance

6,★Reserve hydraulic interface:

Equipped with multi-channel UHV module, Can be externally connected with hydraulic disc saws and other dismantling tools.

• Technical parameter

4.1 Robot machine:

• Reserved hydraulic output interface: can connect to the rescue and dismantling tools
• The drive form adopts the hydraulic drive
• Dual pump design, maximum displacement: 900m³ / h
• Using amphibious vacuum tire + fast disassembly and assembly track
• Physical dimension (mm): ≤ 2330*1600*1500
• Weight (kg): ≤ 1310 (fuel included)
• It can be remote control, with fuel tank level, oil temperature and body immersion alarm
• Remote control lifting suction port, can be used for low water drainage
• ★ Chassis form: 6 X 6 drive mode, Hydraulic vacuum tire + quick disassembly of track chassis
• Water quality requirements: absorbable discharge contains the maximum solid particle diameter 25mm impurity liquid. By replacing the filter screen, absorbable discharge contains the maximum solid particle diameter 30mm, impurity liquid
• Pipe diameter: equipped with DN200mm double water inlet; DN200mm double water outlet
• ★ Four electric drainage pumps are set inside the body, which can automatically detect and discharge the water inside the body electric rewinding fire hose retraction and release vehicle
• Supporting electric large diameter hose winding truck: equipped with DN200mm hose total 150m, can retract 2 rolls of DN200 hose at the same time.

4.2 Robot large flow pump (2 sets, each with the following parameters):

①　Displacement: 450 m³/h

②　Intake and outlet: 200mm diameter

③　Elevation: 12m

4.3 Robotic hydraulic system:

1. System and control mode: semi-closed quantitative hydraulic system, electric control switch valve + electric control proportional valve control

2. Walking drive: 6 drives; rated working pressure: 175bar

4.3 Remote control terminal configuration parameters:

①　Operating temperature: -20~70℃

②　Shell material: high-strength engineering plastics

③　Protection grade: IP69 anti-fall, anti-pressure, waterproof

④　Working time: ≥8h

⑤　Walking control function: through two single-axis industrial rockers, Realize the robot forward, backward, left and right turn flexible operation

⑥　Auxiliary tool: handheld remote control terminal shoulder strap

⑦　The robot controller: the robot embedded in an industrial control computer, can operate the pumping, traction, light and other actions, but also can query the oil pressure, liquid level, electricity and other fault information

⑧　Wired control: equipped with wired control, emergency use in strong magnetic environment

4.4 Electric large diameter hose winding truck:

①　Realize the rapid laying and retract of fire hose motor-driven

②　Total loading water belt: 150 m

③　Two large diameter fire hose can be collected at the same time

④　Laying / rewinding speed: 0.5 m/s

4.5 Traction winch:

①　Drive mode: electric drive

②　Traction force: ≥4,000 LB

Function: towing trapped vehicles, equipment, but also used for self-rescue traction

• Product configuration

• 1 set of integrated drainage and demolition robot (wheel-track)
• 1 pcs of handheld remote control terminal
• 1 pcs wire-controlled remote control
• 1 set of robot charger
• 1 set of Remote control charger
• 1 set of electric rewinding fire hose retraction and release vehicle
• 1 pcs of remote control backup battery
• 1 set of Remote control battery charger
