Battery Operated Combi Tool Hydraulic Cutter And Spreader

Contact Now

Battery Operated Combi Tool Hydraulic Cutter And Spreader

Minimum Order Quantity :	1 set	Price :	USD2000-2200
Packaging Details :	Export package	Delivery Time :	15 working days
Payment Terms :	T/T	Supply Ability :	50 Sets/Month

Place of Origin:	China	Brand Name:	TOPSKY
Model Number:	DYPC-72

Detail Information
Rated Working Pressure::	72MPa	Expansion Distance:	375mm
Expansion Force:	100KN	Shear Opening Distance:	270mm
Maximum Shear Force:	380KN
Highlight:	Hydraulic Cutter Spreader , Hydraulic Combi Tool , Battery Operated Combi Tool

Product Description

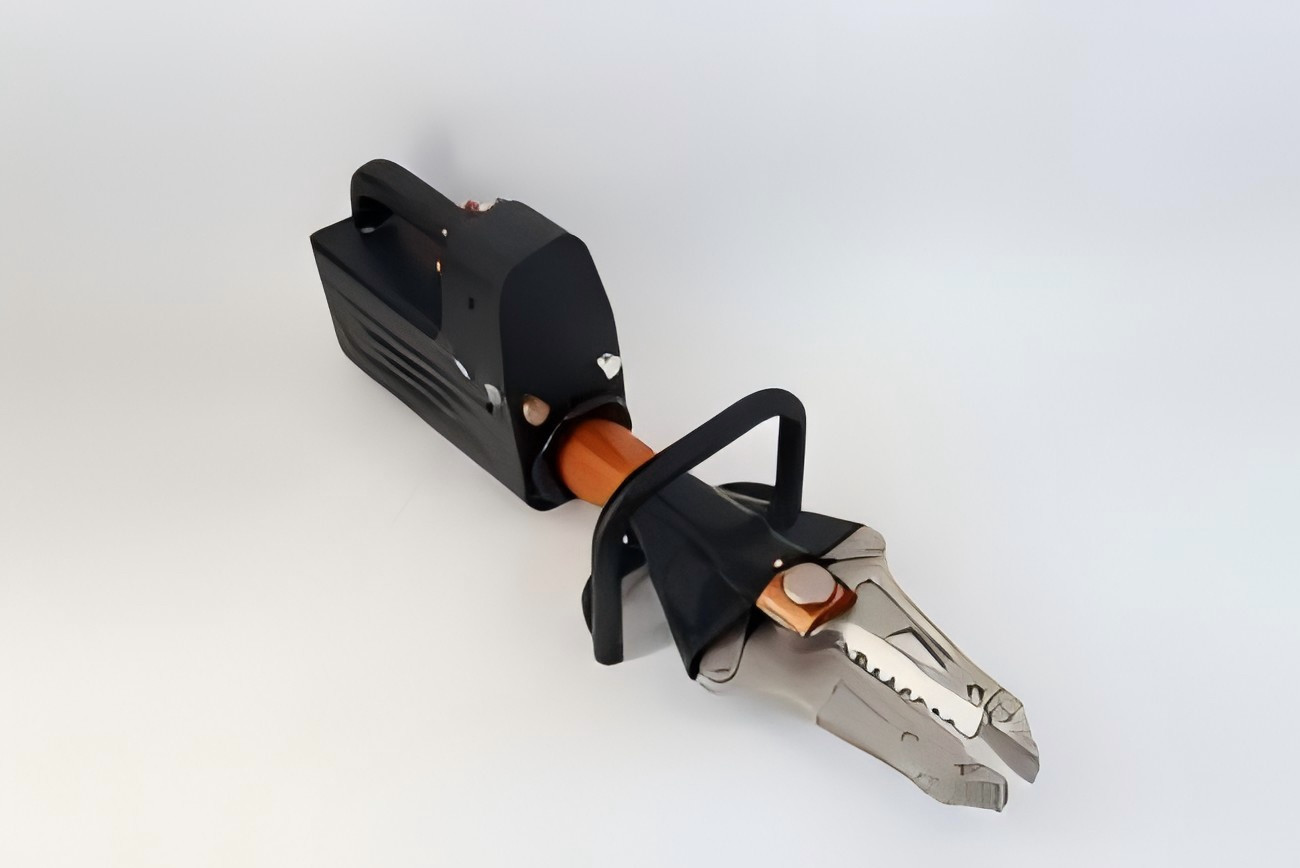

Battery Operated Combi Tool Hydraulic Cutter And Spreader 0

Battery Operated Combi Tool Hydraulic Cutter And Spreader 1

1.Overview

The electric cutter and spreader has multiple functions such as shearing, expanding, pulling and extruding. The main parts are made of aviation aluminum alloy, which is strong and light. It uses high-capacity batteries with long battery life. Multiple circuit and mechanical protection measures ensure the safety of tools and operators. The power switch is one-touch and can be used immediately. The motor, operating handle, eccentric shaft and oil cylinder are in-line on the same axis to save space.

2.Application

Traffic accidents, disaster accidents, rescue in urban areas, especially suitable for high-altitude rescue and field operations.

3.Feature

The blade is made of high-strength material to prevent breakage and is more durable; the ergonomic blade design uses the pullback effect during shearing to naturally push the sheared material to the center where the shear force is the largest, allowing high-load rescue operations; it can disassemble the entire vehicle and cut off vehicle components, metal structure pipes, special-shaped steel and steel plates

4.Main specification

1. Rated working pressure: 72MPa

2. Expansion distance 375mm;

3. Expansion force 100KN;

4. Shear opening distance 270mm;

5. Maximum shear force 380KN;

6. Shear capacity: Q235A round steel 35mm, Q235A steel plate 18mm;

7. Weight: 20kg (including battery and hydraulic oil);
