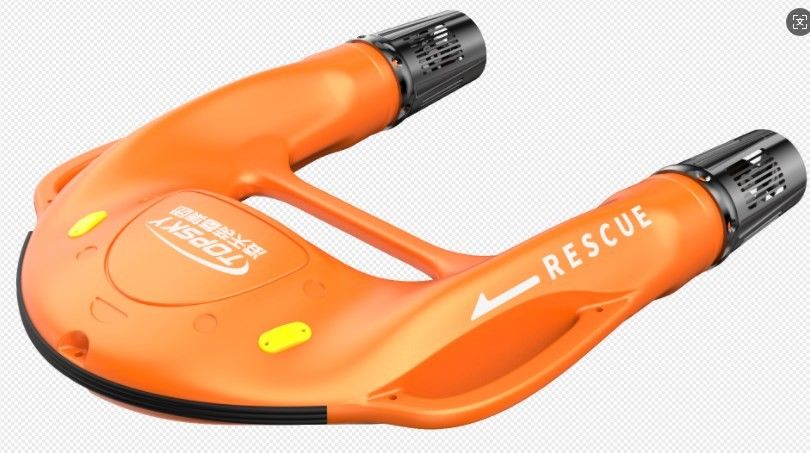

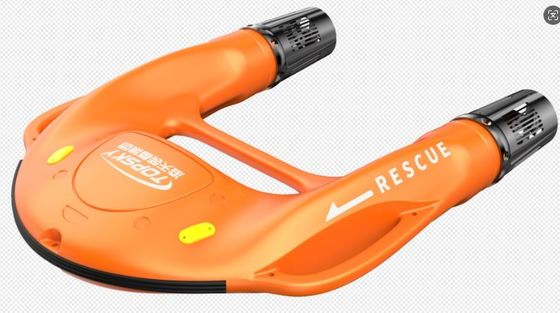

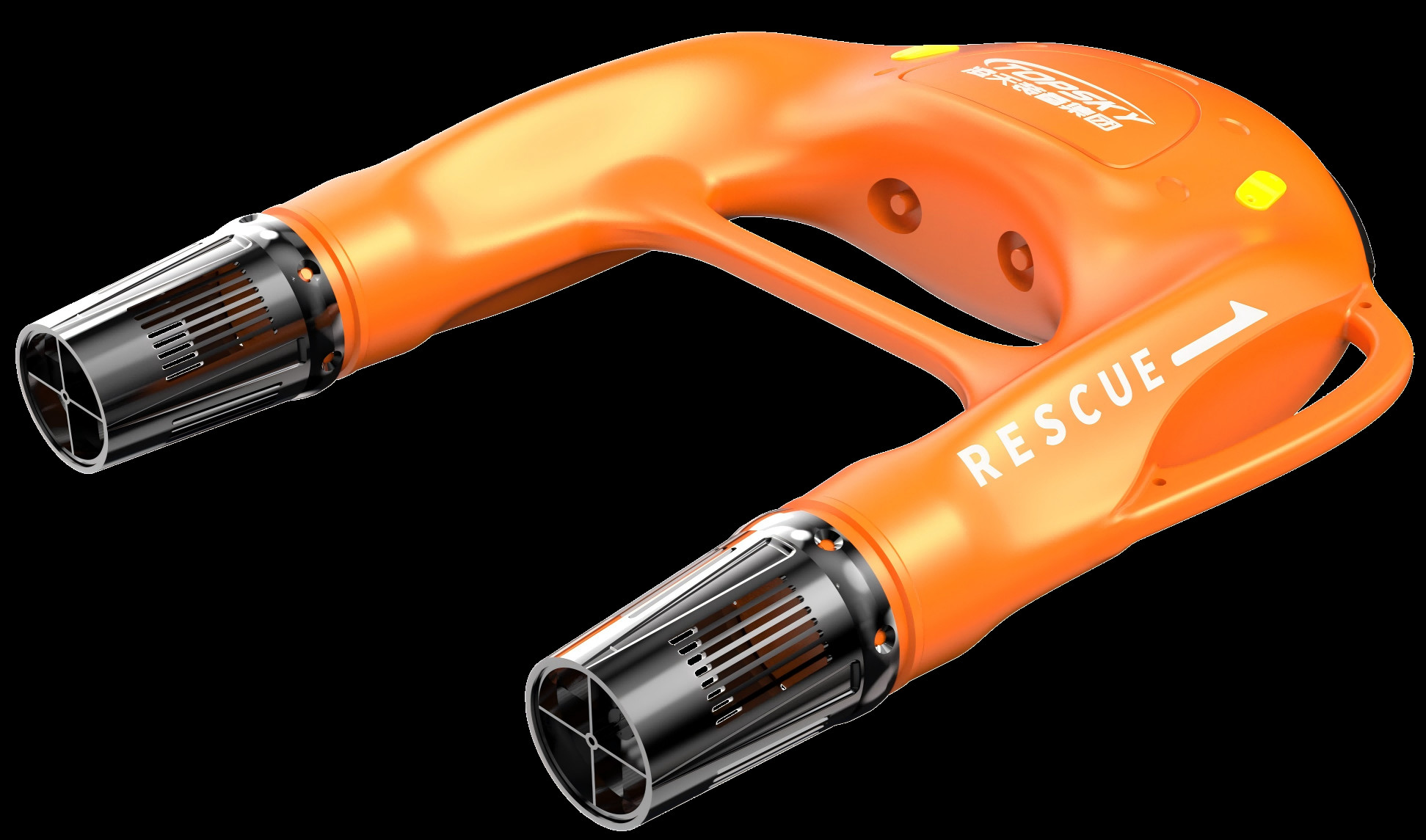

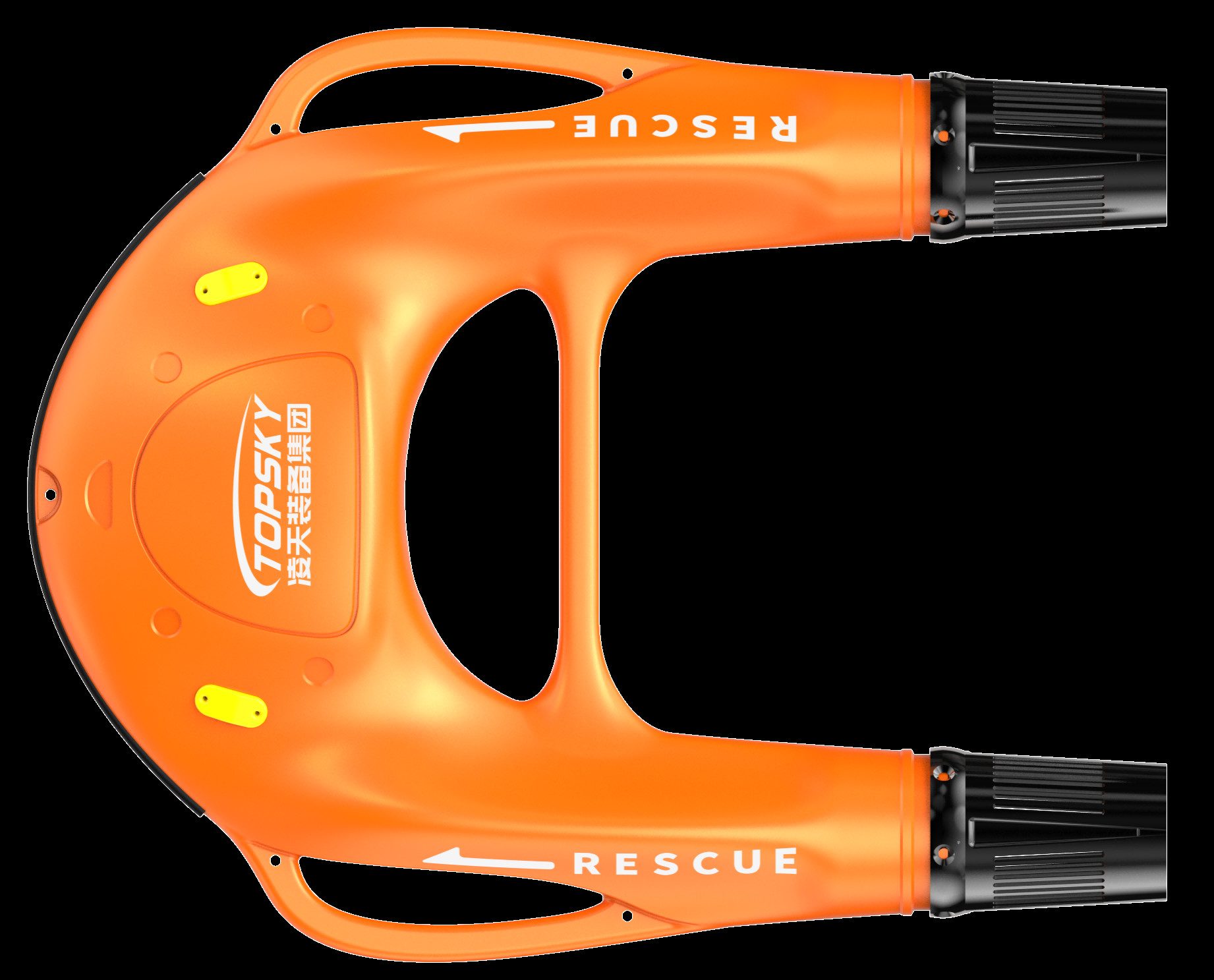

Water Rescue Lifebuoy Wireless Remote Control Intelligent Power TS4

As a small water rescue robot that can be remotely operated, the intelligent lifebuoy can be widely used for water rescue in swimming pools, reservoirs, rivers, beaches, yachts, ferries, floods and other scenarios.

Remote control is achieved through a remote control, which is easy to operate and can accurately control the route of the lifebuoy. An unloaded speed greater than 6m/s can quickly reach the drowning person for rescue, while a manned speed greater than 2m/s. There are high penetration signal warning lights on both sides, which can easily locate the position of the lifebuoy at night and in adverse weather conditions. The front anti-collision strip effectively prevents collision injuries to the human body during travel, and the propeller adopts a protective cover to prevent foreign objects from getting entangled. The lifebuoy can be equipped with a camera to observe the rescue situation in real time. The lifebuoy is equipped with GPS/Beidou dual positioning system, which can achieve precise positioning.

When a drowning accident occurs, an intelligent lifebuoy can be deployed to accurately locate the position of the drowning person through GPS positioning, video recognition, manual recognition, and other methods. The remote control can be used to reach the drowning person's position for rescue. The drowning person can easily grab the lifebuoy for rescue, or be brought back to a safe area through the power system, which saves valuable time for rescue and greatly improves the survival rate of the drowning person. When the situation of the drowning person is critical, the intelligent lifebuoy can carry rescue personnel to quickly approach the drowning person for rescue. This application not only saves valuable physical energy for rescue personnel, but also greatly improves rescue efficiency. When remote rescue is required (outside the visible range), intelligent lifebuoys can cooperate with drones to carry out three-dimensional rescue. This three-dimensional intelligent unmanned rescue system combining air and water greatly improves the rescue range and enriches the rescue methods.

• Scenes such as swimming pools, reservoirs, rivers, beaches, yachts, ferries, floods, etc

1. Reliable shell

Adopting LLDPE material with good wear resistance, electrical insulation, toughness, and cold resistance.

2. Accurate positioning

Support GPS/Beidou dual positioning system for faster and more accurate positioning.

3. Return system

One click automatic return function, lost contact automatic return function, low battery return function.

4. Clear identification

High penetration warning lights can also determine the location of equipment in foggy weather.

5. Lightweight hull, easy and quick deployment

Weight ≤ 16.5Kg, convenient for individual soldiers to carry.

6. Networking (video and audio)

Connected to the robot networked cloud platform, real-time status information such as robot location, battery level, audio, video, and detection information can be transmitted to the cloud through 4G/5G networks, and can be viewed on both PC and mobile devices in the background

7. APP software (optional)

The robot can be connected to a tablet or mobile phone, and the APP provides real-time feedback on the robot's trajectory, status, map, battery level, alarm information, etc.

8. Multi functional use

External module, used for reconnaissance, lighting, shouting and other tasks.

4.1 Robot machine:

1. Name: Intelligent lifebuoy

2. Model: TS4(With image)

3. Basic function: Used for water rescue in swimming pools, reservoirs, rivers, beaches, yachts, ferries, floods and other scenarios;

4. Power: Electric, ternary lithium battery

5. Dimensions: Length 1050mm * Width 820mm * Height 200mm

6. Weight: ≤ 16.5kg

7. Traction force: ≥ 50N

8. No load speed: ≥ 5m/s

9. Passenger speed: ≥ 2m/s (with a load of 75kg personnel)

10. Rescue towing force: ≥ 300kg

11. Continuous walking time: 45 minutes

12. Remote control distance: ≥ 1000m

4.2 Intelligent functions:

• One click return:Clicking the button to remotely control the lifebuoy will automatically return to the preset fixed position
• Automatic return upon loss of contact:When the signal between the lifebuoy and the remote control is lost for 5 seconds, it will automatically return to the preset fixed position
• Low battery return:When the battery level of the lifebuoy body is lower than the set value, it will automatically return to the preset fixed position
• Integrated lighting and shouting machine:Integrating lighting and amplifiers, it can provide ambient lighting and also play commands and scripts through walkie talkies
• Reconnaissance camera :The image captured by the camera of the lifebuoy body can be fed back in real-time to the display screen of the remote control

4.3 Remote control terminal configuration parameters

1. External dimensions:190*152*94mm

2. Whole machine weight:660g

3. Working hours: 8 h

4. Basic functions:Remote control of lifebuoy walking, monitoring of the lifebuoy's battery level, GPS positioning parameters and other data, and controlling the lifebuoy itself; Control the on and off of warning lights on lifebuoys; You can also watch the real-time footage from the lifebuoy camera through the display screen on the remote control

5. Walking control function: By combining two industrial joysticks, the robot can flexibly operate forward, backward, left, and right turns

6. Lighting control function: achieved through self resetting jog switch and self-locking response of the upper computer

4.4 Internet Features:

1. GPS function: GPS positioning, track can be queried.

2. Emergency Fire Equipment Cloud Management Platform System (optional):

The device can connect to the equipment cloud management platform PC and APP to display real-time status information such as the location, battery level, audio, video, and detection information of the lifebuoy. It can be transmitted to the cloud through 4G/5G networks, and can be viewed on the backend PC and mobile devices.
