Heavy Load Forest Firefighting Land Air Amphibious Unmanned Aerial Vehicle
Heavy Load Forest Firefighting Land Air Amphibious Unmanned Aerial Vehicle Heavy Load Forest Firefighting Land Air Amphibious Unmanned Aerial Vehicle Heavy Load Forest Firefighting Land Air Amphibious Unmanned Aerial Vehicle Heavy Load Forest Firefighting Land Air Amphibious Unmanned Aerial Vehicle
Contact Now

Heavy Load Forest Firefighting Land Air Amphibious Unmanned Aerial Vehicle

Minimum Order Quantity : 1set Price : USD26000
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: China Brand Name: Topsky
Model Number: LT-F30-LK

Detail Information
Maximum Takeoff Weight: 100kg Maximum Payload: 30kg
Empty Flight Duration: 40min Maximum Climbing Speed: 5m/S
Dimensions: 1400mm × 1200mm × 1300mm Vehicle Size: 1400mm × 1200mm × 1300mm
Weight: 90kg Maximum Wind Resistance: Grade 5

Product Description

I.Product overview

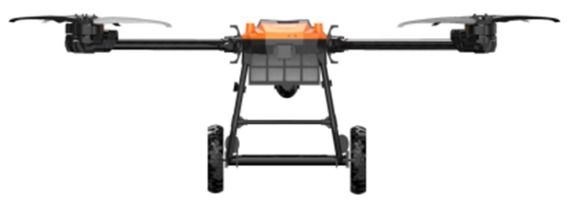

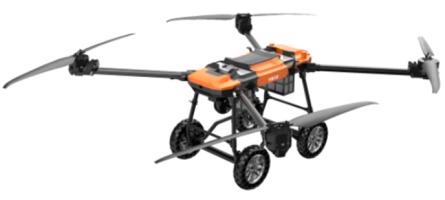

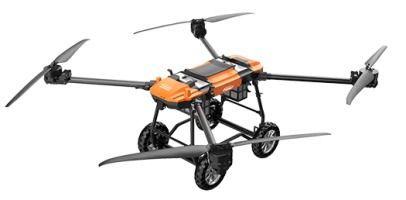

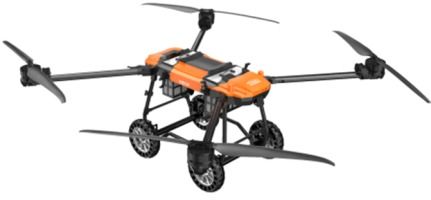

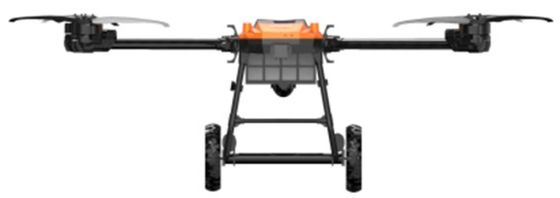

This unmanned aerial vehicle (UAV) is a multi-purpose land and air amphibious UAV platform developed by Beijing Lingtian Intelligent Equipment Group. It adopts a quadcopter body design, with a large payload capacity and long endurance. The body folds to standardize the load interface, integrates an avionics system, and also supports the optional radar obstacle avoidance system. At the same time, the drone has amphibious capabilities, can travel on the ground, and the walking system can be quickly disassembled. Meet different industry applications such as fire extinguishing, emergency education and assistance, material transportation, environmental monitoring, etc.

II. Product features
1. Small size Folded dimensions: 1100×900×960mm [L×W×H]. Offers compact storage.
2. Flight duration Equipped with a high-capacity smart battery and high-efficiency powertrain.Unloaded flight time: >40 minutes,Loaded flight time: >20 minutes
3. Heavy load
Maximum payload ≥ 30kg
4. Amphibious land and air
Can travel on the ground and perform flight operations
5. Widely used
Capable of carrying out tasks such as firefighting, reconnaissance, gas detection, and shouting;

III.Main parameters
Model structure: 4-axis 4-pulse
2. Diagonal wheelbase: 2420mm
3. Body material: aluminum alloy, carbon fiber
4. Maximum takeoff weight: ≥ 100kg.
5. Maximum payload: ≥ 30kg.
6. No load endurance: ≥ 40min.
7.Land and Air Amphibious: Structural Form: Designed with a land and air amphibious structure, the bottom of the fuselage is equipped with 4 walking wheels, which can be remotely controlled for land travel; Drone land travel speed: ≥ 2m/s. Remote control: The drone remote control and land travel remote control use one remote control. The parameters need to be consistent with the testing report issued by a third-party testing agency with qualifications for rotor unmanned aerial vehicle inspection, and the cover of the testing report should have CMA and CNAS marks. This parameter needs to be consistent with the testing report issued by a third-party testing agency with qualifications for rotor unmanned aerial vehicle inspection. The cover of the testing report should have CMA and CNAS logos, and the testing report should be stamped with the product manufacturer's official seal (fresh seal) as proof; At the same time, provide the authorization certificate and authorization scope details issued by the market supervision department to third-party testing institutions, covering the testing of rotary wing unmanned aerial vehicles.
8. Maximum climbing speed: ≥ 5m/s
9. Maximum descent speed: ≥ 3 m/s
10. Maximum wind resistance: ≥ Level 5
11. Working temperature: -20 ºC to 45 ºC
12. Size: ≤ 1400mm × 1200mm × 1300mm
13. Weight: ≤ 90kg
