Direct reading dust concentration measuring instrument

Product Description

1,Overview

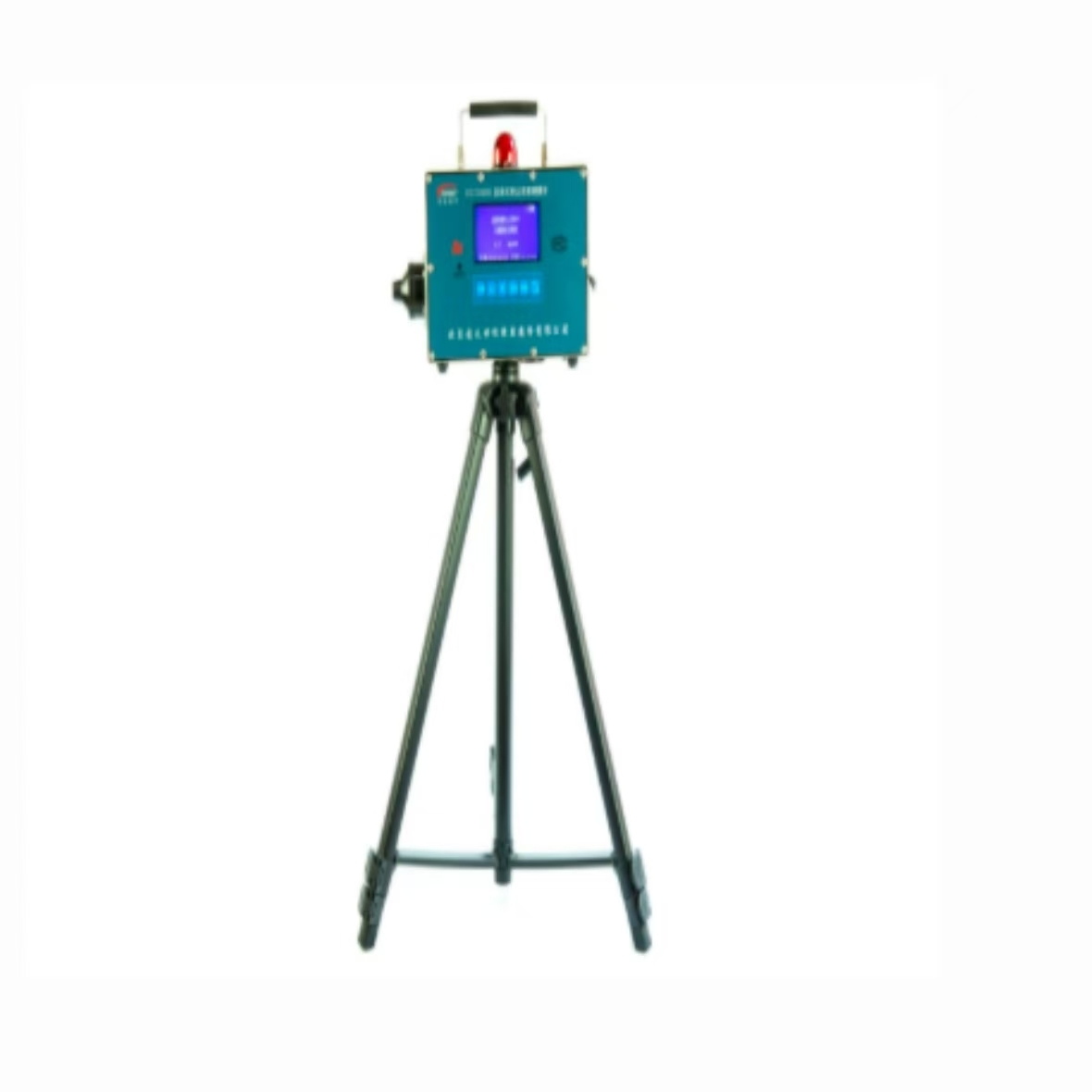

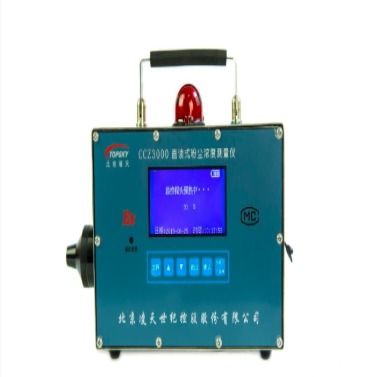

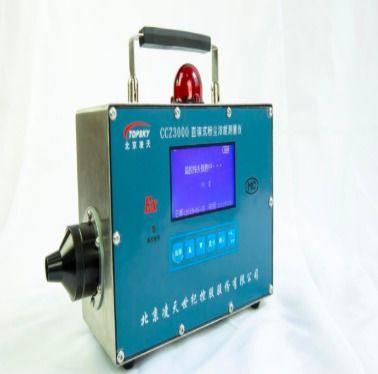

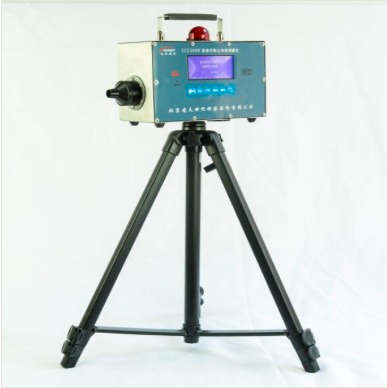

The CCZ500 dust measurement instrument is a simple-to-operate, lightweight and portable device that can directly read the dust concentration. It is a continuous dust concentration measuring instrument designed based on the light scattering method, absorbing and integrating advanced dust measurement technologies from both domestic and international sources. It uses an infrared laser and imported photomultiplier tubes to convert the scattered light intensity of suspended dust in the dark chamber under the irradiation of the infrared laser into an electrical signal. By presetting the K value, the dust mass concentration can be directly calculated, which can be used for environmental monitoring or other measurement and control systems. Its features include: fast and accurate measurement, high sensitivity, stable performance, strong load capacity, and low susceptibility to dust accumulation on the optical path. It can measure various dust mass concentrations by presetting the K value, and can also set an alarm threshold for dust concentration exceeding the limit. When the dust concentration exceeds the limit, it will automatically give an audible and visual alarm. The instrument complies with the measurement instruments specified in MT163-1997 "General Technical Conditions for Direct Reading Dust Concentration Measuring Instruments", JJG846-2015 "Dust Concentration Measuring Instrument Verification Regulations", GB 20964-2007 "Dust Sampler", and GB3836.4-2010 standards, which are of ExibI Mb level (mine explosion-proof type) explosion-proof design.

The dust measurement instrument has 4G transmission capability, which enables the real-time transmission of measurement data to the background. This facilitates the operation personnel to check the data. Meanwhile, the device is equipped with multiple functions such as timed sampling, continuous detection, data processing, and over-limit alarm.

2,Features

It is widely applied in all places where dust is generated.
Industrial and mining enterprises
Labor health and epidemic prevention departments
Labor safety departments
Environmental monitoring departments
Research institutions

3,Functions

a. High performance: Quick response
b. Large range
c. High precision
d. High sampling efficiency
e. Explosion-proof: Ex ib I Mb
f. Safety mark number: MFA180034
