Home ProductsCounter Terrorism EquipmentPortable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range
Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range
Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range
Contact Now

Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range

Place of Origin: china Brand Name: topsky

Detail Information
Wave Length: 447nm;415nm Warranty: 5 Years
The Pixel Size: : Approx 160 μm. Noise: Less Than 30db
Focus Range: 0.3m~ Vertical Adjustment: 0-30cm
Remote Size: 278*184*43mm Hearing Device Size: 210*100*100mm
Neck Protector: 850m/s Model: RXR-M80D
Alarm Type: Light Sound And Vibration Beacher Size: 73*16*50cm
Magnify: 16times Maximum Linear Speed: ≥1.52m/s, Remote Control Stepless Speed
Product Type: Equipment
Highlight:

4G Transmission Dust Measurement Instrument

,

0.001mg/m3 Resolution Dust Concentration Meter

,

0.001mg/m3 to 50mg/m3 Range Dust Monitor

Product Description

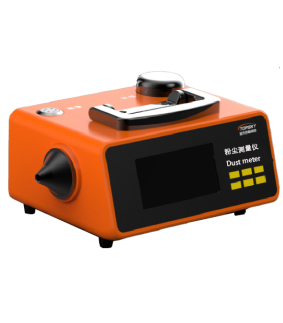

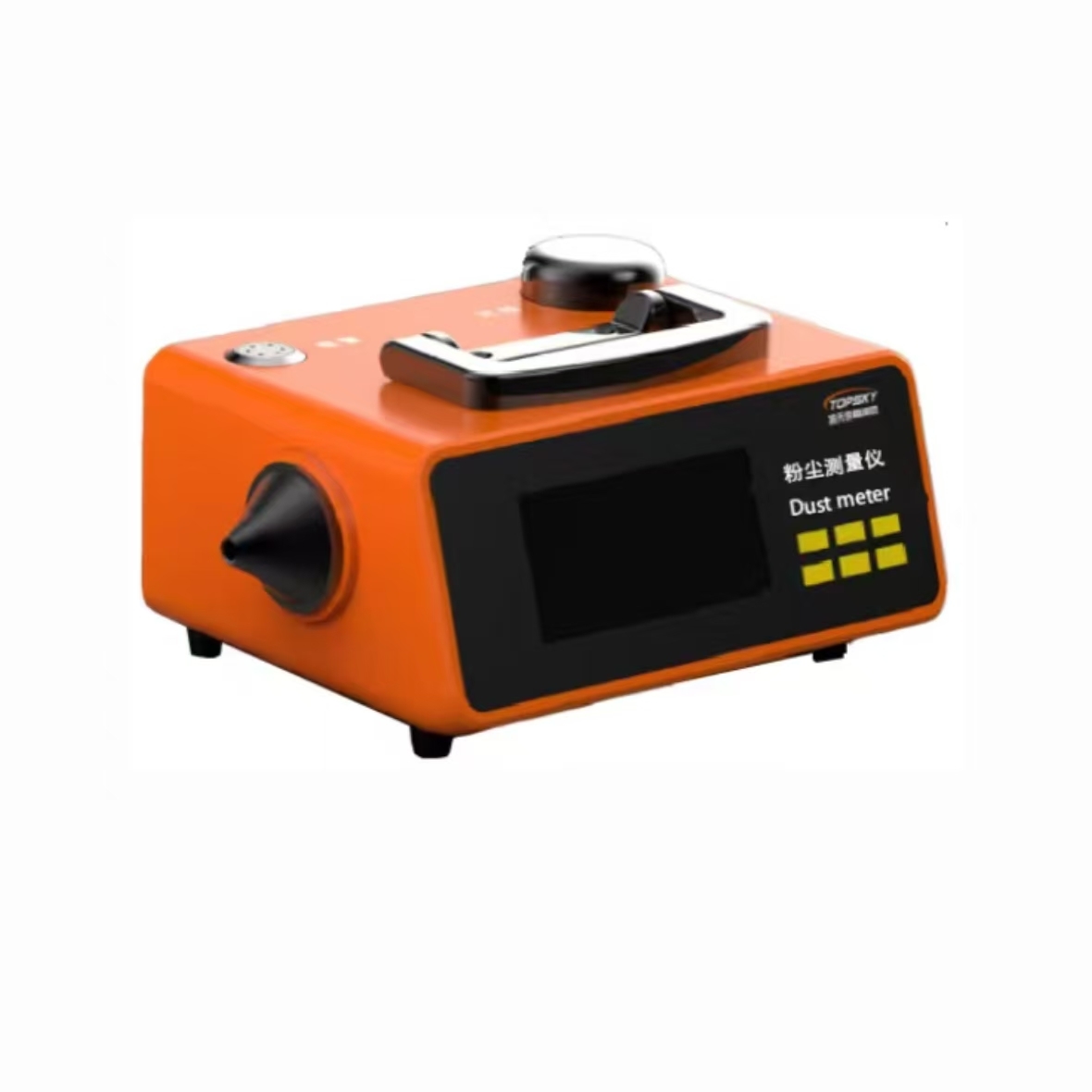

Dust Measurement Instrument
Product Overview
The CCZ500 dust measurement instrument is a portable, easy-to-use device that provides direct readings of dust concentration. Utilizing advanced light scattering technology with an infrared laser and imported photomultiplier tubes, it converts scattered light intensity into electrical signals to calculate mass concentration. This instrument features:
  • Fast, accurate measurements with high sensitivity
  • Stable performance with strong load capacity
  • Low susceptibility to optical path dust accumulation
  • Configurable alarm thresholds with audible/visual alerts
  • 4G data transmission for real-time monitoring
  • Compliant with MT163-1997, JJG846-2015, GB 20964-2007, and GB3836.4-2010 standards
Key Features
  • ★ Lightweight: Compact and portable design for easy measurement
  • ★ Efficient: Direct reading with one-button operation and 1-minute results
  • ★ High Precision: Resolution of 0.001mg/m³
  • ★ Automatic Alarm: Customizable threshold alerts
  • ★ Data Processing: Scheduled sampling with TWA calculation
  • ★ Networking: 4G transmission for real-time data visualization
  • ★ Maintenance-free: No cleaning required for sensor module
  • ★ Integrated: Durable, reliable design with attractive appearance
Technical Specifications
Dust Measurement Instrument
Measurement Range ★ 0.001mg/m³ ~ 50mg/m³ (accuracy 0.001mg/m³)
★ 0.01mg/m³ ~ 150mg/m³ (accuracy 0.01mg/m³)
Relative Error ★ ≤ 10%
Measurement Time 1 minute (standard measurement time)
Alarm Function ★ Built-in with customizable concentration settings
Data Storage ★ Up to 9999 data sets
Calculations ★ Automatic time-weighted average (TWA)
Network Function ★ 4G transmission of dust concentration, temperature, humidity, and GPS data
Display 4.3-inch LCD screen
Working Time ≥ 6 hours

Tag:

counter surveillance equipment

anti terrorism equipment

anti surveillance equipment
