Fire-fighting Demolition Robot with Remote Control Multi-functional Demolition Tool and High Power Diesel Engine for Rescue Operations

Place of Origin:	CHINA	Brand Name:	TOPSKY

Detail Information
Screen:	12inch High Light LCD Screen	Break Locks:	15
Remote Weight:	1.4kg	Relative Humidity:	0 To 95%
Portability:	Designed For Easy Transport And Rapid Deployment	Storage Temperature:	-45℃～65℃;
Hearing Device Size:	210100100mm	Carrying Weight:	<30kg
Width:	0.4m	Main Engine Weight:	28kg
Gas Flow Rate:	1.0L Or Set According To Customer Needs	Outer Cover:	Washable Fire Retardant Fabric
Wireless Control Distance:	500m	Circuit Resistnace:	14.7Ω
Steering Diameter:	≤2400mm
Highlight:	Remote Control Fire-fighting Demolition Robot , Multi-functional Demolition Tool Extinguishing Robot , High Power Diesel Engine Rescue Robot

Product Description

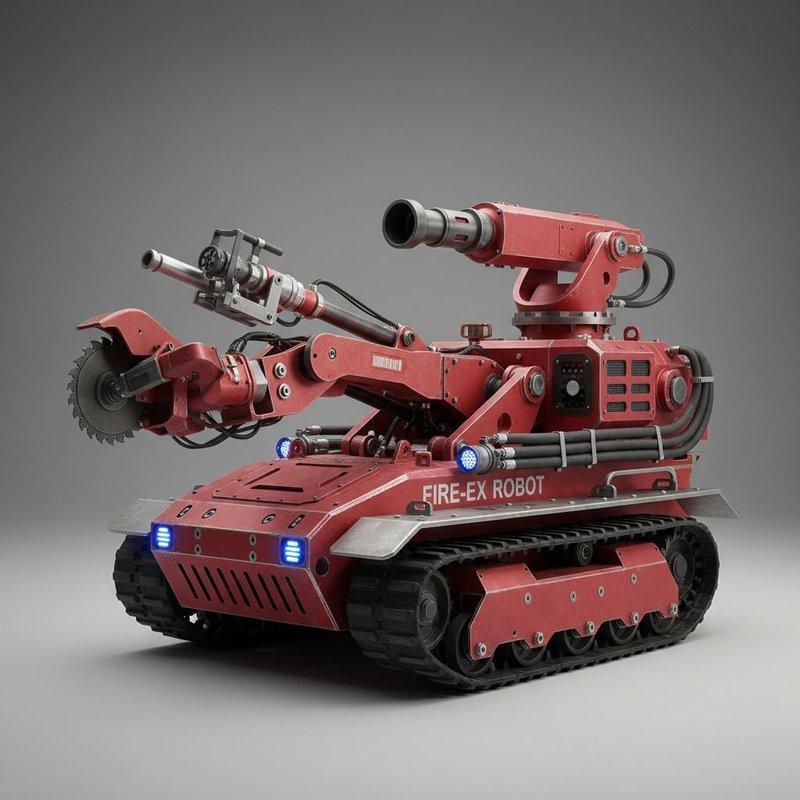

Fire-fighting Demolition and Extinguishing Robot

Product Overview

This specialized robot replaces human operators in high-risk rescue environments including toxic contamination zones, structural collapse hazards, and high-radiation areas. The system enables remote-controlled demolition operations, concrete drilling and cutting, tunnel excavation, emergency response, furnace and kiln maintenance, and nuclear facility decommissioning while eliminating personnel exposure to danger.

Key Features

Superior power output and driving force compared to similar-class equipment
Remote engine start/stop capability with diesel power source for extended operational endurance
Multi-functional demolition tool head with cutting, spreading, extruding, and crushing operation modes

Technical Specifications

Parameter	Specification
Model	RXR-JM200D
Basic Functions	Multi-functional demolition tool head with cutting, expanding, squeezing, and crushing modes
Chassis Structure	ATV hydraulic tracked chassis
Power System	Four-stroke diesel engine (27kw) + hydraulic pump system
Dimensions	3100mm (L) × 880mm (W) × 1850mm (H)
Travel Width/Height	≤ 880mm / ≤ 1850mm (including water cannon system)
Weight	Approximately 1600kg (including crushing hammer)
Traction Force	≥ 10000N
Tipping Force	≥ 10000N
Maximum Speed	0 - 3km/h, remote control with stepless speed variation
Climbing Ability	58% (30°)
Remote Control Distance	150m
Working Radius	4.5m
Fuel Tank Capacity	50L
Ground Clearance	160mm
Obstacle Clearance	200mm
Continuous Operation	8 hours
Rescue Capability	Tipping tool for obstacle clearance; towing ring for transporting supplies and towing rescue vehicles
