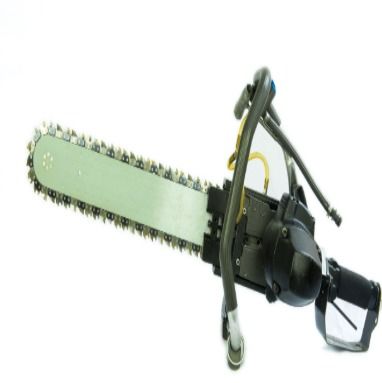

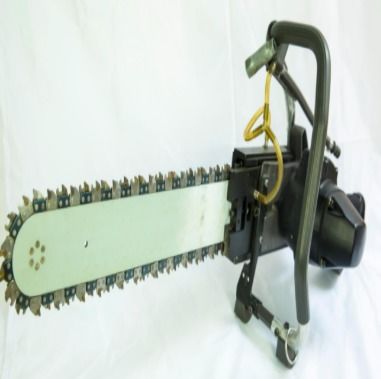

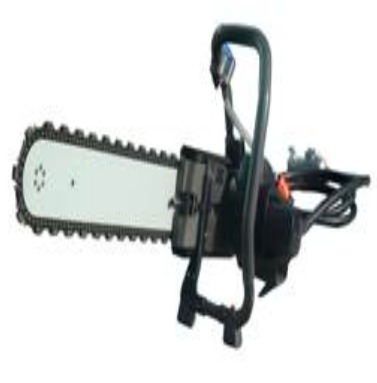

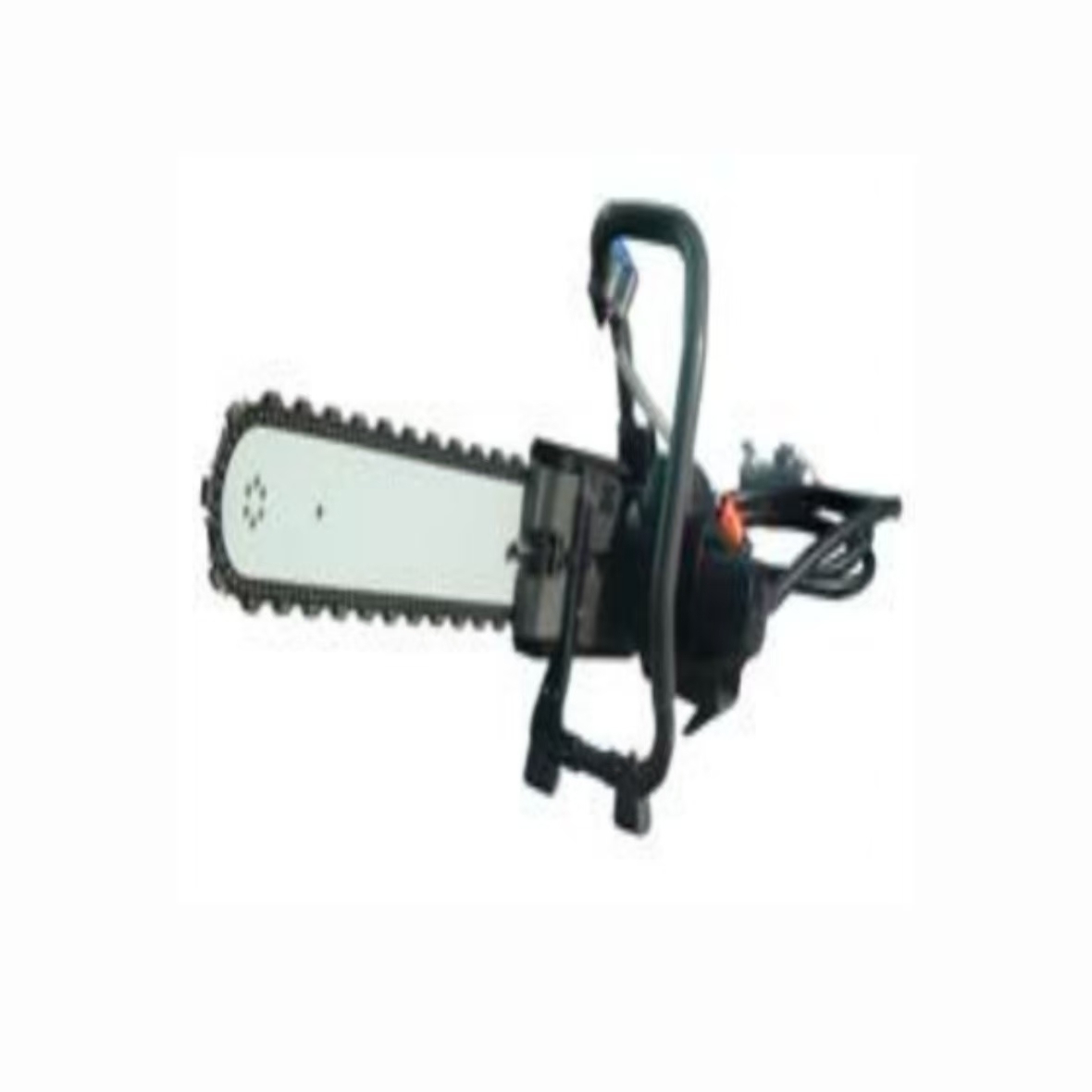

Pneumatic diamond chain saw (mine-use pneumatic chain saw)

Product Description

1,Overview

The pneumatic diamond chain saw is composed of three major parts: imported diamond chain saw head, hydraulic hose assembly, and self-pressurized cooling water tank. The hydraulic hose assembly connects the air source and the diamond chain saw. The air pressure provided by the air source drives the diamond chain saw to operate at high speed for cutting. During operation, the cooling water flows through the holes in the chain plate to the cutting area, serving the functions of cooling and dust suppression.
The pneumatic diamond chain saw can be used in rock mining and in mining operations. It can also be employed for the construction of sealed walls and for breaking through concrete and rock during rescue operations.
The air source required for the pneumatic diamond chain saw can be a ventilation duct or an air compressor (the pressure that the chain saw can withstand is 5-7 kilograms).

2,Features
Cutting rocks, concrete, reinforced concrete, pipes, bricks, stones and other stone materials;
Drilling slots, used for the construction of the sealed wall;
3,Functions
Rated spindle speed: ≥ 6000 r/min
Machine weight (excluding hydraulic hose assembly): ≤ 10 kg
Power source: Compressed air
Cutting performance S: For concrete bricks with a cutting section of 200mm × 100mm, a length of 500mm and a strength grade of C40, the cutting time should not exceed 40 seconds.
The maximum length of the board to be sawed is ≥ 43 cm.
Maximum cutting depth (in cm) ≥ 40
Rated pressure: ≤ 0.7 MPa
Rated flow: ≤ 1000 L/min
Rinse water pressure: 0.2 - 0.56 MPa
Noise: ≤ 120 dB(A)
Applicable rock hardness: ≤ 8 F
Maximum length of the tracheal connection: 200 meters
