LTMA2.0 Laser remote displacement monitor [With Angle] (2nd generation)

Minimum Order Quantity : 1 set Price : USD8000-11000
Packaging Details : Wooden case Delivery Time : 10 working days
Payment Terms : T/T Supply Ability : 20 Sets/Month
Place of Origin: China Brand Name: TOPSKY
Model Number: LTMA2.0

Detail Information

Laser: 1 Angle: 4
Video: Optional Monitor: X/y/z
Detection Range: 100M Accuracy: 0.01°

Product Description

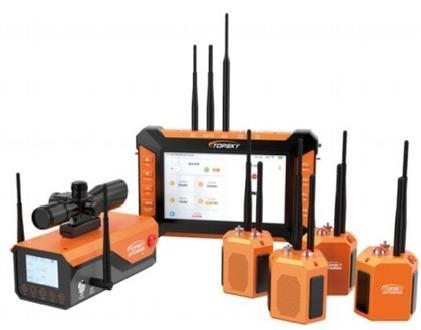

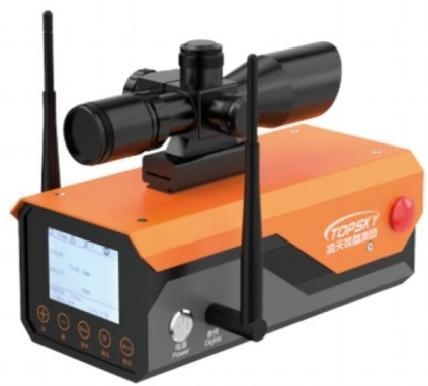

LTMA2.0 Laser remote displacement monitor

[With Angle] (2nd generation)









PRODUCT INTRODUCTION



LTMA2.0 displacement monitor uses two detection methods, harmless laser and Angle, to accurately detect any subtle movement of dangerous buildings and other building structures (such as floors, floor tiles, columns, walls) caused by earthquakes, bombs, gas explosions, etc.

Laser monitoring: use harmless laser, with built-in audio and light alarm function, support wireless remote control, two-way wireless transmission, can accurately measure the displacement status of wall and other targets and alarm.

Inclination monitoring: it has the function of displacement Angle change monitoring, built-in voice alarm and magnetic suction function, and supports wireless remote control and two-way wireless transmission.

It is equipped with a portable host, supports wireless remote control, two-way wireless transmission, adjustable and reset the alarm value of the monitor, and linkage alarm. It has GPS positioning and one-key search function. When the Angle monitor is buried in the ruins, it can be found through one-key search.

PRODUCT FEATURES



PRODUCT FEATURES



1. ★ Position search

The GPS positioning function can display the relative position of each monitor and the host; one key to find the tilt monitor, and distinguish the signal source through the probe voice broadcast function.

2. ★ Cloud platform

The equipment cloud management platform can remotely monitor the equipment information, including detection information, power and other information.

3. Remote control

Equipped with handheld portable host;

Adjust and reset the alarm value of the monitor;

Alarm in conjunction with the monitor.

4. Simultaneous monitoring of displacement and inclination

Accurate monitoring of current regional movements such as buildings;

High precision three-dimensional monitoring Angle change.

5. High precision three-dimensional monitoring

The three axis angles of X, Y and Z are monitored in real time; the detection accuracy is up to 0.01°.

6. Sound and light alarm

Exceed the set value, high decibel, high brightness sound and light alarm (can be silent);

Audio alarm (can be muted).
