[Smart gas detection + over-limit sound and light vibration alarm + large capacity storage + cloud platform + portable] (6th generation)

Minimum Order Quantity : 1set Price : USD3400
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: China Brand Name: Topsky
Model Number: CD4

Detail Information

Size: 230mm* 90mm* 60mm Weight: 700g
Battery Life: 10h Screen: 3-inch Color Liquid Crystal
Pump Suction Type: 0-3000 Ml/ Min Protection Level: IP67

Product Description

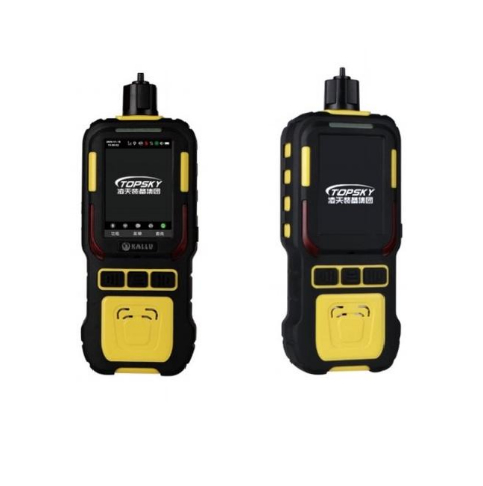

CD4 wireless composite gas detector

[Smart gas detection + over-limit sound and light vibration alarm + large capacity storage + cloud platform + portable] (6th generation)





PRODUCT INTRODUCTION



The wireless composite gas detector (hereinafter referred to as the detector) supports over twenty intelligent gas sensors and can simultaneously continuously detect the concentrations of six gases (gas types can be freely combined with system recognition) and dust concentration (PM2.5, PM10 by default). The collected gas data, GPS location, and dust concentration are uploaded via 4G to the regulatory backend for wireless management; the detector also features a one-click print function for real-time data on-site. The detector has functions for gas concentration calibration, concentration limit alarm, STEL limit alarm, and TWA limit alarm. Once the device detects that the collected data exceeds the limit, it immediately triggers an audio-visual vibration alarm to alert and synchronously upload the data to the platform. Multiple detectors can upload monitoring and surveillance information, establishing a multifunctional monitoring and surveillance system platform for special work environments to ensure the safety of workers.



PRODUCT FEATURES



1. Intelligent sensor

2. Cloud platform

3. Wireless networking

4. Real-time printing

5. Multiple alarm modes

6. Data interface

7. Environmental data detection

8. Large capacity storage

9. Long battery life

10. Working mode

11. Main screen

12. Multilingual mode



PRODUCT PARAMETERS



◆ Detection gas: up to 6 kinds of gases can be detected at the same time, and the types of gases can be freely combined, and the system can intelligently identify them

◆ Dust sensor: PM2.5, PM1.0

◆ Temperature and humidity sensor: temperature and humidity

◆ Screen: 3-inch color LCD screen

◆ Sound, light and vibration alarm: the gas concentration alarm threshold can be set separately

3.Main Technical Indicators

3.1 Wireless composite gas detector

1. Gas detection:

Up to 5 types of gases can be detected simultaneously, and the gas types can be freely combined with intelligent recognition by the system

Dust sensor: PM2.5, PM10

Temperature and humidity sensor: Temperature and humidity

Gamma ray sensor: detects nuclear radiation

2. Screen: 3-inch color LCD screen

3. Sound, light, and vibration alarms:

a) The gas concentration alarm threshold can be set separately

b) Exceeding the set threshold, sound, light, and vibration alarms will be triggered (sound ≥ 80dB, light visibility not less than 20m, and obvious vibration sensation when touching the instrument)

4. Working mode:

Pump suction: 0-3000ml/min can be continuously adjusted

5. 4G function:

Gas: 5 gas concentrations displayed in the background

Dust: PM2.5, PM1.0 backend display

Environment: Temperature, humidity, nuclear radiation background display

Battery level and GPS positioning display in the background

6. Printing function:

Consumables: 80MM thermal paper, 72MM effective printing width

Resolution: 203DPI 8 dots/MM 0.125MM/dot 576 dots per line

Power supply: Polymer rechargeable lithium battery 2000mAh * 2

7. Storage:

Historical data: curve chart

Data Memory: Capable of storing 260000 sets of data (able to store data continuously for no less than 6 months at a rate of 1 data per minute, with adjustable storage intervals)

8. Battery life: ≥ 8h

9. Language: Switch between Chinese and English

10. Size: 230mm * 90mm * 60mm

11. Weight:<700g

12. Protection level: IP66

13. Explosion proof certification: Ex ia IIC T5 Ga



3.2 Main Technical Parameters

Serial Number parameter range resolution unit
1 Ex 0-100% 1% %LEL
2 O2 0-30% 0.1 %VOL
3 CO 0-1000 1 PPM
4 NO2 0-20 0.1 PPM
5 H2S 0-100 1 PPM




[Smart gas detection + over-limit sound and light vibration alarm + large capacity storage + cloud platform + portable] (6th generation) 0



Company Information



Beijing Topsky Intelligent equipment Group Co.,Ltd.. (stock code: 836307) was founded in 2003, committed to making the world safer with innovative equipment, and determined to become a continuous leader in global high-end safety equipment.

Our company has independent R&D and technology promotion capabilities, and has one R&D and production building. Headquartered in Jinqiao Industrial Base, Zhongguancun High-tech Park, it is a national high-tech enterprise with a registered capital of RMB 46,514,300. Our company has independent R&D and manufacturing capabilities. Located in Beijing Economic Development Zone, the 3-story R&D building covers an area of 1,500 square meters, the production building is 1,800 square meters, and the third-phase production building is nearly 3,000 square meters under construction.

Our innovative technologies, services and systems are dedicated to serving the firefighting, law enforcement agencies, safety supervision bureaus, coal mines, petrochemicals, and armed police in many fields. It involves the research and development of high-end equipment such as drones, robots, unmanned ships, special equipment, emergency rescue equipment, law enforcement equipment, and coal mine equipment.

So far, many products have been exported to more than 10 countries.

[Smart gas detection + over-limit sound and light vibration alarm + large capacity storage + cloud platform + portable] (6th generation) 1

FAQ



1 Q:Do you have any discount?
A:Yes, if you buy large QTY, please send us a email, we will give you a big discount.

2 Q:What's the delivery time?
A:According to the specification and quantity of your order, generally 10-15 days for normal
standard products within 50pcs.

3 Q:Do you have overseas distributor?
A:Yes,we have distributors in Korea, Singapore, Malaysia, UK, Iran, India and so on.

4 Q:Can we use our logo on the products?
A:Yes.We can provide OEM and sign a licensing agreement.

5 Q:Are you manufacturer or trading company?
A:We are manufacturer with 18 years of experience.Welcome to visit our company.


6 Q:What's the means of transport?
A:Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.


7: Why we should choose your company?
We have many years of industry production and management experience, professional R & D, sales, after-sales team. It can
perfectly solve all the problems that customers encounter from purchase to sale.


8: How to cooperate with you?
You only need to contact our business representative, and they will be patient to guide you through the whole process


9: What's your payment way?
T/T by our bank account directly.
