Medium chemical resistance Pneumatic Suction Cup Type Leak Stopper heat resistance up to 90ºC
| Attribute |
Value |
| Dimensions |
680×550×200 (mm) |
| Effective plugging area |
≥Φ200-500mm |
| Inflation pressure |
8bar |
| Weight |
14kg |
| Vacuum pressure |
≥-0.80MPa |
Product Overview
When sealing the leakage point with a vacuum plate, the liquid is drained through the drainage box. The circular design achieves the best drainage effect. This product is a pneumatic, negative-pressure suction cup, which can be used for transfer operations.
When the circular sealing cushion of the pneumatic suction cup type leak stopper seals the leakage point with a vacuum plate, the liquid is drained through the drainage box. The circular design achieves the best drainage effect.
Scope of Application
Used for oil tankers, liquid tank trucks, large containers and oil storage tanks. It seals cracks on clean, smooth, slightly curved surfaces without any strapping. It is mainly used for plugging irregular holes. This product is a pneumatic, negative-pressure suction cup, which can be used for transfer operations.
Product Features
Medium chemical resistance; heat resistance up to 90ºC (short-term) or 85ºC (long-term).
Main Technical Indicators
- Dimensions: 680×550×200 (mm)
- Effective plugging area: ≥Φ200-500mm
- Inflation pressure: ≥8bar
- Vacuum pressure: ≥-0.80MPa
- Weight: 14KG
Product Configuration
- 1 suction cup
- 1 set of drainage system
- 1 set of vacuum system
- 1 drainage pipe
- 1 shut-off valve
- 1 inflatable hose (≥5 meters)
- 1 set of cylinder pressure reducer

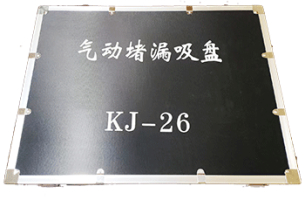

- 1 aluminum alloy toolbox
