Corrosion-resistant material Anti-Fall Auxiliary Components anti-ultraviolet treatment

The Anti-Fall Auxiliary Components is a professional set of components for high-altitude fall protection systems, including a full-body safety harness, rope protection pad, flat webbing, gloves, and other products. The user-friendly quick-release design allows high-altitude workers to quickly identify and operate the components even in complex environments.

It is widely applicable to high-altitude operation scenarios such as construction sites, power maintenance, and communication towers, providing full-process fall protection for construction workers. It can be used as an independent safety guarantee system or combined with existing protective equipment, and is particularly suitable for high-risk operations such as steel structure installation and external wall cleaning. In daily high-altitude operations like industrial maintenance and equipment servicing, it can effectively prevent accidental fall accidents and ensure the life safety of operators.

The product can meet the needs of different operating environments. The corrosion-resistant material and anti-ultraviolet treatment ensure reliability during long-term outdoor use, and the ergonomic weight distribution makes wearing more comfortable. The system is simple and intuitive to operate, serving as a cost-effective safety solution in the field of high-altitude operations.

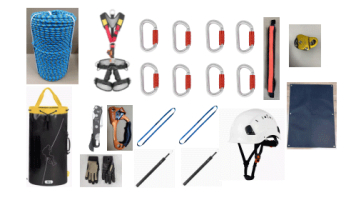

Components Include:

• 1 set of full-body safety harness (including accessories). The full-body safety harness shall be equipped with 1 main attachment point at the abdomen (usable in inverted position) and 2 protection attachment points (located at the chest and back respectively).
• Accessory (1): Equipped with a chest ascender, complying with the standard of XF494-2023 Fall Protection Equipment for Fire Fighting.
• 1 rescue descender: Applicable rope diameter: 9-12mm; breaking strength ≥ 20kN; complying with the standard of XF494-2023 Fall Protection Equipment for Fire Fighting.
• 8 O-type safety hooks: Longitudinal tensile strength ≥ 26kN; transverse tensile strength ≥ 8kN; opening tensile strength ≥ 7kN; opening width ≥ 20mm; weight ≤ 85g; complying with the standard of XF494-2023 Fall Protection Equipment for Fire Fighting.
• 1 hand ascender: Used for rope ascending, suitable for ropes of 8-13mm; weight ≤ 220g; complying with the standard of XF494-2023 Fall Protection Equipment for Fire Fighting.
• 2 flat webbings: Nylon material; length ≥ 120cm; breaking strength ≥ 22kN; complying with the standard of XF494-2023 Fall Protection Equipment for Fire Fighting.
• 1 pair of gloves: Sheepskin material; the back is made of breathable elastic nylon; the wrist is made of neoprene with a small hole designed for connecting the gloves to the safety belt with a lock. Complying with the standard of GB 24541-2022 Hand Protection - Gloves for Protection Against Mechanical Hazards.
• Static rope: Requirements - Diameter 10.5mm, nylon material, breaking strength ≥ 25kN; Length ≥ 50m; complying with the standard of XF494-2023 Fall Protection Equipment for Fire Fighting.
• 2 rope protection sleeves: Length ≥ 50cm; capable of holding 2 ropes of 10.5mm; complying with the standard of GB/T 21196.2-2007.
• 1 backpack: The equipment bag can hold all the equipment; complying with the standard of GB/T 21196.2-2007.
• 1 mobile fall arrester: Built-in locking function (when locked, the arrester allows one-way rope movement; when unlocked, it can follow slow descent); breaking strength ≥ 15kN; applicable rope range: 10-13mm; including a dedicated shock absorber; overall length of the equipment ≥ 40cm; weight ≤ 200g; complying with the standard of XF494-2023 Fall Protection Equipment for Fire Fighting.
• 1 mountain rescue helmet: Lightweight and ventilated; suitable for head circumferences of 53-63cm; weight ≤ 500g; complying with the standard of GB 24429-2009.
• 1 foot strap: Adjustable foot loop, used with hand ascender for ascending; Material - Polyethylene fiber; adjustable buckle made of light alloy; breaking strength ≥ 5kN; weight ≤ 50g; complying with the standard of XF494-2023 Fall Protection Equipment for Fire Fighting.
• 1 rope protection pad: Size ≥ 100*80 (unit: mm); wear-resistant material; complying with the standard of GB/T 21196.2-2007.

Product Size: 803525mm

Product Weight: Approximately 7kg
