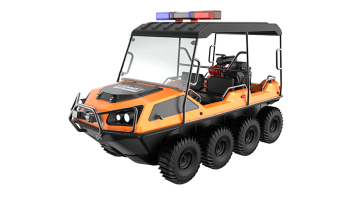

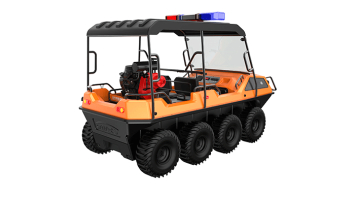

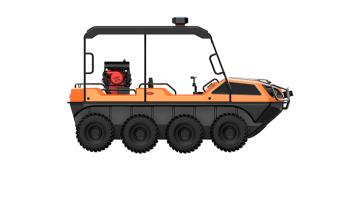

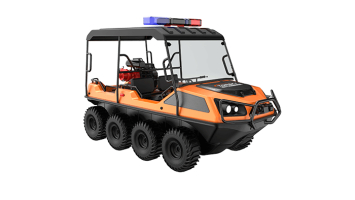

High Pressure Centrifugal Pumps Forest Firefighting Amphibious All-Terrain Vehicle
Product Description
With the aim of completing reliable field emergency rescue, this amphibious all terrain vehicle can provide a safe transportation method and reliable transport platform. The product can achieve all-weather continuous operation in various working environments such as mountainous, wetland, swamp, water surface, and jungle environments.
Forest firefighting amphibious all terrain vehicle is an emergency rescue equipment designed specifically for complex terrains. It combines the efficient firefighting capability of fire pumps and the maneuverability of all terrain vehicles, and is suitable for firefighting and rescue tasks in various scenarios such as forests, swamps, rivers, etc.
Breaking through terrain limitations and shortening rescue response time; One vehicle can handle multiple functions, including firefighting, transportation, and rescue.
Key Applications
Fire Extinguishing
When a fire occurs, the forest fire amphibious all terrain vehicle can be ready immediately, deploy firefighters, and use the spray and foam equipment carried on the vehicle to suppress the fire source on the site. Equip with the same equipment to protect fire prone areas and prevent risks before they occur.
Water Rescue
Forest firefighting amphibious all terrain vehicles can easily navigate through flooded, muddy, swampy and other environments without the need for manual transportation, achieving free switching between land driving and water walking, and arriving at the scene for rescue in the fastest time possible.
Search and Rescue Operations
In complex and harsh terrain conditions, these vehicles enable search and rescue personnel to quickly reach the rescue site, reducing walking costs and completing emergency rescue tasks efficiently. They can be equipped with winches, rescue stretcher components, searchlights, warning lights, alarms, and other equipment to provide comprehensive rescue support.
Main Technical Parameters
1. Technical Parameters of the Vehicle
1.1 Basic Parameters
| 1) ★ Vehicle weight |
≤ 830kg |
| 2) ★ Rated load capacity |
600kg on land, 400kg on water |
| 3) Vehicle size |
≤ 3400 * 1600 * 1350mm |
| 4) Minimum ground clearance |
≥ 220mm |
| 5) Wheelbase |
≤ 680mm × 3 |
| 6) Track width |
≤ 1350mm |
1.2 Power Parameters
| 1) Engine type |
Four stroke air-cooled, overhead valve (OHV) |
| 2) Displacement |
993CC |
| 3) Horsepower |
40HP |
| 4) Maximum torque (N.m) |
74 |
| 5) Clutch mode |
CVT |
| 6) Transmission mode |
2 forward gears, neutral gears, reverse gears |
| 7) Fuel grade |
92# |
| 8) Fuel tank capacity |
40L |
1.3 Performance Parameters
| 1) Starting method |
Key switch electric start |
| 2) Drive mode |
Land: All wheel drive; Water: All wheel drive |
| 3) ★ Integrated digital dashboard |
Speedometer, tachometer, odometer, oil pressure display, handbrake warning light, lighting, gear display indicator, etc |
| 4) ★ Maximum speed |
Land: ≥ 50km/h; Water: ≥ 5km/h tires; ≥ 8km/h (pump push) |
| 5) Minimum turning radius |
≤ 699.7mm |
| 6) Maximum climbing |
≥ 35 ° |
| 7) Braking method |
caliper disc hydraulic brake |
| 8) Transmission |
Automatic transmission |
| 9) Traction capacity |
≥ 460kg |
| 10) Overall torque of the vehicle |
3800N. m |
| 11) Tire size |
25 * 12-9 NHS |
| 12) Approach angle |
≥ 42 °, departure angle ≥ 74 ° |
| 13) Maximum tilt angle |
≥ 35 ° |
| 14) Obstacle crossing |
≥ 250mm |
| 15) Crossing trenches |
≥ 500m |
| 16) Operation mode |
Handle type operation |
| 17) Throttle mode |
Hand held throttle |
| 18) ★ Wireless remote control function |
Remote control distance ≥ 1 kilometer |
| 19) ★ Comprehensive monitoring device for water rescue |
Wireless video transmission, video storage, intercom function, positioning function, lighting system, leakage detection function |
| 20) ★ Certification |
Certificate of conformity (CCS) issued by the China Classification Society Aquatic Life Saving Laboratory |
2. Fire Pump Parameters
| 1. Fire extinguishing operation |
Separate or series water supply fire extinguishing operation |
| 2. Pump type |
Four stage centrifugal pump with detachable clamp |
| 3. Impeller material |
Stainless steel or aluminum alloy |
| 4. Engine type |
Single cylinder, two-stroke, forced air cooling |
| 5. Maximum engine power |
≥ 14HP |
| 6. Engine starting system |
Manual and electric start |
| 7. Total weight of the machine |
≤ 30kg |
| 8. Overall dimensions |
≤ 620 × 420 × 420 mm |
| 9. Maximum flow rate |
≥ 320L/min |
| 10. Maximum pressure |
≥ 2.0MPa |
| 11. Maximum head |
≥ 240m |
| 12. Maximum range |
≥ 33m |
| 13. Maximum suction stroke |
≥ 6m |
| 14. Fuel tank capacity |
≥ 12L |
| 15. Water diversion method |
Manual water diversion |
| 16. Inlet diameter |
DN50 |
| 17. Outlet diameter |
DN40 |
| 18. Configuration requirements |
1 backpack accessory package, 1 DC spray gun, 1 water mist spray gun, 1 one-way valve, 1 three-way valve, 1 bottom valve, 1 water stop clamp, 2 water hose wrenches, 1 relay adapter, 1 manual vacuum pump, 1 set of oil tank, and 1 3-meter suction pipe. |
Application Scope
- Firefighting and fire suppression
- Emergency material delivery
- Surveying and mapping
- Security protection
- Maritime supervision
- Logistics transportation
Endowed with the characteristics of heavy payload and long endurance, it can perform long-duration, large-scale patrol and monitoring tasks, as well as undertake operations like heavy cargo transportation and emergency rescue material delivery.
Product Features
- Remarkable payload capacity and ultra-long endurance
- Lightweight design while ensuring airframe strength
- Supports autonomous flight, autonomous landing, and automatic obstacle avoidance functions
- High intelligence and can adapt to a variety of complex mission environments
