Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range

Place of Origin:	china	Brand Name:	topsky

Detail Information
Measuring Range:	0-550mg / 100ml	Harness:	1200mm×80mm
Detect Mode:	Automatically	Broken Glass Capacity:	≤12mm Temper Glass
Primer Diamter:	38mm	Other Name:	Coverall Type Medical Isolation Gowns
Angle:	120 Degree	Manipulator Max Grab:	10KG
Life:	100 Shootings	Control Way:	Battery Powered
Protection Level:	NIJ Level IIIA	Main Engine Weight:	28kg
System Power Supply:	AC220V/80W	Purple Light Power:	700mW
Vertical Adjustment:	0-30cm
Highlight:	lightweight explosive disposal robot , 10kg grab bomb disposal robot , 500m range counter terrorism robot

Product Description

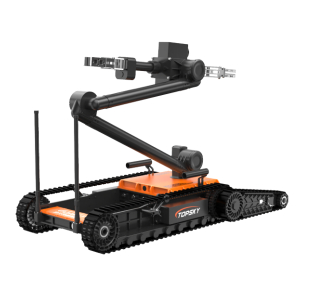

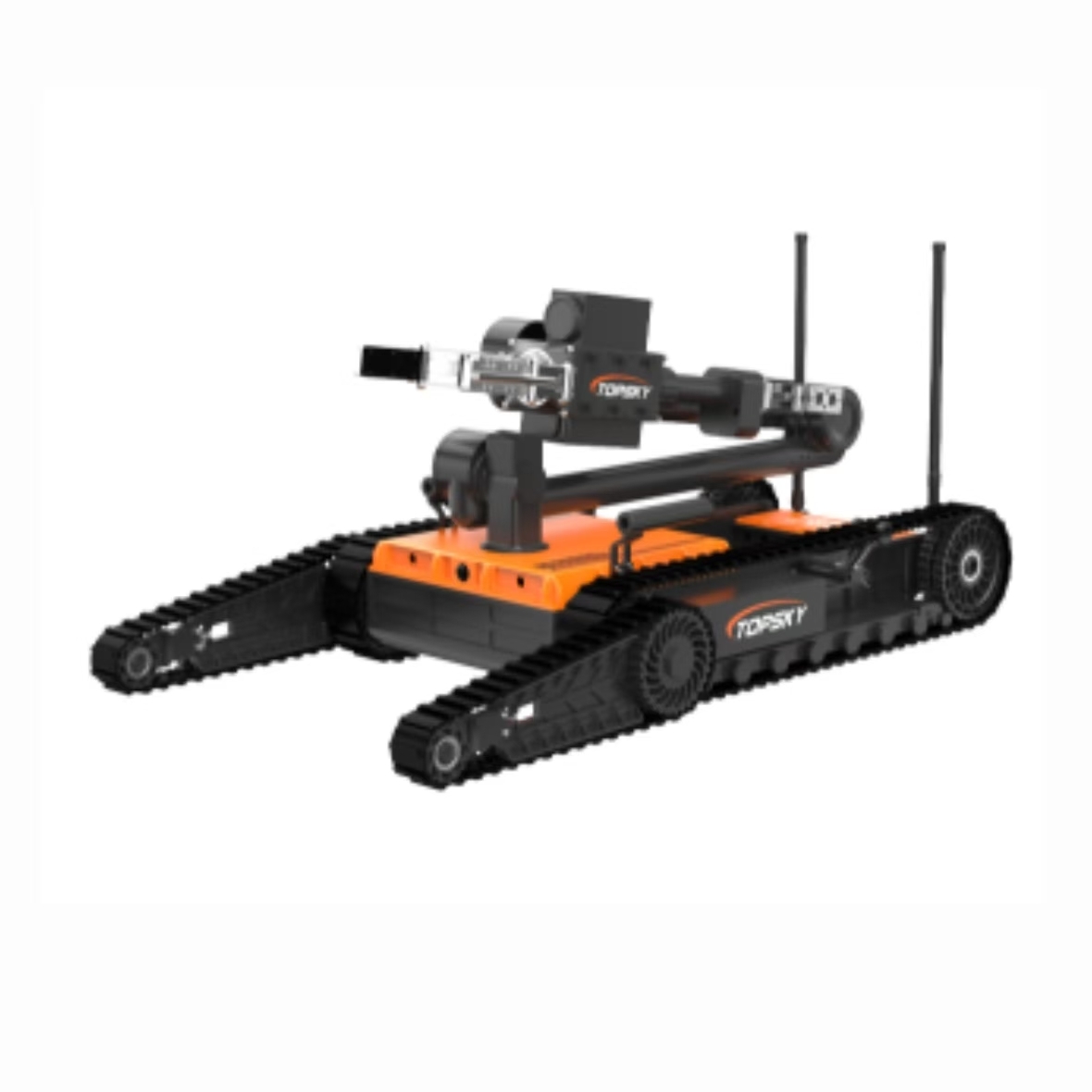

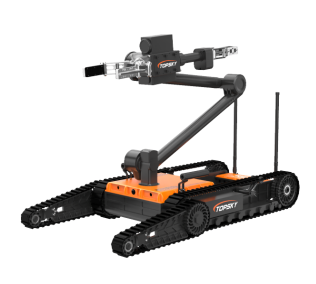

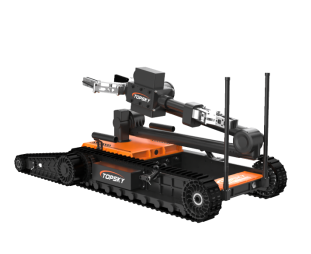

Lightweight Explosive Ordnance Disposal Robot

Overview

Designed for explosive handling and reconnaissance in inaccessible terrain, this EOD robot features a 7-degree-of-freedom robotic arm capable of rotating at various angles. The arm can lift up to 16kg at the proximal end and 3kg at the gripper, and can be equipped with explosive destruction devices for on-site neutralization.

Key Features

Advanced Robotic Arm: 7 degrees of freedom with 15 preset shortcut functions and one-click reset
Superior Mobility: Climbs 45° slopes, 43° stairs, overcomes 30cm obstacles, and crosses 40cm trenches
Enhanced Vision System: 4 HD cameras plus 1 pan-tilt-zoom camera with 1km communication range
Modular Design: Robotic arm, battery, and control box components for easy maintenance
Dual Control: Wired operation capability for environments with network interference

Technical Specifications

Model	ER3 Generation 9
Dimensions	≤ 830mm (L) × 600mm (W) × 450mm (H) in transport state
Weight	≤ 37kg
Power	Lithium Polymer Battery
Max Speed	≥ 1.8m/s with variable speed control
Operation Time	≥ 4 hours continuous
Control Range	≥ 500m wireless (visual)
Protection Rating	IP65 (whole machine)
Compliance	GA/T 142-1996 Police Industry Standard

Performance Capabilities

Slope climbing: ≥ 45°
Stair climbing: ≥ 43°
Obstacle clearance: ≥ 300mm
Trench crossing: ≥ 400mm
Water fording: 200mm depth
Braking distance: ≤ 0.1m
Straight running deviation: ≤ 3%
