Electricity inspection quadruped robot dog (puppy + self-organizing network + laser navigation + industrial control computer + dual optical pan-tilt)

Minimum Order Quantity : 1set Price : USD31900
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T, D/P Supply Ability : 10sets/month
Place of Origin: China Brand Name: Topsky
Model Number: RXR-T3Z

Detail Information

Speed: 3.7m/s Continuous Walking Load: 8kg
Weight: 23 Kg Size: 700mm × 310mm × 400mm ± 50mm;
Highlight:

electric inspection quadruped robot dog

,

fire fighting robot with laser navigation

,

industrial robot dog with dual optical

Product Description

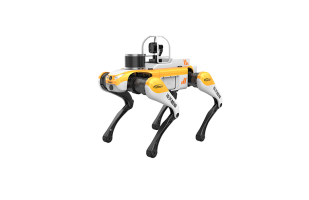

Electricity Inspection Quadruped Robot Dog
Product Overview

The electric power inspection quadruped robot dog is a high-tech equipment specially designed for power-related scenarios, playing a crucial role in enhancing the safety and efficiency of operations. It integrates robotic technology, artificial intelligence algorithms, and precise sensor systems, enabling it to operate in various complex environments and perform important tasks such as power inspections.

Equipped with self-organizing networks, laser navigation, industrial control computers, and dual optical pan-tilt cameras, this robot significantly enhances the intelligence and professionalism of power inspection work. It can replace inspection personnel in dangerous environments, effectively ensuring staff safety and achieving rapid, accurate, and scientific rescue goals while reducing casualties and property losses.

Product Features
  • High flexibility and adaptability: Capable of effectively performing tasks in various environments
  • Strong load-bearing capacity with IP65 protection level
  • Diverse module configuration: Equipped with expansion interfaces supporting secondary development
  • Multi-functional: Supports video surveillance, remote communication, thermal imaging detection, two-way intercom and audio communication
  • High speed: Maximum speed 18 km/h (5 m/s) with full free-range omnidirectional movement
  • Handheld integrated remote control terminal with robot control, video transmission, voice communication, video recording and projection
  • Lithium battery power supply with quick-insert structure for easy replacement
  • Lightweight and compact design for single-person carrying
Technical Specifications
Overall Performance
Parameter Specification
Name Electric Patrol Quad-legged Robot Dog
Model RXR-T3Z
Protection Grade IP65
Chassis Standing Dimensions 700mm × 310mm × 400mm
Chassis Folding Dimensions 700mm × 310mm × 200mm
Whole Machine Weight ≤ 23Kg
Battery Integrated plug-in high-performance lithium battery, capacity ≥ 8000mAh, 29.6V nominal voltage
Operating Time 2-3 hours comprehensive operation
Maximum Load 15 kg
Maximum Speed 5 m/s
Maximum Slope Angle 40°
Maximum Obstacle Clearance 16 cm
Working Temperature -10ºC to 50ºC
Dual Light Sensing Module
Component Specification
Thermal Imaging 384×288 resolution, -20ºC to +550ºC measurement range, ±3ºC accuracy
Visible Light 2 million pixels, 1920×1080 resolution, dual-band image fusion enhancement
Lidar Parameters
Laser Lines 40 lines
Scanning Distance 0.1m - 40m @ 10%, 70m @ 80%
Viewing Angle 360° × -7 to +52°
Point Cloud Frequency 200,000 points/s

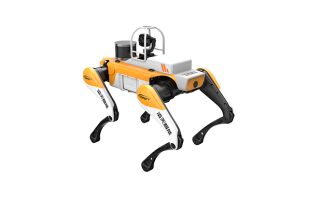

Electricity inspection quadruped robot dog (puppy + self-organizing network + laser navigation + industrial control computer + dual optical pan-tilt) 0
Frequently Asked Questions
  • Do you offer discounts? Yes, for large quantities please contact us for special pricing.
  • What is the delivery time? Typically 10-15 days for standard products up to 50 pieces.
  • Do you have overseas distributors? Yes, we have distributors in Korea, Singapore, Malaysia, UK, Iran, India and other countries.
  • Can we use our logo on products? Yes, we provide OEM services and can sign licensing agreements.
  • Are you a manufacturer or trading company? We are a manufacturer with 18 years of industry experience.
  • What transportation methods do you use? Express services including TNT, FedEx, DHL, UPS, or logistics as specified.
  • Why choose your company? We have extensive industry experience with professional R&D, sales, and after-sales teams to solve all customer needs.
  • How do we cooperate with you? Simply contact our business representatives who will guide you through the entire process.
  • What payment methods do you accept? We accept T/T bank transfers.
