Military Security Patrol Robot 6km/H Autonomous Cruise Speed
Detail Information |
|||
Name: | EOD Equipment/ RXR-C360D-2 Omnidirectional Mobile Reconnaissance Robot/ Detection Robot | Detection Types: | 1)CO2 \ CH4 \ CO \ H2S \ Humidity \ Temperature \ Video |
---|---|---|---|
Temperature: | -20 To 100 ° C | Humidity: | 0-100% |
Size: | 364 * 364 * 100mm | System Power Supply: | 24v |
Working Time: | ≥2h | ||
High Light: | eod tools and equipment,bomb disposal equipment |
Product Description
EOD Equipment/ RXR-C360D-2 Omnidirectional mobile reconnaissance robot/ detection robot

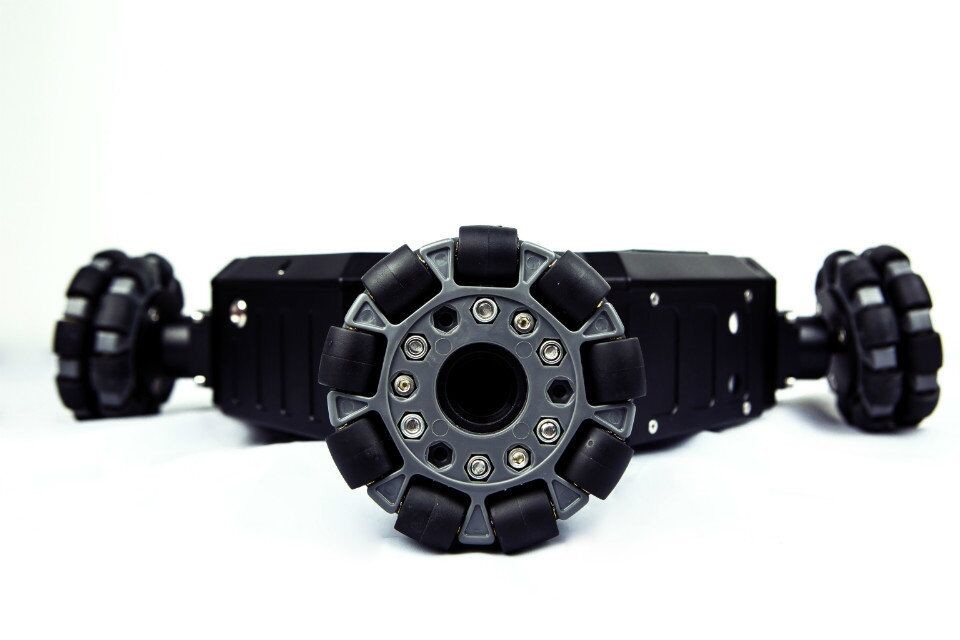

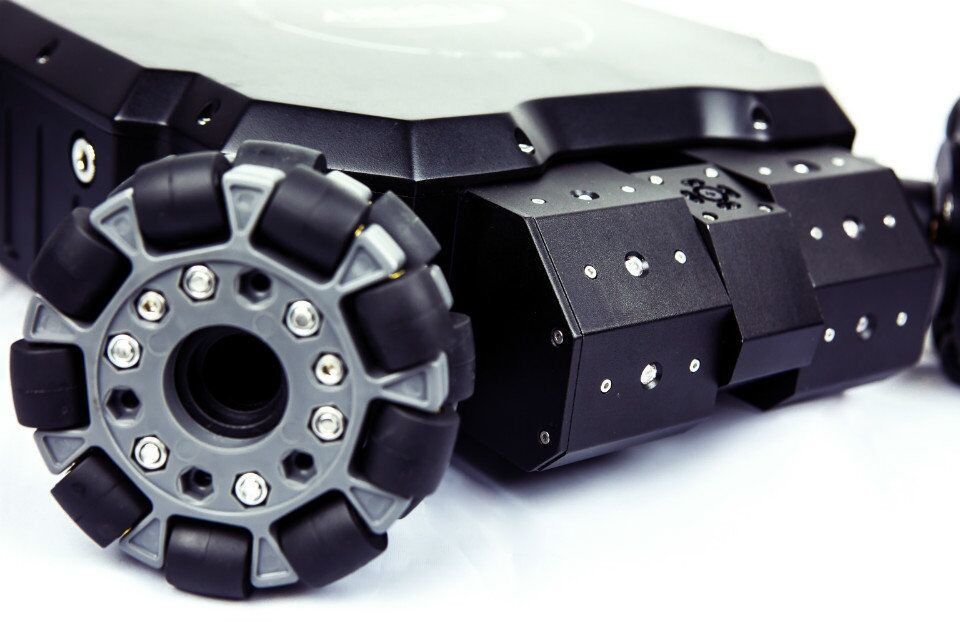

RXR-C360D-2 omnidirectional mobile reconnaissance robot is beautiful and small-scale detection robot.It’s mainly for major hazard monitoring, remote control and can go to dangerous places, the major hazard source of toxic and harmful gases Collection and camera forensics. The wheel is strong and flexible, with any direction of the angle of translation movement ability to make it more quickly reach the designated location and get fast and accurate detection of toxic and harmful gas concentration.
Product Features
1, with a major hazard source detection module it’s more suitable for dangerous and difficult to close the space operations and reduce casualties.
2. smaller and more suitable for people not easy to reach the narrow, low-space operation.
3. the movement is flexible and easy to operate with any direction of the angle of translation movement.
4. With high-definition wide-angle camera, with 0 ° ~ 90 ° rotation angle it can be a comprehensive detection of the surrounding situation.
5. It is fast which can save time and greatly improve the work efficiency.
The main parameters (★ for the key parameters)
Body parameters
1) ★ detection types: CO2 CH4 CO H2S humidity temperature video
2) ★ gas detection
CO2:0-100%VOL
CH4: 0-4%VOL
CO:0-1000ppm
H2S 0-100ppm
3) ★ temperature and humidity
Temperature: -20 to 100 ° C
Humidity: 0-100% RH Weight: ≤ 6.1KG
4) Size: 364 * 364 * 100mm
5) System power supply: 24v
6) Working time: ≥2h

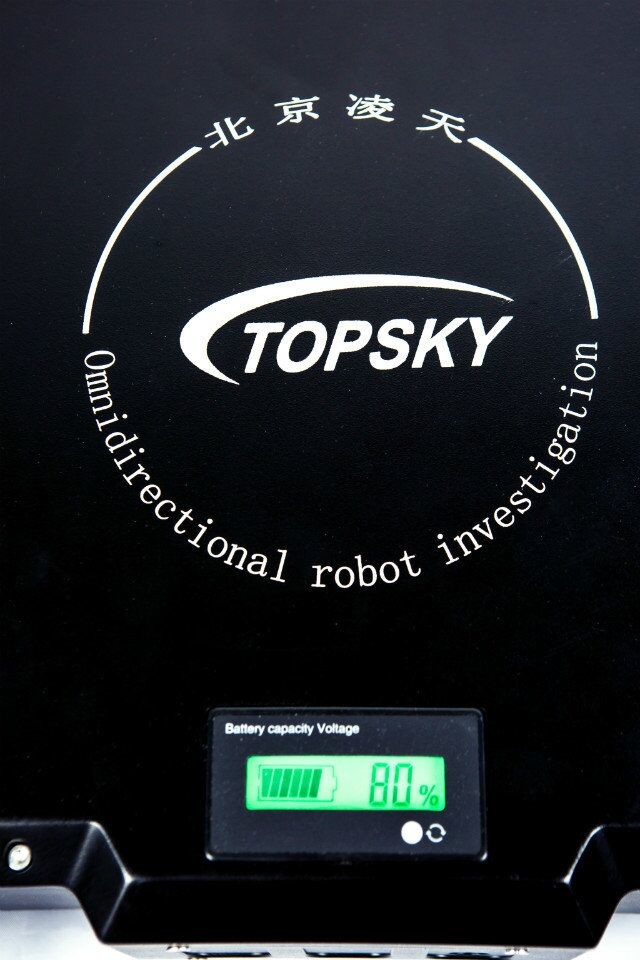

7) Power display: Yes
8) lighting system: LED × 6 highlights
9) Work temperature: -15 ~ +50 ℃
10) speed: any direction ≥ 0.8m / s, stepless speed regulation, rotation 60 ° / s
11) PTZ tilt: 0 ° ~ + 90 °
12)Tilt speed: 60 ° / s
13) Obstacle ability: ≤15mm Small ground fluctuation
14) climbing ability: ≤ 25 ° gentle road
15) Relative humidity: 0 to 95%
16) Camera pixels: 10 million
17) Camera lens: not less than 140 °wide-angle lens
18) can detect the source of danger: CO2 CH4 CO H2S
Controller parameters
19) Weight: ≤ 1.4KG
20) Size: 278 * 184 * 43mm
21) System power supply: 12v
22) Working time: ≥2h
23) Power display: Yes
24) Display screen: 7-inch 156 × 89 high-brightness display
25) joystick: a rocker to control the left and right direction, the other joystick control left front, right front, left rear, right rear direction
26) Work temperature: -15 ~ +50 ℃
27) Screen display: to achieve the video and detection of gas data (CO2 CH4 CO H2S humidity temperature) conversion
28) System components:
Omni-directional mobile reconnaissance robot
A Integrated control box
A robot charger
A control box charger
A copy of the instruction manual
Product certification one
A set of packing boxes
