1. Product characteristics:

1) Use advanced back scattering imaging technology:

Back scattering technology refers to the use of low -energy X -ray irradiated by the subject, and the detector collects the information of the scattering back to learn about this point. The X -rayer scan the entire object by the flying point scanning system to obtain the image of the entire object.

Because the X -ray machine and the detector are arranged on the same side, the equipment structure is compact and easy to arrange. It can detect the defects of ordinary transmission X -ray detection.

2) High integration, simple operation, single person can operate:

Equipment detection and control part of the integrated design. The control part is an 8 -inch tablet. When using, open the software image collection function. The handheld device is aimed at the object that needs to be detected. Hold the handle with your hands and press the handle of the hand to work.

Having a dual laser positioning function, it is convenient to quickly determine the scan position.

Single people can complete all testing work. The display can also be removed as a tablet for control.

When operating, the operator can see the instrument in the area in the area in the area. Scan the area where the handheld device needs to be detected, and you can see the scanning image immediately. The object can be detected in any direction and angle, without detecting dead ends and blind spots.

3) The quality of the image is good, and it can easily distinguish the organic matter:

Due to the characteristics of X -ray scattering, back scattering technology is naturally sensitive to organic matter such as explosives, drugs, and can clearly distinguish organic matter and inorganic objects. While carrying forward this advantage, our company's products have optimized the equipment structure with strong technical strength and optimize the equipment structure. Under the premise of controlling the volume of the equipment, the image effect can reach the world's advanced level. It can distinguish 0.32mm metal wire and excellent noise control.

4) Large detection area, excellent performance, good workmanship

The equipment detection area is large, when the object is 5cm, the width of the field of vision is 160mm, the length direction is the scanning direction, there is no distance limit, the scanning speed can reach 33cm/s. The total weight of the equipment is about 6.5kg, which is convenient for handheld. ABS engineering plastic shell, strong structure and excellent workmanship.

5) Low radiation volume and long battery life:

The low -energy ray machine is used, and the X -ray coverage is a very small scanning point. Therefore, the radiation dose is extremely low, which is only slightly higher than the environment of the environment. It is suitable for long -term handheld use.

1. Back scattering detection method can detect suspicious packages, walls, furniture, car tires and internal spaces in the car. Single -sided detection imaging does not need to set any imaging device behind the inspection items.

2. The product has independent intellectual property rights, and the national invention patent with hand -held back scattering imaging instruments.

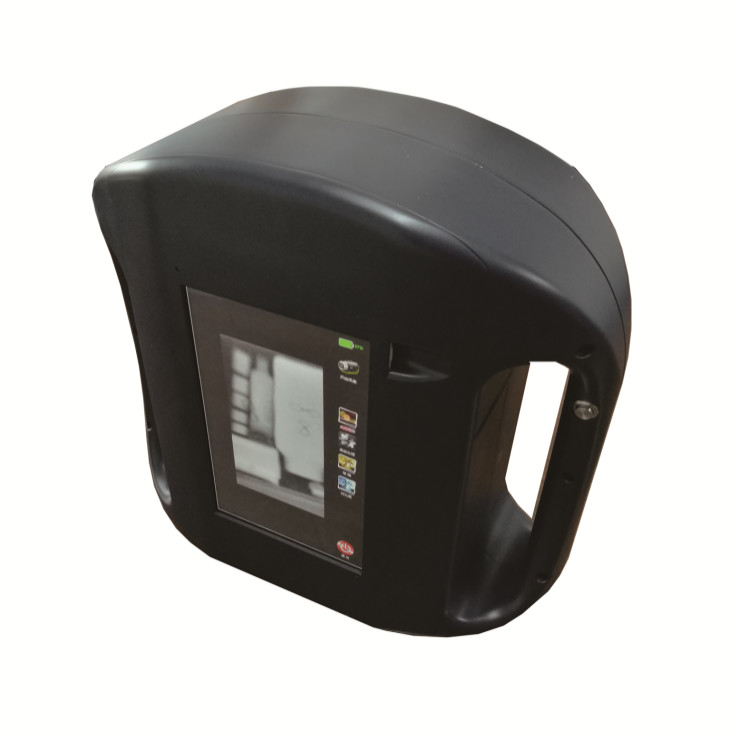

3. The integrated body design, the image display processing terminal is a 8 -inch screen tablet, the display can also be removed as a tablet for control. The tablet is installed on the back of the back scattering host. When the operator is operated by a single person, the image is displayed in real time when the equipment scan is scanned. The operator can see the image directly.

4. Have dual laser positioning, which is convenient to quickly determine the scan position.

5. Software: With image enhancement, brightness adjustment, contrast adjustment, smooth, pseudo -colored, anti -chip, puzzle function.

6. When scanning an image, there is a normal -closed ray start and stop button on the hand. The person can only launch the rays. Release the launch of the rays immediately to ensure the safety of the equipment.

7. Image resolution: It can distinguish 0.32mm metal wire, 0.32mm metal wire on the plastic board, and the naked eye can recognize the metal wire in the image.

8. Passing power: The organic glass or soap after 2mm steel can be distinguished.

9. Detective area: When the device is 50mm from the object, the detection width is not less than 160mm, and there is no limit to the length direction.

10. Detection speed: 330mm/s, the image is scanned.

11. Power supply: Lithium battery power supply (disassembly), battery life is greater than 4 hours.

12. Equipment weight: 6.5kg (including battery).

13. Dimensions: 324mm x 320mm x 143mm.

14. All equipment can be placed in a instrument box.
