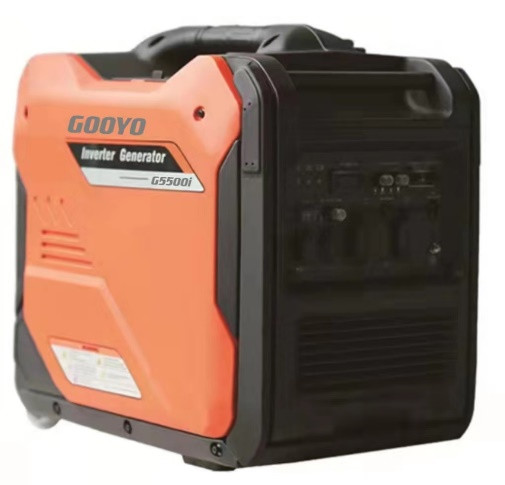

5kva Powerful Diesel Digital Generator Set For Fire Fighting Equipment

Product Description

Diesel digital generator set

1, Product Overview

Diesel digital generator sets have a wider power coverage of 3KVA-10KVA; The PMG motor and IGBT inverter are the core components, with small size and light weight; LED digital controller with display and protection functions, anti-interference and low-temperature resistance. Silent unit with special air duct system, lower temperature inside the casing and lower noise; Optional IP67 protection level aviation AC socket or IP44 ordinary socket: flexible customization solution, providing customized services for high altitude of 5000 meters and low temperature of -41 ° C

2, Applicable scope

Fire rescue

Emergency rescue

3, Product features

• Lightweight design, compact and silent
• Power coverage 800-7500W
• Output power same quality as commercial electricity
• Multiple standard voltage sockets are available for use in different areas
• Inverter technology (AC DC AC) meets the electricity needs of different users

4, Main technical indicators

1. Rated frequency 50Hz

2. Rated output power 5KVA

3. Maximum output power 5.5KVA

4. Rated voltage 230V

5 Rated current 21.7A

6. Rated speed 4800r/min

7 Voltage stability time 3 (s)

8 Voltage fluctuation rate 1 (%)

Frequency steady-state adjustment rate (%): ≥ -3.0. ≤+3.0

10 frequency transient adjustment rate (%): ≥ -7.0. ≤+7.0

11 Frequency stability time 3 (s)

12 Frequency fluctuation rate (%): ≤ 1

13. Cold and hot state voltage variation 3 (%)

14 Voltage waveform sinusoidal distortion rate (%): ≤ 8

15 Voltage stability time (s) ≤ 3

16 engine model G172Fi

17. Structural type of cylinder body: single cylinder, four stroke, air-cooled overhead valve

18 Lubricating oil model: SF grade or above or SAE10W-30, 15W-40

19 Lubricating oil capacity: 0.6L

20 ignition system: all transistor electronic ignition (TCI)

21 Starting methods: recoil manual start, electric start

22 Fuel type: Unleaded gasoline for vehicles

23 Minimum fuel consumption rate: 395g/KW. h

24 units have overload output

The 25 digit display function includes

26 Low oil pressure alarm available

27 parallel functions include

28 Fuel tank capacity 10L

29 Continuous operating time (at rated output) 4h

30 external dimensions (length x width x height) mm: ≤ 630X490X570

Net weight of Unit 31: 45kg

32 Structural type: Mobile silent type (with wheels)

5, Product configuration

1 Diesel digital generator set

1 instruction manual

1 certificate of conformity
