    Product Details:

    Place of Origin: China
    Brand Name: TOPSKY
    Model Number: QXWB12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Packaging Details: Export standard
    Supply Ability: 200 Sets/Month
    Contact Now
    Detailed Product Description
    Name: Fire Fighting Equipment QXWB12 Backpack Water Mist Fire Extinguisher Filling Capacity: 12 Litres
    Working Pressure: 7.5bar Operating Time: Appr. 25 Sec.
    Flow Rate: 24 Litres/min Operating Temperature: Tmin +5°C; Tmax +60°C

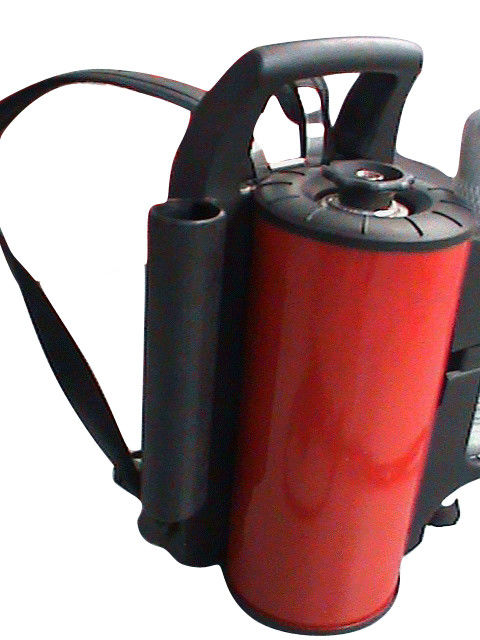

    Fire Fighting Equipment QXWB12 Backpack water mist fire extinguisher



    Applications:

    It has applied advanced aerodynamics technology from flow engineering applications involving liquid/gas mixtures to create QXW series water mist systems.



    Backpacks

    We specialize in harnessing water mist technology in portable formats that has given firefighting a new capability around the world. The portable products bring in significant reductions in response time, better accessibility and efficient firefighting thus helping control fires in the initial stages.



    The Backpack is available with the option of usage along with a breathing apparatus. Backpack systems are ideal for use in industry, first intervention system in coal mine, fire trucks & emergency vehicles, offshore & marine.



    Technical specification:



    Extinguishing agent tank
    Filling capacity 12 litres
    Material Stainless steel
    Working pressure
    Pressure 7,5 bar
    Propellant gas bottle
    Medium Compressed air
    Pressure cylinder Filling pressure: 300bar
    Volume: 2 litres
    Technical parameters
    Operating time Appr. 25 sec.
    Flow rate 24 litres/min
    Operating temperature Tmin +5°C; Tmax +60°C
    Carrying device Ergonomically shaped
    Extinguishing gun
    Changeover time Appr. 3 sec. (jet to spray mode)
    Lancing distance Appr. 13 – 16m jet mode
    Appr. 6 – 7m spray mode
    Ratings (extinguishing performance)
    A Fire Class 55 A (as per EN3)
    B Fire Class 233 B (as per EN3)
    IIB (EN 1866) (e.g.: with exting. agent Moussel C)
    Dimensions
    Weight empty 35 kg
    Dimensions (LxWxH) Appr. x x mm
