Powerful Mobile Water Spray Fire Extinguisher Independent Suspension Design LT-EQR5 Disinfection and anti-epidemic robot
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | TOPSKY |
| Model Number: | QXWB12 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Export standard |
| Supply Ability: | 200 Sets/Month |
|
Detail Information |
|||
| Name: | Fire Fighting Equipment QXWB12 Backpack Water Mist Fire Extinguisher | Filling Capacity: | 12 Litres |
|---|---|---|---|
| Working Pressure: | 7.5bar | Operating Time: | Appr. 25 Sec. |
| Flow Rate: | 24 Litres/min | Operating Temperature: | Tmin +5°C; Tmax +60°C |
| High Light: | pressurized water fire extinguisher,water spray fire extinguisher |
||
Product Description

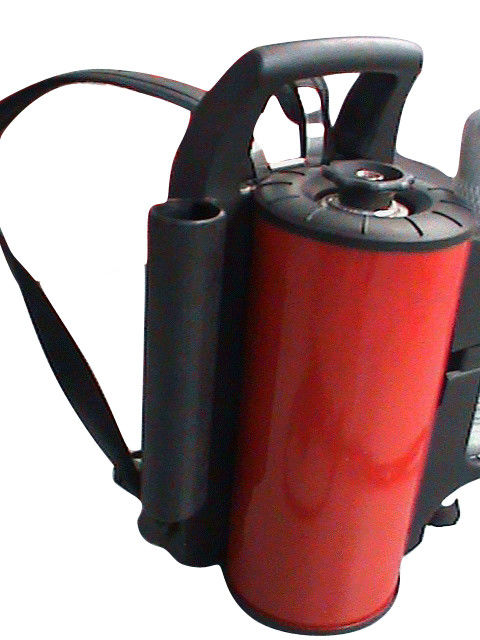

Fire Fighting Equipment QXWB12 Backpack water mist fire extinguisher
Applications:
It has applied advanced aerodynamics technology from flow engineering applications involving liquid/gas mixtures to create QXW series water mist systems.
Backpacks
We specialize in harnessing water mist technology in portable formats that has given firefighting a new capability around the world. The portable products bring in significant reductions in response time, better accessibility and efficient firefighting thus helping control fires in the initial stages.
The Backpack is available with the option of usage along with a breathing apparatus. Backpack systems are ideal for use in industry, first intervention system in coal mine, fire trucks & emergency vehicles, offshore & marine.
Technical specification:
| Extinguishing agent tank | |
| Filling capacity | 12 litres |
| Material | Stainless steel |
| Working pressure | |
| Pressure | 7,5 bar |
| Propellant gas bottle | |
| Medium | Compressed air |
| Pressure cylinder | Filling pressure: 300bar |
| Volume: 2 litres | |
| Technical parameters | |
| Operating time | Appr. 25 sec. |
| Flow rate | 24 litres/min |
| Operating temperature | Tmin +5°C; Tmax +60°C |
| Carrying device | Ergonomically shaped |
| Extinguishing gun | |
| Changeover time | Appr. 3 sec. (jet to spray mode) |
| Lancing distance | Appr. 13 – 16m jet mode |
| Appr. 6 – 7m spray mode | |
| Ratings (extinguishing performance) | |
| A Fire Class | 55 A (as per EN3) |
| B Fire Class | 233 B (as per EN3) |
| IIB (EN 1866) (e.g.: with exting. agent Moussel C) | |
| Dimensions | |
| Weight empty | 35 kg |
| Dimensions (LxWxH) | Appr. x x mm |
